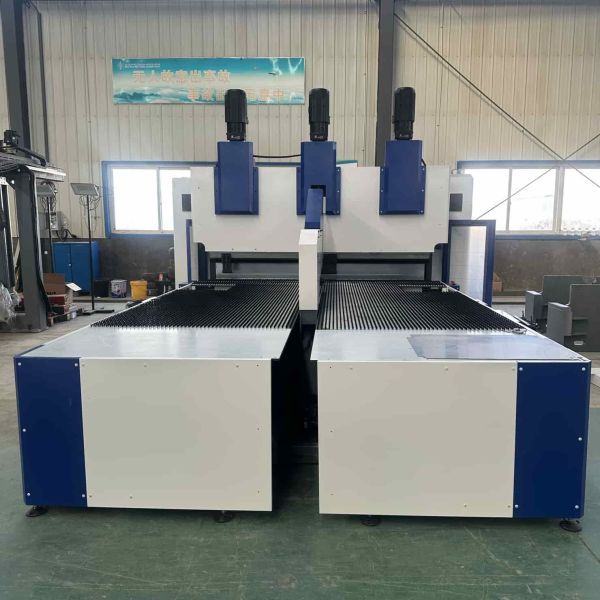

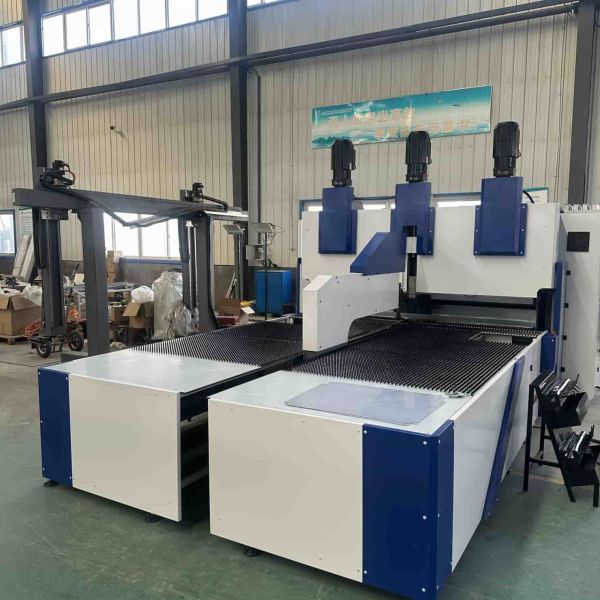

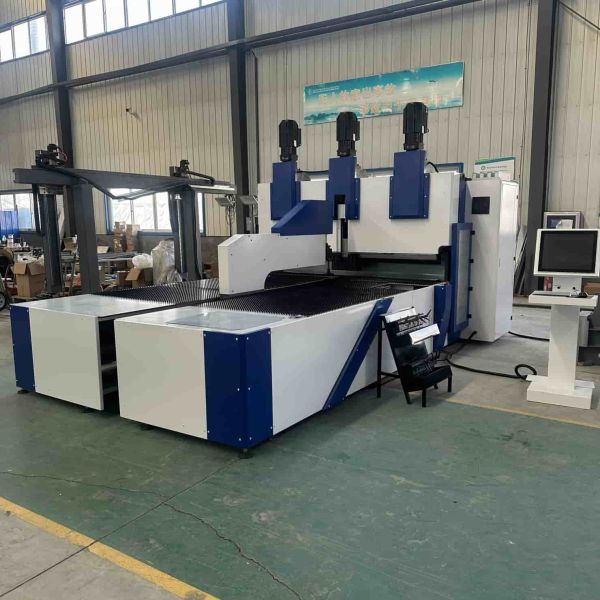

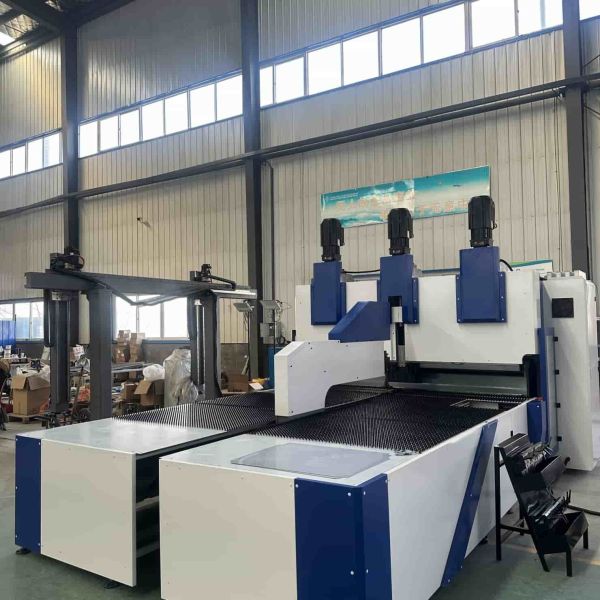

13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
Specifications
Brand Name :
D.K.HISTRON
Model Number :
HC-2500P
Certification :
CE,ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
15000-30000USD
Payment Terms :
T/T
Supply Ability :
20 SETS/MONTH
Delivery Time :
60 days
Packaging Details :
suitable for shipment
Productname :
CNC BENDING CENTER
Bendingcapacity :
Varies by model
Type :
Bending Machine
Speed :
Adjustable bending speed
Flexibility :
High
Bendinganglerange :
0° to 180°
Controlsystem :
CNC (Computer Numerical Control)
Precision :
±0.1mm
Safetyfeatures :
Emergency stop, safety guards
Automationlevel :
Fully automated
Description
Flexible Panel Bending Machine with Pressure Arm Feeding
High precision automated manufacturing bending center solution for versatile metal forming and shaping applications. Quick-clamp quick-release tool change with reinforced C-axis rotation. Ideal for high-mix low-volume production. Suitable for custom sheet metal shops and prototyping service centers.
Model Features
  • Pressure arm feeding system for high versatility
  • Customizable auxiliary folding knife and power hinge knife
  • Customized processing of workpiece bending height
  • Customized presser foot lifting function
  • High-speed motors for improved processing efficiency
Technical Parameters
Parameter HC-2500 HC-2500P
Feeding structure Pressure arm type Pressure arm type
Minimum internal dimensions for quadrilateral forming 180mm * 280mm 180mm * 280mm
Bending height 170mm (customizable) 170mm (customizable)
Average power About 2.9KW About 3.5KW
User operating environment Operation system above Win7 Operation system above Win7
Maximum bending thickness (Cold plate) 1.5mm 2.0mm
Maximum bending thickness (304 stainless steel) 1.0mm 1.5mm
Number of axles 13 13
Applications
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
Control System
The bending center control system employs a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system features an intuitive human-machine interface and supports graphical programming. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing. The motion control cards support 24-axis operation, with an expandable capacity up to 64 axes, and utilize EtherCAT bus control for high-precision motion control.
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
Operation Interface
The interface is simple, easy to learn, with good human-computer interaction.
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming 13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming 13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming 13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming 13-Axis Control CNC Panel Bender with 170mm Bending Height and 0.1mm Precision for Automated Metal Forming
Frequently Asked Questions
Can you arrange samples for me?
Of course, we provide free samples by customer's requirements.
What is the warranty period for the machine?
The warranty period for the machine is one year. Lifetime maintenance and upgrade services are provided after the warranty period.
Are all the machines standard?
No, customization is available. We can manufacture non-standard machines by customer's requirements.
What products do your machines can do?
Applications include: File cabinetry, Aluminum veneer wall industry, Stainless steel kitchenware industry, Refrigeration equipment industry, Chassis and Cabinet industry, Laboratory construction industry, Metal door industry and more.
What types of sheet materials can your machine bend?
Normally, carbon sheet, aluminum sheet, stainless sheet and galvanized sheet are available.
