MAY-2515 Stainless Plate Panel Bending Machine Aluminium CNC Sheet Metal Folder
MAY-2515 Stainless Plate Panel Bending Machine Aluminium CNC Sheet Metal Folder
MAY-2515 Stainless Plate Panel Bending Machine Aluminium CNC Sheet Metal Folder
MAY-2515 Stainless Plate Panel Bending Machine Aluminium CNC Sheet Metal Folder
Specifications
Brand Name :
MAZS
Model Number :
MAY-2515 stainless plate panel bender
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
T/T, L/C
Supply Ability :
50 - 60 sets per month
Delivery Time :
60 - 100 days
Packaging Details :
Standard packing for sea transportation
Price :
RMB/USD/EURO
Max. bending speed :
0.2 second/time
Max. bending width :
2500mm
Max. bending height :
170mm
rated voltage :
380v
Total motor power :
79Kw
average power :
about 2.9Kw
Max. bending thickness :
UST 515N/ mm2 304 stainless steel 1.5 mm
minimum panel thickness :
0 . 35mm
Description

MAY-2515 Stainless plate panel bending machine aluminium folding

Brief Introduction:

MAY-2515 Stainless plate panel bender adopts pressing arm loading method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.

Technical Parameters:

MAY-2515 Technical Parameters
Feeding structure Pressing arm
Work table structure brush
System minimum accuracy 0.001mm
Max bending speed 0.2 second/time
Max feeding speed 90m/min
Max.bending width 2500mm
Max.Bending size L 2500mm X W 1250mm

Max. Bending height

 170mm (The maximum bending height after customization can reach 300mm)
Min. Bending height 3mm
Min.arc radius 0.5mm
Machine size L565cm X W300cm X H340cm
Total weight About 19 tons
Max. Bending width UTS 515N/mm2 304 stainless steel 1.5mm
Min. Panel thickness 0.35mm
Four side forming min. Inner size About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size About 140mm
Axis 15

Real Folding Sheets Forming Display:

The stainless plate metal sheet panel bender bending center adopts a universal bending mold, and a set of molds can complete the bending of various shapes, such as the following shapes:

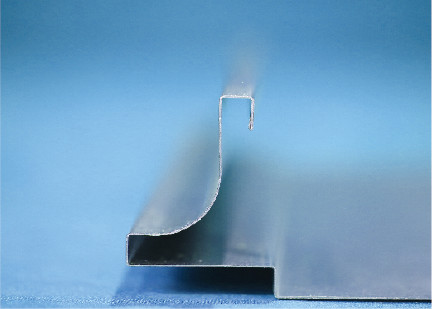

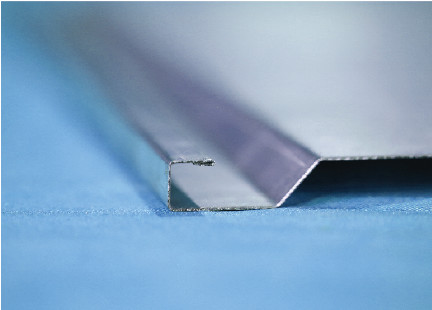

MAY-2515 Stainless Plate Panel Bending Machine Aluminium CNC Sheet Metal Folder Circular arc MAY-2515 Stainless Plate Panel Bending Machine Aluminium CNC Sheet Metal Folder Closed type

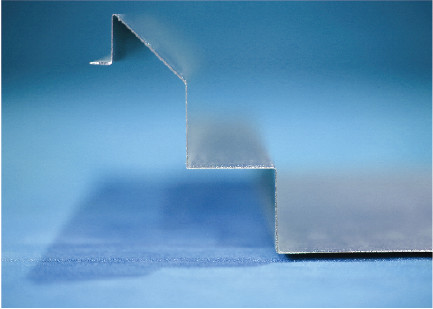

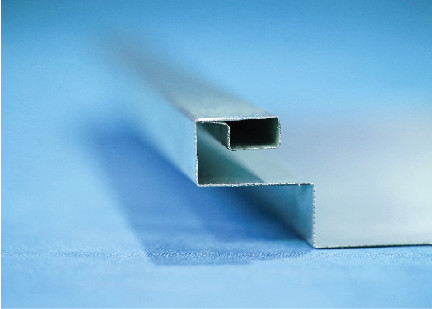

MAY-2515 Stainless Plate Panel Bending Machine Aluminium CNC Sheet Metal Folder Complex sheet MAY-2515 Stainless Plate Panel Bending Machine Aluminium CNC Sheet Metal Folder Continuous type

Support and Services:

We provide technical support and service for Automatic Sheet Metal Panel Bender.

Our technical support and service includes:

  • Answering technical questions about installation, operation, and maintenance
  • Providing troubleshooting assistance
  • Providing spare parts and replacement parts
  • Providing regular maintenance services

We also provide on-site technical support and service, if necessary.
