DDR4 UDIMM / ECC UDIMM
DDR4 UDIMM / ECC UDIMM
DDR4 UDIMM / ECC UDIMM
DDR4 UDIMM / ECC UDIMM
Specifications
Brand Name :
PANCUN
Certification :
CE / FCC / ROHS
Place of Origin :
Made In China
MOQ :
1
Payment Terms :
T/T
Description

Due to the current global shortage of DRAM chips, we cannot guarantee that the actual memory chips supplied will be identical to those shown in the picture. However, we assure you that the memory chips we use are of the highest-grade wide-temperature standard from leading international brands.


Introduction

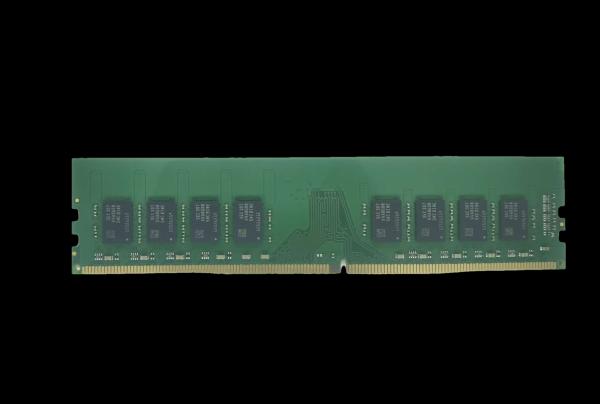

UDIMM (Unbuffered DIMM) is a JEDEC-compliant design applicable for desktop computers, industrial computers and embedded systems. Manufactured with the highest quality original DRAM chips, stringently tested for quality assurance and verified for compatibility, Pancun's UDIMMs are high performance memory modules that are highly stable and compatible.


DDR4-3200 MT/s is the newest generation of fast, performance-oriented DRAM modules optimized for the latest Intel® Xeon® Platinum, Gold, Silver and Bronze Scalable processors and 8th-generation Intel® Core™ i7/i5/i3 processors. The increased interface speed from 2400 MT/s to 3200 MT/s amplifies theoretical peak performance by 20% and gives a boost to the most critical computing applications in industries such as telecommunication infrastructures, networking storage systems, network-attached storage (NAS) servers, micro/cloud servers, and embedded systems like industrial PCs.



Specification
Model DDR4
Module Type UDIMM / ECC UDIMM
Speed(MHz ) 2133 / 2400 / 2666 / 3200
Capacity 2GB / 4GB / 8GB / 16GB / 32GB
Voltage 1.2V
Pin Count 288-pin
Dimension LxWxH (mm) 133.35mm(L) x 31.25mm(W) x 1.40mm(H)
Standard Operating Temperature 0℃~70℃
Extended Operating Temperature -20℃~80℃
Wide Temperature -40℃~85℃
Thickness of gold fingers 30μ
Recommended Application Factory Automation / Gaming / Healthcare / Internet of Things




Part Number
Specification Part Number
UDIMM 2GB 3200MHz PCD4U02G32H48WT
UDIMM 4GB 3200MHz PCD4U04G32H48WT
UDIMM 8GB 3200MHz PCD4U08G32H48WT
UDIMM 16GB 3200MHz PCD4U16G32H48WT
UDIMM 32GB 3200MHz PCD4U32G32H48WT
ECC UDIMM 2GB 3200MHz PCD4EU02G32H48WT
ECC UDIMM 4GB 3200MHz PCD4EU02G32H48WT
ECC UDIMM 8GB 3200MHz PCD4EU02G32H48WT
ECC UDIMM 16GB 3200MHz PCD4EU02G32H48WT
ECC UDIMM 32GB 3200MHz PCD4EU02G32H48WT

UDIMM 2GB 2666MHz PCD4U02G26H48WT
UDIMM 4GB 2666MHz PCD4U04G26H48WT
UDIMM 8GB 2666MHz PCD4U08G26H48WT
UDIMM 16GB 2666MHz PCD4U16G26H48WT
UDIMM 32GB 2666MHz PCD4U32G26H48WT
ECC UDIMM 2GB 2666MHz PCD4EU02G26H48WT
ECC UDIMM 4GB 2666MHz PCD4EU02G26H48WT
ECC UDIMM 8GB 2666MHz PCD4EU02G26H48WT
ECC UDIMM 16GB 2666MHz PCD4EU02G26H48WT
ECC UDIMM 32GB 2666MHz PCD4EU02G26H48WT


UDIMM 2GB 2400MHz PCD4U02G24H48WT
UDIMM 4GB 2400MHz PCD4U04G24H48WT
UDIMM 8GB 2400MHz PCD4U08G24H48WT
UDIMM 16GB 2400MHz PCD4U16G24H48WT
UDIMM 32GB 2400MHz PCD4U32G24H48WT
ECC UDIMM 2GB 2400MHz PCD4EU02G24H48WT
ECC UDIMM 4GB 2400MHz PCD4EU02G24H48WT
ECC UDIMM 8GB 2400MHz PCD4EU02G24H48WT
ECC UDIMM 16GB 2400MHz PCD4EU02G24H48WT
ECC UDIMM 32GB 2400MHz PCD4EU02G24H48WT


UDIMM 2GB 2133MHz PCD4U02G21H48WT
UDIMM 4GB 2133MHz PCD4U04G21H48WT
UDIMM 8GB 2133MHz PCD4U08G21H48WT
UDIMM 16GB 2133MHz PCD4U16G21H48WT
UDIMM 32GB 2133MHz PCD4U32G21H48WT
ECC UDIMM 2GB 2133MHz PCD4EU02G21H48WT
ECC UDIMM 4GB 2133MHz PCD4EU02G21H48WT
ECC UDIMM 8GB 2133MHz PCD4EU02G21H48WT
ECC UDIMM 16GB 2133MHz PCD4EU02G21H48WT
ECC UDIMM 32GB 2133MHz PCD4EU02G21H48WT
