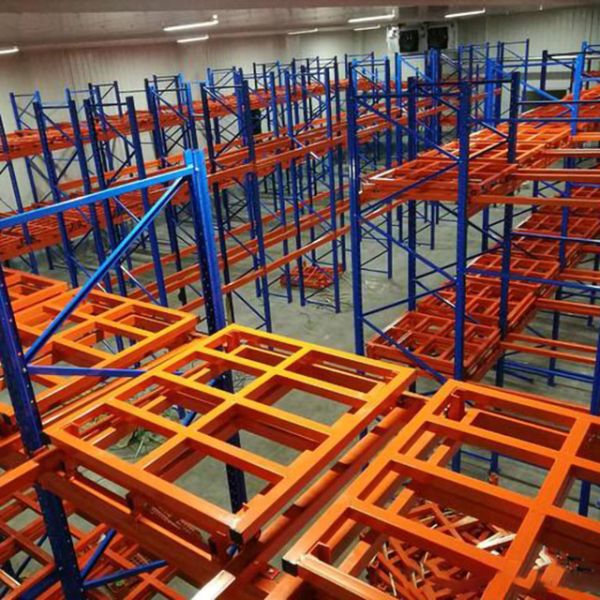

OEM Orange Push Back Pallet Racking - 4 Deep LIFO High Density Storage System

Push back pallet racking is a high density LIFO storage solution. This OEM orange version stores pallets 4 deep in a single lane using nested steel carts that ride on inclined rails, allowing forklifts to load and unload from one aisle while maximizing warehouse cube utilization.

Key Features

• 4 pallets deep per lane with LIFO stock rotation for medium to high turnover goods
• OEM custom design: frame size, beam length and pallet depth built to your warehouse drawings
• RAL2004 orange electrostatic powder coated finish for long lasting corrosion protection
• Nested steel cart system glides smoothly on inclined rails, no pallet conveyor or power required
• 3000 kg beam capacity, Q235B structural steel with bolted connection for fast on-site assembly
• CE and ISO9001 certified, widely used in cold storage, FMCG, food and beverage and logistics

•















Technical Specifications

OEM Service

As an experienced OEM racking factory, we support custom dimensions, custom colors, special beam and upright profiles, and logo printing. Send us your warehouse layout for a free design proposal.

Applications

Cold storage, food and beverage, FMCG, pharmaceutical, e-commerce logistics and other industries storing limited SKUs with high pallet turnover.

FAQ

Q: What is push back racking?

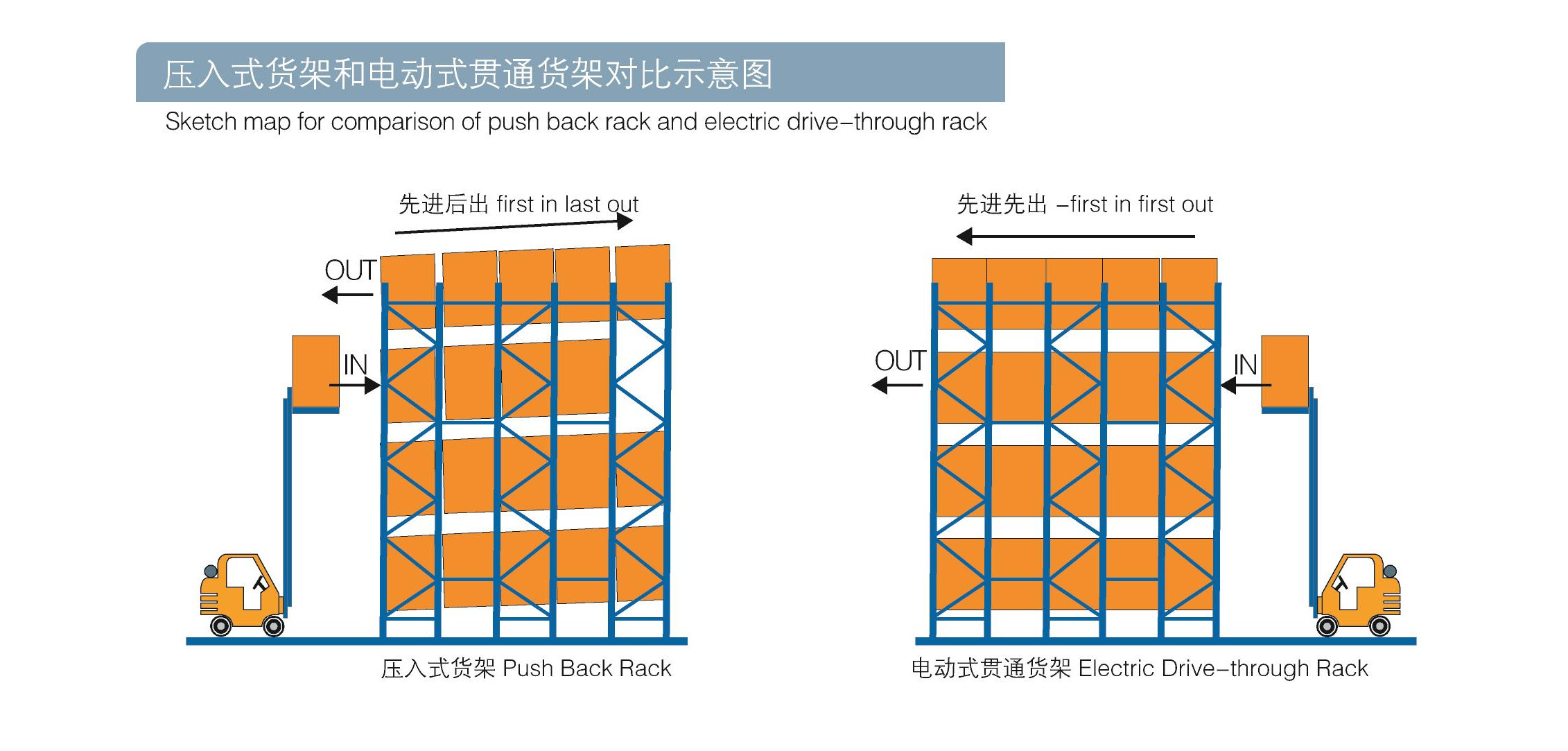

A: Push back racking is a high density LIFO storage system where pallets are stored in depth on nested carts that ride on slightly inclined rails. Each new pallet pushed into the lane pushes the previous pallet back one position.

Q: How many pallets can be stored per lane?
A: This system supports 4 pallets per lane, typically 2 to 6 pallets deep depending on the layout and forklift type.

Q: Can the color and size be customized?
A: Yes. We are an experienced OEM racking factory. Frame size, beam length, orange RAL2004 color and logo printing can all be customized according to your drawings and requirements.
