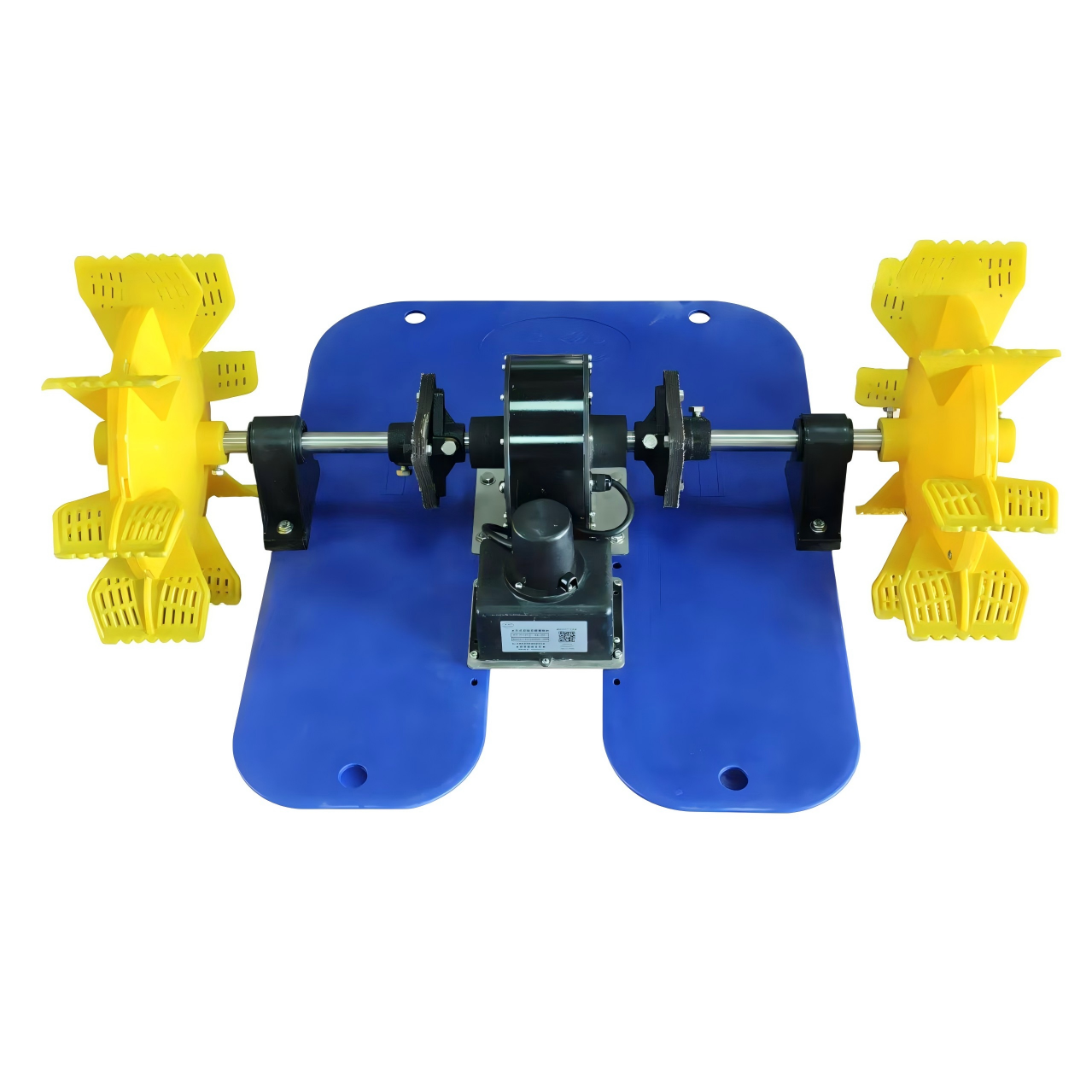

Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Specifications
Price :
$310-350
Voltage :
380 V, 220 V, AC380V/220V
Impeller diameter :
650mm
Certification :
CE
Power :
0.75KW
Brand Name :
Shuijingling
Model Number :
YC-0.75 (2-Impellers)
Rated speed :
170RMP/190RMP
Payment Terms :
T/T
Weight :
25KG
Place of Origin :
Hubei, China
MOQ :
1
Floating body material :
PE (polyethylene)
Description
Waterwheel Type Paddle Wheel Aerator with Gearbox Variable Frequency Motor
The soft start design greatly buffers the instantaneous torque pressure on the bracket and overall fuselage structure, avoiding structural deformation, loosening and fatigue damage caused by sudden startup, and prolonging the overall service life of the equipment frame.
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Main Configuration
One 0.75KW variable frequency motor, one gearbox assembly, one stainless steel frame, two transmission shafts, two floating boats, two impellers, one motor waterproof cover.
This compact waterwheel is 550 watts, lightweight, energy-efficient, and requires no maintenance. It saves 20% more electricity than ordinary waterwheels and has excellent water-pushing effect with high oxygenation capacity. The most distinctive feature is that it won't malfunction when there is a phase missing.
Customer Solution
A customer in Mali has 8 fish ponds (5x5 meters each) for raising Tilapia and catfish in fresh water. In Africa where electricity is limited, our waterwheel is the ideal choice due to its energy efficiency and reliability.
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Technical Specifications
Motor Power 0.55KW/0.75KW(1HP)
Overall Machine Weight 25KG
Floating Body Material PE (polyethylene)
Floating Body Volume 0.06*3m 0.06*3m
Rated Speed 170RMP/190RMP
Voltage AC380V/220V
Number of Impellers 2
Impeller Diameter 650mm
Number of Blades 16
Key Features
  • Multi-gear speed regulation, high efficiency, frequency conversion and energy saving
  • Ultra-wide voltage operation, lack of phase intelligent alarm does not stop
  • With lightning protection, impeller winding overload and other protection functions
  • Soft start does not damage fish and shrimp and fixed devices
  • Stainless steel bracket and new plastic floating boat
  • Online version with remote control, smart phone alarm
  • The whole machine is light, simple control, easy installation
  • Direct drive and maintenance-free
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
Aquaculture Paddle Wheel Aerator with Gearbox Variable Frequency Motor 380V/220V
