Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Specifications
Place of Origin :
Shandong, China
Brand Name :
DEYI
Condition :
New
Processing Type :
Foaming Machine, Foaming Machine
Product Type :
Foam Net
Machine Type :
EPS Shape Moulding Machine
Voltage :
380V50Hz
Dimension(L*W*H) :
5000*2400*3400mm, 5000*2400*3400mm
Power (kW) :
15
Weight (KG) :
6200 KG
Warranty :
1 Year
Key Selling Points :
High Productivity
Showroom Location :
Egypt, Viet Nam, Brazil, Spain, Thailand, Morocco, Kenya, Argentina, Chile, Romania, South Africa, Ukraine, Kyrgyzstan
Applicable Industries :
Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Construction works , Food & Beverage Shops, Other
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, PLC, Pressure vessel
Product Name :
EPS Foam Box
Automatic :
Fully Automatic Production
Raw material :
Expandable Polystyrene
Mould size :
1800*1700mm
Maximum product size :
1620 x1420 x350 mm
Max matrix opening :
1400mm
Steam pressure :
0.5-0.7Mpa
Compressed air inlet :
80mm
Packaging Details :
standard package
Port :
Qingdao port
Supply Ability :
2000 Set/Sets per Year
Price :
$47,000.00/sets 1-2 sets
Description
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Company profile
Longkou DEYI Machinery Equipment Co., LTD. specializes in foam packaging industry for more than 30 years, has rich industry experience, professional pre-sales and after-sales team, for customers efficient production escort。
We produce EPS Vacuum Shape Molding Machine, EPS foam box machine, EPS block Molding Machine, ICF block machine, EPS outside wall thermal insulation machine,EPS intermittent automatic pre-expander machine, EPS pre-expander Machine, EPS cutting machine, EPS foam cup making machine and so on. We provide Turn-key service for EPS project.
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Equipment specification
Item
Unit
DY1200
DY1400
DY1700
DY1800
DY2000
Mold Dimension
mm
1200*1100
1400*1300
1700*1600
1800*1700
2000*1900
Max Dimension of Products
mm
1000*950*330
1200*1150*330
1500*1450*330
1620*1480*330
1850*1650*330
Max Interval
mm
1200
1400
1400
1400
1400
Min Interval
mm
150
210
210
210
210
Speed of Procession
mm
160
160
120
120
120

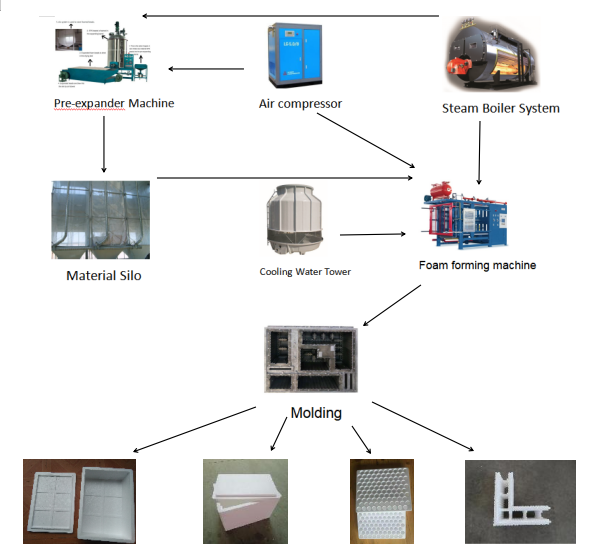

Equipment production process
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine

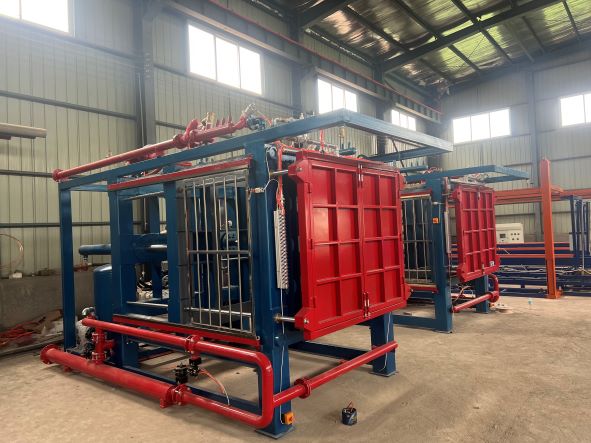

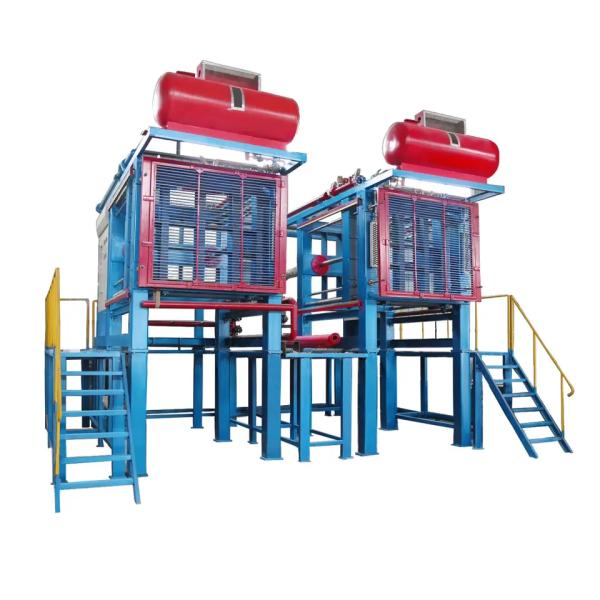

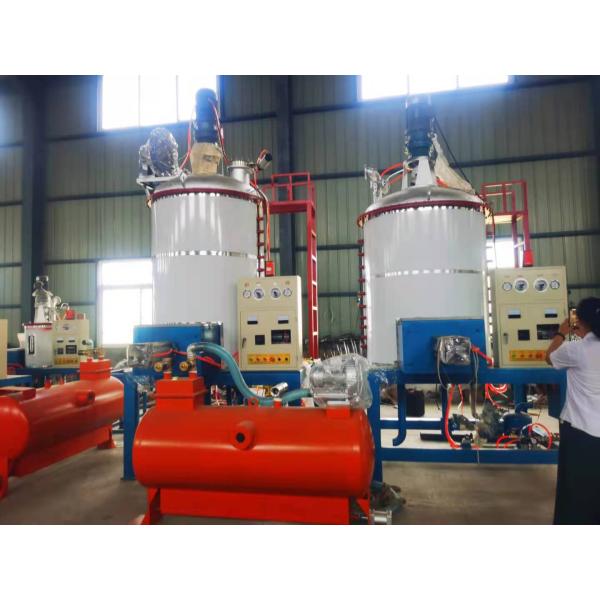

Equipment picture
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Equipment introduction
1. It adopts Japan Mitsubishi Corporation PLC, imported touch screen, full English display, graphical interfaces intelligent control, achieve man-machine conversation.

2. It can carry out full automatic, semi-automatic, middle startup and manual operation.

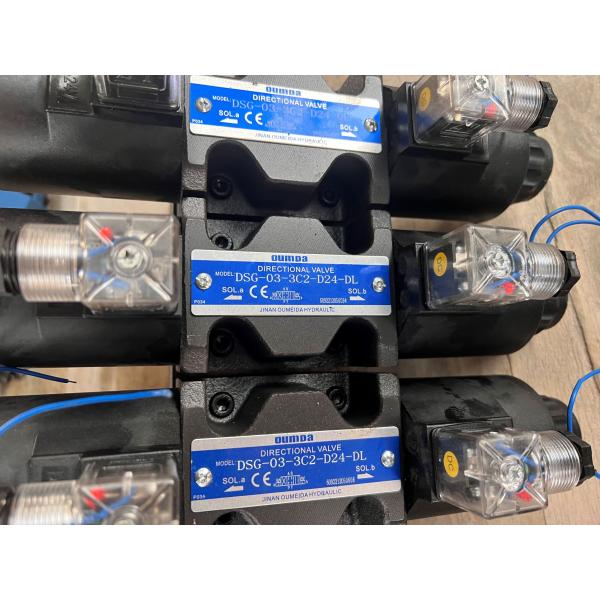

3.Taiwan AIRTCA hydraulic system is stable run, low noise, high clamping force.

4. Vacuum system accelerates product shaping speed, shorts the cooling time, reduce product water content.

5.Optimized design is clear and easy with high intensity and high performance-price rate.

6.This machine can carry out heating, cooling, feeding and ingot stripping process to adapt to different EPS products.

7.Perfect malfunction checkout system and motor protecting system which guarantees safe running of equipment.
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine

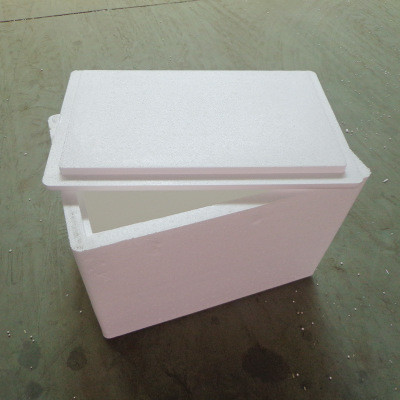

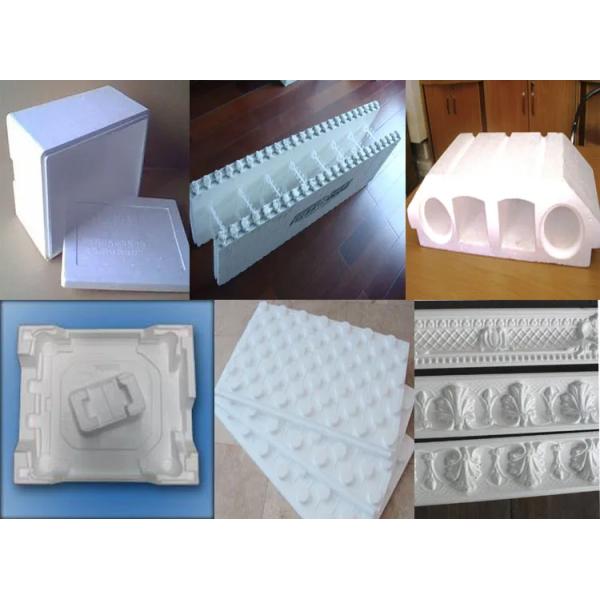

Workable product
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine

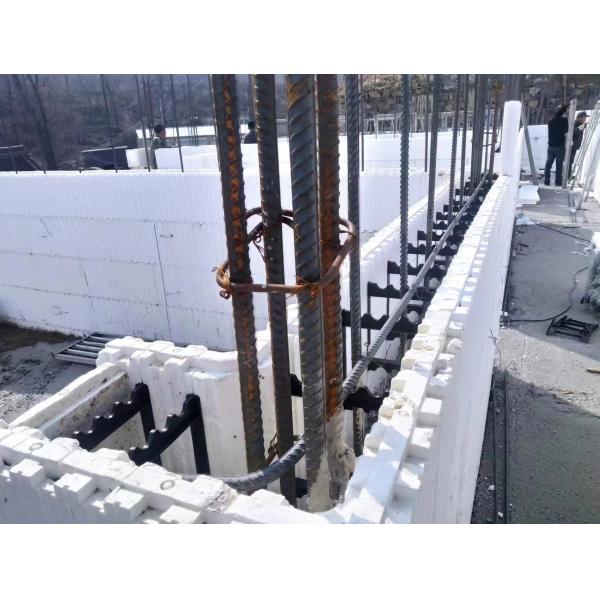

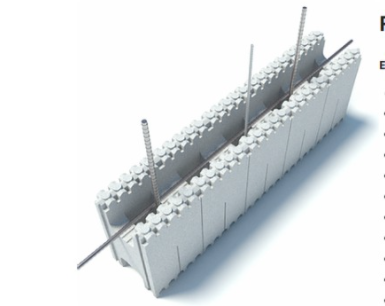

ICF board uses
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine

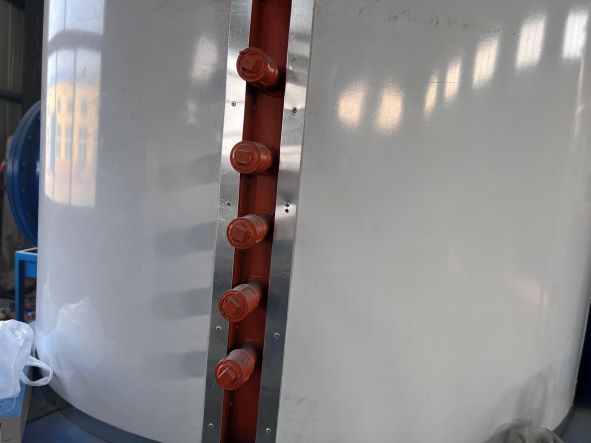

Equipment details
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine

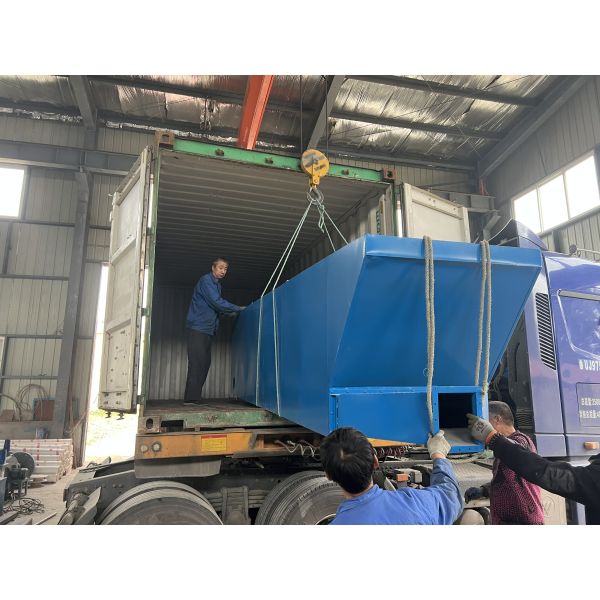

Equipment delivery photos
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Our team
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Customer group photo
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
Relevant certificate
Expandable Polystyrene Machine Icf Molding Eps Foam Fish/Fruit Box Making Machine
FAQ
1.Q：Why I choose your company?
A：a) We are the Leading foam machine Manufacturer in China.
b) We have made foam machine about 30 years with strong experience and advanced technics
c) Best Quality & Best Service with Competitive price.
d) 100% inspection Before Shipment, and got CE certificate.
e) We have Professional technical team, supply 24hours service.
2.Q：Can I customize the eps products I want?
A：Of course, we can customize the mold according to your product size specifications, and produce the product you want.
3.Q：What energy can I use?

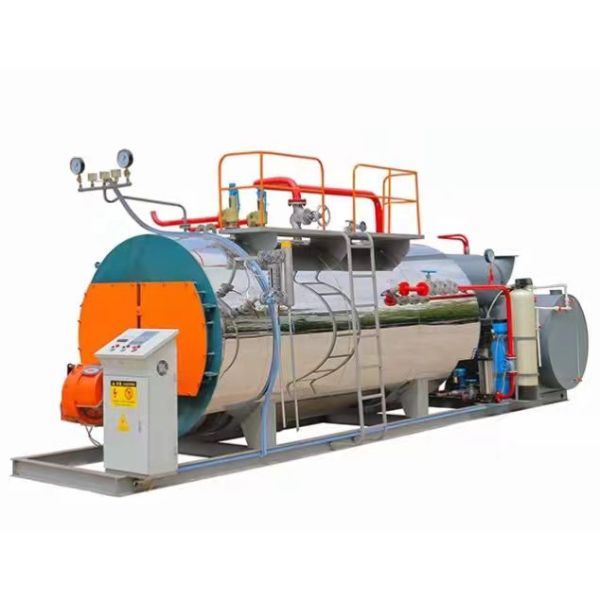

A：We are equipped with steam boiler, you can use natural gas, diesel, heavy oil and other energy for the boiler.
4.Q：How long is the production cycle？
A：Generally for 90-120 seconds a mold
5.Q：How many products can be produced in one mold?
A：According to the size of the product and the size of the mold to determine the number of products, you can send the size of the product to us, we will recommend the most suitable model for you.
