air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
Specifications
Condition :
New
Plastic Processed :
PE, Lldpe, LDPE
Application :
Film
Screw Design :
Single-screw
Screw Material :
38CrMoALA
Screw diameter (mm) :
65
Screw L/D Ratio :
30:1
Screw Speed (rpm) :
48 rpm
Showroom Location :
United Kingdom, United States, Italy, Uzbekistan
Place of Origin :
Shandong, China
Brand Name :
DEYI
Voltage :
380V
Dimension(L*W*H) :
12m*2m*2m
Power (kW) :
40
Weight :
6.5 KG
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Hotels, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction works , Energy & Mining, Food & Beverage Shops
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Gear, Pressure vessel
Machinery Test Report :
Provided
After-sales Service Provided :
Engineers available to service machinery overseas
Machine :
sheet making line
Layers :
Two, three, five and seven layers
Product :
PE air bubble film/cushion film
Width :
1000-2500mm
Processing Type :
Extruding Machine
Raw material :
LDPE
Film width :
adjustable
Power :
40-70KW
Keywords :
air bubble film machine
Packaging Details :
Three Layers LDPE Air Bubble Making Machine
export standard packing
Port :
Qingdao
Supply Ability :
100 Set/Sets per Year
Price :
$25,000.00/sets 1-1 sets
Description
Products Description
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
pe air bubble three layer stretch wrap cushion film plastic packaging making machine
Polyethylene air-bubble film(also called polyethylene bubble film).which is divided into two kind : ordinary polyethylene air-bubble flim and composite polyethylene air-bubble film.This machine can produce Two layers(single side).

Bubble film also has such advantages as good corrosion resistance and transparency, etc. So it has been widely used for packing household wares, postal parcel ,precision instrument, bicycle, polyurethane furniture, etc.
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
Machine Parmeter
Power supply
3 phase/ 380V/ 50Hz
Total power
About 60kw
Running power
25-30KW
Main motor
8.5KW
Compressed air
0.2~0.4 m3/min,0.6Mpa
Total weight (approx)
4.2-11.5T

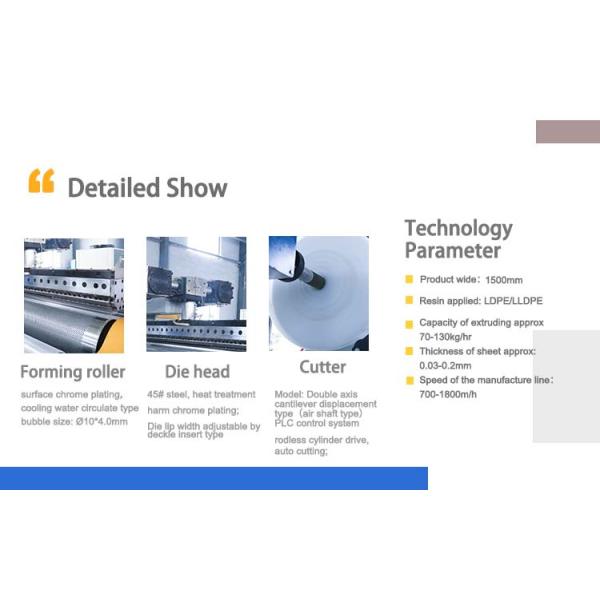

Detailed show
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line

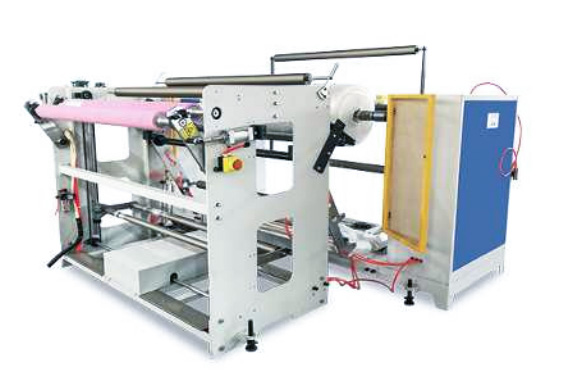

Automatic cutter
Auto cutting and winding, PLC touch screen control.
Auxiliary traction device to avoid the bubble film loosing when cutting.
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line

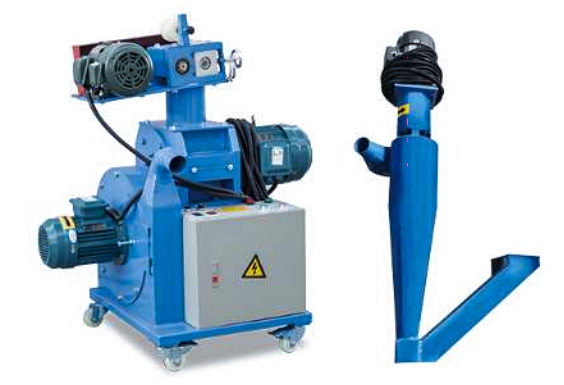

Recycling unit
Cut the trimmed edge online into small pieces then recycle it into the screw for reusing.
Laminating unit
Can Laminate thin film such as aluminum foil, PE foam sheet, Kraft paper, nonwoven, PO film etc, on to the bubble film.
Magnetc powder tension control system.
Edge position correction system.
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
Mould
Adjusting film width by internal deckles during machine non-stop operation.
More uniform film thickness.
No material leakage.
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line

Advantages

1.Siemens brand motor
2.Schneider brand electric appliance
3.Auto cutter and auto feeding roller
4.Adopt hard tooth surface gear box
5.The forming roller is special design and adopts whole type (inside filter is together with roller)
6.Adopt the cooling roller for cooling forming roller and rubber roller
Type of production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
air bubble film wrap making machine bubble film extruder manufacturing bubble sheet production line
Service
01.Provide on-site installation guildance.
02.Be responsible for debugging the suppliled equipment until it passes the acceptance
03.Be responsible for the pre-job operation and maintenance training
04.Long-term guarantee of spare parts supply
05.The free warranty of the equipment is one year (except the damage caused by the user's improper
