1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
Specifications
Mixer Type :
Paddle
Barrel Volume (L) :
1000,2000,3000
Material Processed :
Chemicals
Max. Loading Volume (L) :
3000 L
Weight (KG) :
1000 KG
Condition :
New
Product Type :
Putty,Paste,Paint
Application :
Liquid with Suspended Solids
Place of Origin :
Henan, China
Voltage :
380 V
Power (kW) :
11 kW
Warranty :
1 Year
Key Selling Points :
Automatic
Applicable Industries :
Manufacturing Plant, Building Material Shops, Construction works
Showroom Location :
None
Marketing Type :
New Product 2024
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, PLC
Price :
$4,760.00/sets 1-4 sets
Description
Over view
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
Products Description
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer

Equipment Introduction:

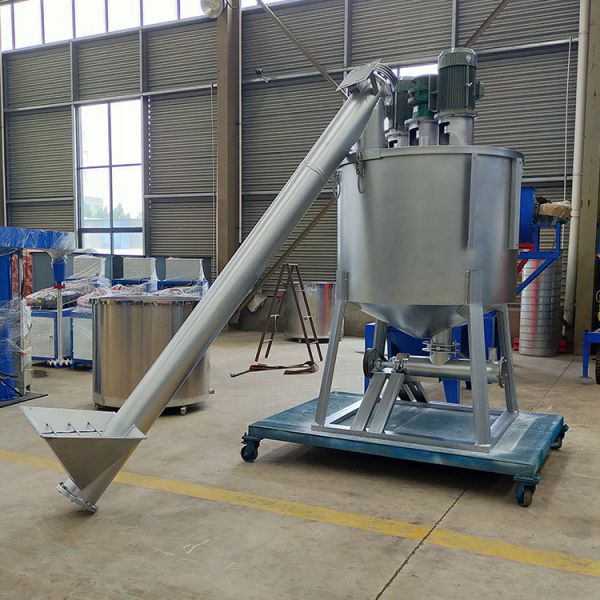

The vertical putty mixer consists of motor, reducer, cylinder, mixing blade, electrical cabinet, etc. Screw strap design, with a small gap between the mixing blades and the barrel wall, can effectively remove adhesive on the barrel wall. Dry powder raw materials are fed by a screw elevator. The machine mixes quickly, has good mixing effect, and is easy to operate and maintain. The vertical putty mixer can be used to mix and stir putty paste and other building coatings, chemical raw materials, food, etc.
Product name
VERTICAL PUTTY MIXER
Raw material
Putty paste and other building coatings, chemical raw materials, food, etc.
Applicable Industries
Construction industry, food industry, chemical industry and other industries
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty
1 Year
Place of Origin
Henan, China
Key Selling Points
High Productivity
Condition
New
Function
Multifunctional
After-sales Service Provided
Engineers
MOQ
1 Set
Package
Wooden Case
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
Product Detatil
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer

01

Power control box
—
Control the operation of lifting, mixing, discharging, and emergency stop buttons
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer

02

Copper wire motor
—
High power,
smooth operation
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer

03

Screw discharge system

—
Convenient and practical discharge
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
Model
1 ton
2 ton
3 ton
Total height
2.9m
3m

Barrel diameter and height
1.2m*1.1m
1. 4m*1.3m
1.6m*1.5m
Cone diameter and height
1.2m*0.5m
1.4m*0.5m

Tank thickness
Diameter 75mm
Diameter 75mm

Shaft tube 5mm thick
4kw*1(6 poles)960r/min
15kw*2(6 poles)
15kw*2(6 poles)
Dispersion motor three sets of 2
Number 7
Number 8
Number 8
Reducer (slow mixing)
7. 5kw(20r/min)
15kw(20r/min)
15kw(20r/min)
Main mixing motor (scraping motor slow mixing)
3kw
3kw
3kw
Screw discharge motor
3kw
3kw
3kw
Feeding tube diameter and length
219mm*3.6m
219mm*3.6m
219mm*3.6m
Charging motor
4kw
4kw
4kw
Channel base
Number 10
Number 10
Number 10
FAQ
1 Ton 2 Tons 3 Tons Small Electric Vertical Automatic Measurement And Weighing Putty Mixer Paste Mixer
Q: Are you manufacturer?
A: Yes,we are manufacturer with more than 20 year's experience.
Q: Can you ship the machine to my address?
A: Yes,we could use DHL to delivery the machine while the transport cost will be not cheap. And it is suitable for this
kind of machine.
Q: Where are you?Can we go to China and visit your factory?
A: Yes, of course. We are in Henan, China. Welcome to our factory.
Q: Do you have manual with the machine?
A: Yes,of course. It is in English version.
Q: Can you offer us the necessary paper to do the customs clearance?
A: Yes, of course. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF
terms),insurance policy(if CIF terms), also CO if you need.
