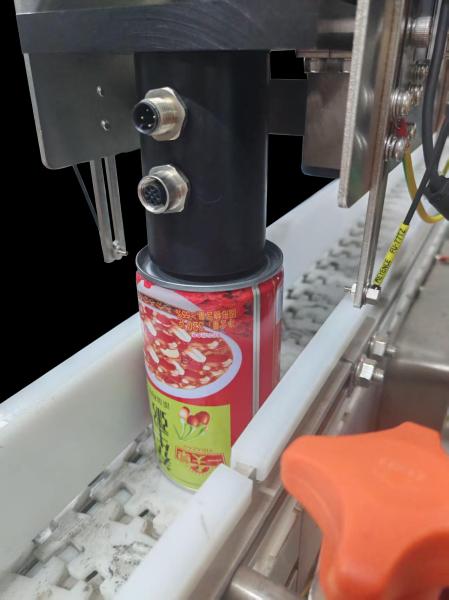

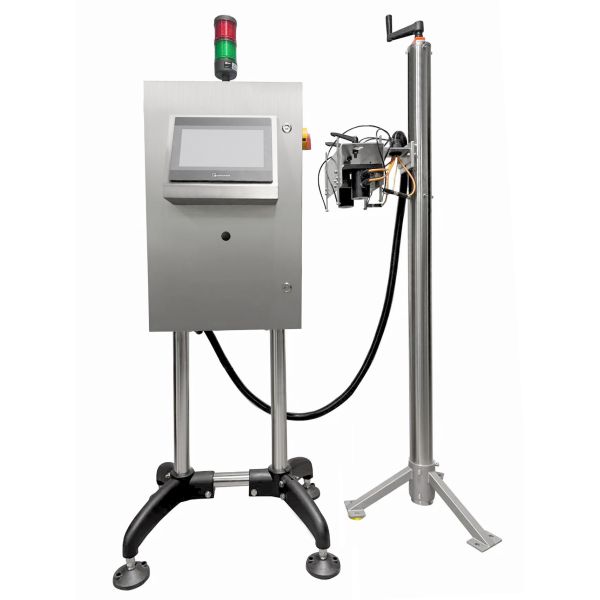

Acoustic Sensor
Acoustic Sensor
Acoustic Sensor
Acoustic Sensor
Specifications
Model Number :
VP1000-A
Container Types :
Glass/Metal
Primary Inspection :
Vacuum/Pressure
TDLC Sensor :
N
Sensor Mounting :
Floor/Conveyor
Sensor Construction :
Stainless Steel
Inspection Speed :
1,200 Containers/Minute Maximum
Line Space Requirement :
30.5 cm
Description
Acoustic technology is used to measure pressure or vacuum in containers with metal closures that do not have a measurable lid deflection. The sensor works by applying a “dong”to the top of each container lid using an electromagnetic pulse which excites the closure.The lid vibrates at a natural resonant frequency “dong” based on internal pressure or vacuum. The resultant “do” signal is sensed by a microphone. The Digital Signal Processor (DSP) produces a real-time signal spectrum and calculates the resultant frequency of the “dong”for that lid. The frequency is then compared to user set limits. Containers with a frequency outside these limits are rejected.
Send your message to this supplier
Send Now

Acoustic Sensor

Ask Latest Price
Watch Video
Product Detail
Model Number :
VP1000-A
Container Types :
Glass/Metal
Primary Inspection :
Vacuum/Pressure
TDLC Sensor :
N
Sensor Mounting :
Floor/Conveyor
Sensor Construction :
Stainless Steel
