Customizable spray bottle 30ml-120ml capacity lightweight and corrosion-resistant aluminum alloy material
Customizable spray bottle 30ml-120ml capacity lightweight and corrosion-resistant aluminum alloy material
Customizable spray bottle 30ml-120ml capacity lightweight and corrosion-resistant aluminum alloy material
Customizable spray bottle 30ml-120ml capacity lightweight and corrosion-resistant aluminum alloy material
Customizable spray bottle 30ml-120ml capacity lightweight and corrosion-resistant aluminum alloy material
Customizable spray bottle 30ml-120ml capacity lightweight and corrosion-resistant aluminum alloy material
Customizable spray bottle 30ml-120ml capacity lightweight and corrosion-resistant aluminum alloy material
Customizable spray bottle 30ml-120ml capacity lightweight and corrosion-resistant aluminum alloy material
Specifications
Brand Name :
OEM/ODM
Model Number :
PW004
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600000 pcs per months
Delivery Time :
15 - 20 DAYS
Packaging Details :
Carton
Service :
OEM .ODM
Capacity :
30-120ml
Logo :
Acceptable Customer's Logo
Spray Pattern :
Fine mist
Disposal Container :
twist tie
Application :
Personal Skin Care Packaging
Portable :
Yes
Bottle Shape :
Cylindrical
Lightweight :
Yes
Description

1. Basic parameters
Capacity: 30ml / 50ml / 100ml / 120ml (common specifications, 5%-10% space should be reserved for the actual filling volume)
Material:

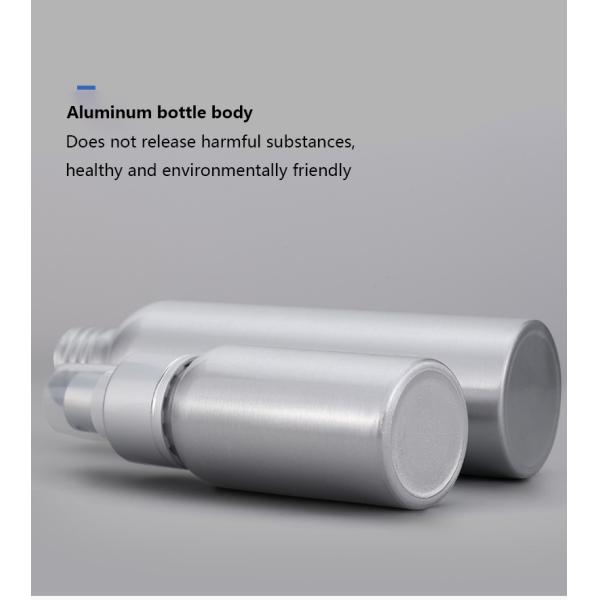

Bottle: Aluminum alloy (usually AL3003 or AL5052, lightweight and corrosion-resistant)
Coating: optional internal coating (epoxy resin, etc.) or external coating (matte/gloss paint)
Valve system: plastic or metal valve (needs to be compatible with the contents, such as alcohol resistance, oil resistance, etc.)

2. Spray system parameters

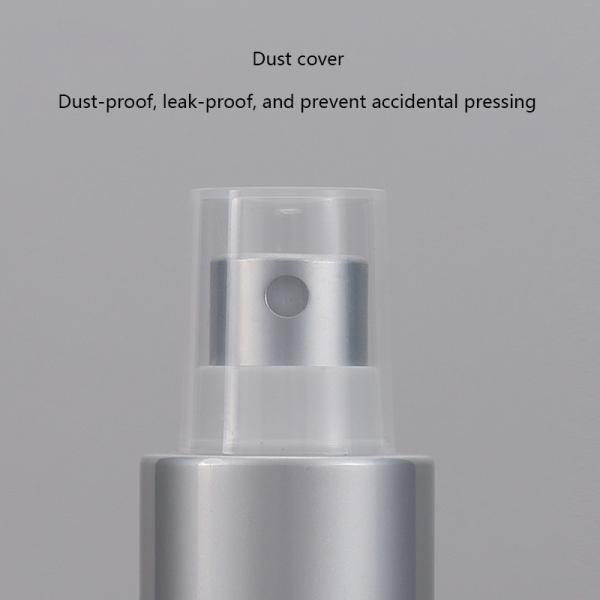

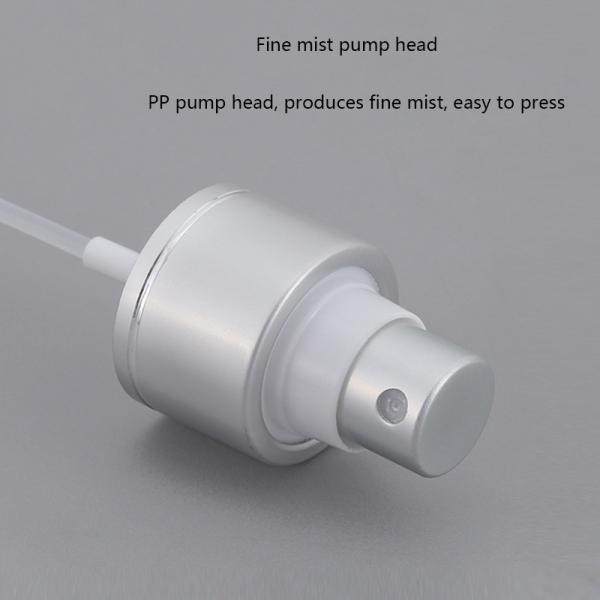

Nozzle type:
Standard spray (atomization), fine mist, foam nozzle, etc.
Trigger type (trigger nozzle) or press type (actuator)
Nozzle diameter: 0.2-0.5mm (affects the atomization effect)
Spray volume: 0.1-0.3ml/time (depending on the valve design)
Valve tightness: Need to pass the leakage test (usually ≥0.8MPa air pressure without leakage)

3. Performance standards
Pressure resistance: ≥0.8-1.2MPa (to ensure safety and sealing)
Temperature range: -10℃~50℃ (to avoid high temperature deformation or low temperature brittle cracking)
Compatibility: It is necessary to mark whether it is suitable for water-based, oil-based, alcohol or flammable liquids

Product Parameters
No. LB23 LC23 LD23 LE23 LF23
Shoulder test 45ml 58ml 104ml 134ml 260ml
Printing height 40mm 56mm 75mm 100mm 138mm
Girth 110mm 110mm 126mm 126mm 150mm
