Lightweight and Breakage-Resistant Plastic Bottle for Non-Phototoxic Contents
Lightweight and Breakage-Resistant Plastic Bottle for Non-Phototoxic Contents
Lightweight and Breakage-Resistant Plastic Bottle for Non-Phototoxic Contents
Lightweight and Breakage-Resistant Plastic Bottle for Non-Phototoxic Contents
Lightweight and Breakage-Resistant Plastic Bottle for Non-Phototoxic Contents
Lightweight and Breakage-Resistant Plastic Bottle for Non-Phototoxic Contents
Specifications
Brand Name :
OEM/ODM
Model Number :
XG008
Certification :
ISO9001
Place of Origin :
China
MOQ :
10000
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600000 pcs per months
Delivery Time :
15 - 20 DAYS
Packaging Details :
Carton
Customization :
Can be customized with logo and branding
Logo :
Customized
Capacity :
3-30ml
Value :
Bottles
Internal Liner :
Modify epoxy phenolic resin
Shape :
Round
Transparency :
Transparent or opaque options available
Sealing :
Leak-proof and airtight
Durability :
High
Printing :
Customized
Color :
Transparent
Description

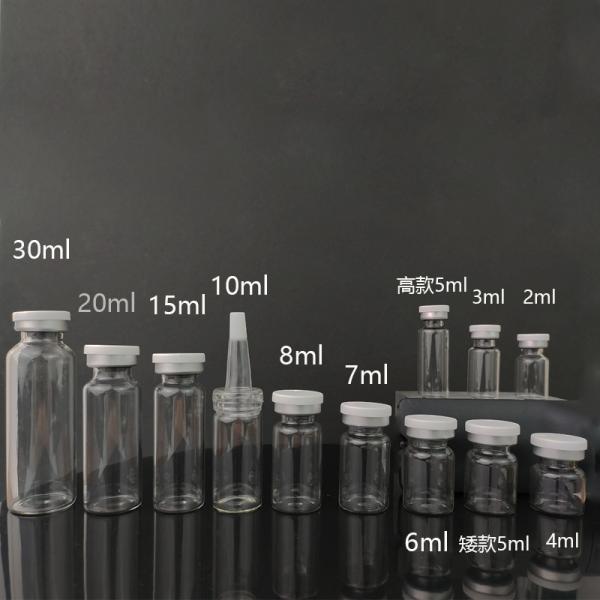

Project 10 ml vial 30 ml vial
Standard capacity 10ml 30ml
Material Borosilicate glass (Grade I/Grade III), PET (plastic) Same as above
Bottle diameter Approximately 22 - 25 mm Approximately 28 - 32 mm
Height of the bottle Approximately 45 - 50mm About 60 - 70 mm
Bottle mouth specification General 20mm (with butyl rubber stopper/aluminum cap) Same as left or custom 24mm
Wall thickness 0.0 - 1.2mm (glass) 1.2 - 1.5 millimeters (glass)

1. Material Selection
Glass vials (main choice)
Borosilicate glass grade I:
Resistant to acids and alkalis, with strong thermal shock resistance (suitable for freeze-drying process), high transparency.
Complies with the standards of the Chinese Pharmacopoeia, USP/EP, and is used for injectable drugs.
Borosilicate glass grade III:
Lower cost, suitable for oral liquids, non-injection purposes (such as health supplements, freeze-dried powders).
Plastic vials (PET/COP)
Advantages: Lightweight, not prone to breakage, suitable for travel-sized or non-phototoxic contents.
Disadvantages: High permeability, requires aluminum foil bags for protection during long-term storage.
2. Key Component Parameters
Component 10ml Parameter 30ml Parameter

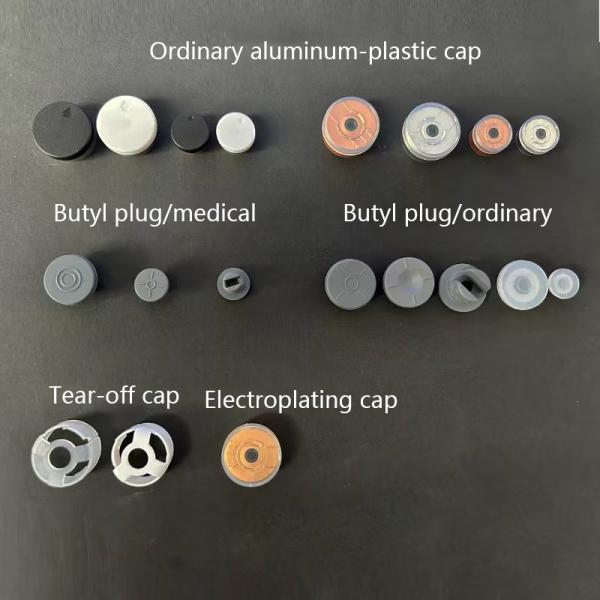

Stopper 20mm Butyl Stopper (halogenated/non-halogenated) Same as above or 24mm
Aluminum Cap 20mm Open Aluminum Cap (pull-off/ordinary) Same as above or 24mm
Plastic Cap Selectable anti-theft ring or child safety lock design Same as above
3. Special Process Requirements
Aseptic Treatment: Sterilization by gamma rays or heat removal from a high-temperature oven (a sterilization certificate must be provided).
Low Temperature Resistance: The vials used for freeze-drying must not rupture at -80℃ (glass material preferably grade I).

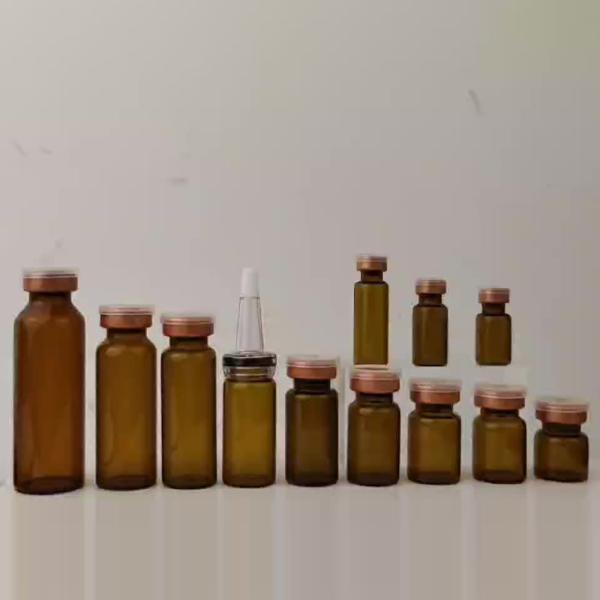

Light Resistance: Optional amber glass or coated with a light-protective film.
Printing: Silk-screening of scale lines and brand logos (must be resistant to high-temperature disinfection).
