High Energy Density Thin Lithium Polymer Battery PAC3590135 3.7V 4500mAh For Tablet
High Energy Density Thin Lithium Polymer Battery PAC3590135 3.7V 4500mAh For Tablet
High Energy Density Thin Lithium Polymer Battery PAC3590135 3.7V 4500mAh For Tablet
High Energy Density Thin Lithium Polymer Battery PAC3590135 3.7V 4500mAh For Tablet
Specifications
Brand Name :
ODM
Model Number :
PAC3590135 3.7V 4500mAh
Certification :
IEC62133, UN38.3, MSDS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30,000pcs/day
Delivery Time :
15-20 days for samples, 25-35 days for mass production
Packaging Details :
Plastic Tray, Standard Export Carton
Material :
Lithium ion Polymer
Cell Model :
3590135
Nominal Voltage :
3.7V
Nominal Capacity :
4500mAh
Resistance :
24mΩ
Cut Off Voltage :
2.75V -4.2V
Key Words :
Thin Lithium Polymer Battery, Battery 3.7V, 3.7V 4500mAh
Application :
Tablet
Cycle :
500 times
Description

Thin Lithium ion Polymer Battery PAC3590135 3.7V 4500mAh for Tablet
3590135 4500mAh lithium ion polymer battery, with ultra thin size, high density, long cycle life, it is good for using in tablet.

We have more than 1000 models for your choosing. And can also produce customized cells according to your requirement.


Features of Lithium Polymer Battery
1. High Energy Density.
2. High Output Voltage.
3. Excellent Security.
4. Long Cycle Life: More than 500 repeated charge/discharge cycles.
5. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell
6. Environmental-friendly: No Pb, Cd added
7.Dual IC chips, that can anti-short circuit, anti-overcharge, anti-overcurrent, anti-overload;

Specification of Lithium ion Polymer Battery PAC3590135 3.7V 4500mAh

No. Item

Characteristics
1 Rated Capacity 4500mAh
Minimal Capacity(C min) 4500mAh
2 Rated Voltage 3.7V
3 Initial Internal Impedance ≤100mΩ (AC impedance @1kHz,50% SOC, 23±2°C)
4 Limited Charging Voltage 4.20+0.03-0.02V
5 Discharging Cut-off Voltage 3.0V
6 Standard Charging 0.2C5A (900mA) CC(constant current) charge to Charge Limited Voltage, then CV(constant voltage) charge till charge current decline to 0.02 C5A at 23±2°C. 23±2°C,0.2C5A (900mA)
7 Standard Discharging 0.2C5A (900mA) discharge to the Discharge Cut-off Voltage at 23±2°C. 0.2C5A (900mA)
8 Maximum Charging Current 2000mA
9 Maximum Discharging Current 5A

10

 Operating Temperature Range Charge 0 - 60°C
Discharge – 20 ~ 60°C
Storage Temperature Range -20 ~ 60°C≤1month; -20 ~ 45°C≤3months; -20 ~ 30°C≤12months (50±10)% SOC
11 Weight Approx. 90.0g

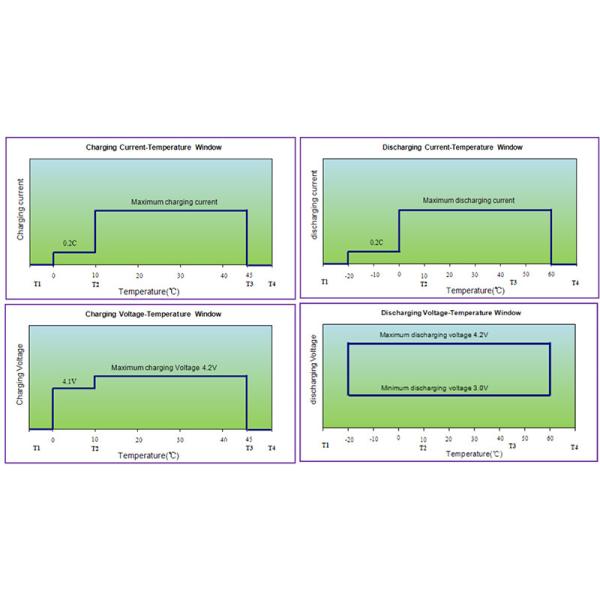

Charging-Discharging Temperature and Voltage, Current diagram

High Energy Density Thin Lithium Polymer Battery PAC3590135 3.7V 4500mAh For Tablet

3.7V 3800mAh Battery PCM Parameter

Parameter

 Min. Typ. Max. Unit
Overcharge Detection Voltage 4.260 4.280 4.300 V
Overcharge Detection Delay Time 700 1300 ms
Over discharge Detection Voltage 2.95 3.0 3.05

V
Over discharge Detection Delay Time 180 330 ms
Discharge Over Current Detection 9 15 A
Over Current Detection Delay Time 11 21 ms
short circuit Detection Delay Time 196 364 μs
Normal current consumption 4.0 μA
Impedance 40

Trading detail:

1) Packing: Industrial packing (can be as customer's requirements)
2) MOQ: 2000pcs (Small trial order accepted)
3) Delivery time: Usually 20~25 days after payment
4) Payment term: T/T, Western Union, PayPal


Lithium ion Polymer Battery Delivery
• By Air Door to Door Service
• By Sea Door to Door Service
• By Express: EMS, TNT, UPS, FedEx
