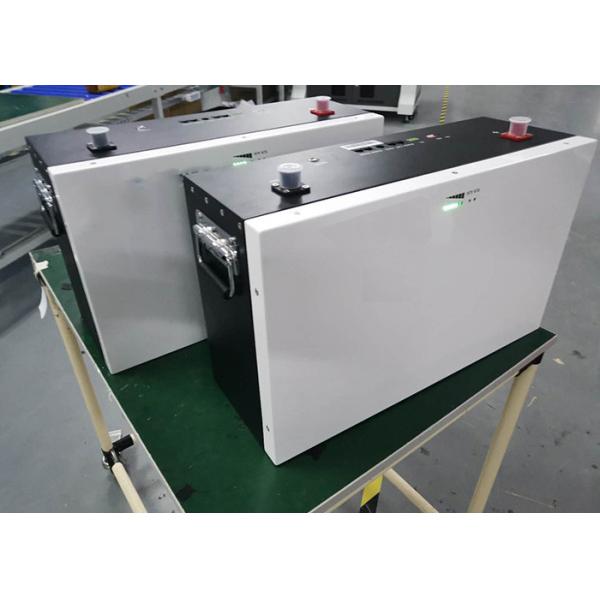

25.6V 200Ah 5kWh LiFePO4 Home Solar Battery Backup with Metal Case Design
25.6V 200Ah 5kWh LiFePO4 Home Solar Battery Backup with Metal Case Design
25.6V 200Ah 5kWh LiFePO4 Home Solar Battery Backup with Metal Case Design
25.6V 200Ah 5kWh LiFePO4 Home Solar Battery Backup with Metal Case Design
25.6V 200Ah 5kWh LiFePO4 Home Solar Battery Backup with Metal Case Design
25.6V 200Ah 5kWh LiFePO4 Home Solar Battery Backup with Metal Case Design
25.6V 200Ah 5kWh LiFePO4 Home Solar Battery Backup with Metal Case Design
25.6V 200Ah 5kWh LiFePO4 Home Solar Battery Backup with Metal Case Design
Specifications
Brand Name :
OEM
Model Number :
2.5KWH 24V 100Ah
Certification :
IEC62619, MSDS, UN38.3 etc
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
60,000kWh per month
Delivery Time :
15-20 days for samples, 20-30 days for bulk order
Packaging Details :
Standard export carton, wooden case, pallet etc.
Typical Capacity :
200Ah, 5KWH
Housing Material :
Metal case
Battery Application :
Home Solar Battery Backup
Battery in parallel :
Available
Nominal voltage :
24V
Design :
with LCD and LED indicators
Features :
Wall type
Warranty :
10 years
Description

Home Solar Battery Backup 5KWH 25.6V 200Ah Lithium Battery Pack

Light weight 5KWH Lithium battery pack for home solar energy storage, using long cycle life LiFeO4 battery cell, 15S/16S 4P assembly.

*smart hybrid on-off grid solar system
*smart AC-couple solar system
*smart hybrid off grid solar system

Our power wall is compatible with hybrid inverter of brand Solar Edge, Solax, Goodwe, Sungrow, Lantruan, Sofarsolar, GMDE, Voltronic, Sol-Ark, Schneider, outback etc.


2. Specification of Home Solar Battery Backup 5KWH

Electrical Characteristics Nominal Voltage 25.6V
Nominal Capacity 200Ah@0.2C
Energy 5KWh
Internal Resistance ≤40mΩ
Cycle Life >6000 Cycles @ 0.2C Charge/Discharge
Months Self Discharge ≤3% per month at 25℃
Standard Charge Charge Voltage 28-29.2±0.2V
Charge Mode(CC/CV) At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then, changed continuously with constant voltage of 58.4V until the current was not more than 0.02C.
Charger Current 20A
Max.Charge Current 100A
Standard Discharge Discharge Current 20A
Max. Continuous Current 100A
Limiting current 20A
Disxcharge Cut-off Voltage 20-22V
Environmental Charge Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Disxcharge Temperature -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance IP54
Mechanical Cell & Method 16S4P
Plastic Case Metal
Dimension(L*W*H*TH) 616*486*210mm
Weight Approx. 76kgs
Communication interface RS485, RS232


3. Appearane and Structure of Home Solar Battery Backup 5KWH


4. Parallel use of Home Solar Battery Backup 5KWH
When the battery needs to be used in parallel, the maximum connection is 10units, but we recommend to use 2-4 units according to application. The application needs power and communication connections as below, choose suitable accessories.


5. Power wall connection
Let’s take 2 batteries for example, use an additional junction box (not included in the standard pack) to combine the power flow of both batteries:

  1. First refer to chart below to define master level and slave level battery
  2. Connect master battery’s positive pole to J1 and negative pole to J3 of the junction box
  3. Connect slave battery’s positive pole to J2and negative pole to J4
  4. Connect J5 with inverter’s positive pole
  5. Connect J6 with inverter’s negative pole
  6. Add suitable isolators when necessary

6. Why Choose PAC Technology Co., Ltd?

Reliable quality -- We have more than 10 years of rechargeable lithium battery industry experience. Automated battery production line and precise equipment. In strict accordance with international standards for production inspection, to ensure battery quality and safety.
Positive service -- We give response for all inquiries/questions in 12 hours. We have a professional battery R&D team. We can provide professional customized and one-stop services.
Taking responsibility -- Purple Horn members to proactively take responsibility, we always offer the best Battery Solution to our customers.

Purple Horn provides 24 hours customer service. Waiting for your inquiry!
