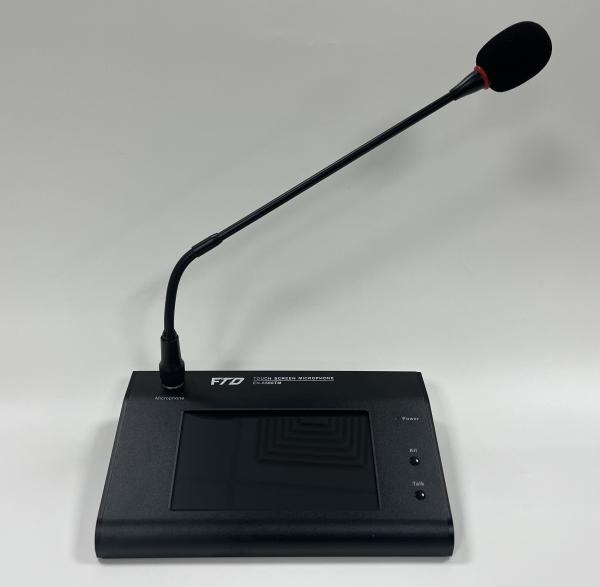

PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
Specifications
Brand Name :
FTD
Model Number :
EN-6500TM
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
/
Payment Terms :
T/T
Supply Ability :
500PCS Per Month
Delivery Time :
10-15 work days
Packaging Details :
Carton
Zone Capacity :
120 Zones
System Capacity :
Thirty-2 Remote microphones
Frequency Response :
80Hz~16kHz
Weight :
1.5kg
Dimension :
25.6(W)×14.9(H)×5.2(D) cm
Warranty :
Three years
Description
EVAC System Voice Evacuation Systems Pava Systems Touch Screen Microphone

EVAC Microph

EVAC Microphone Features

  • Digital voice evacuation system remote paging microphone.
  • Each microphone of 120 zone capacity.
  • Support 32 remote microphones of loop connection.
  • Remote paging microphone with touch screen display.
  • System indicators of AC, DC, fault, Mic status and test.
  • 120 zone selection buttons through touch screen and all zone/talk button.

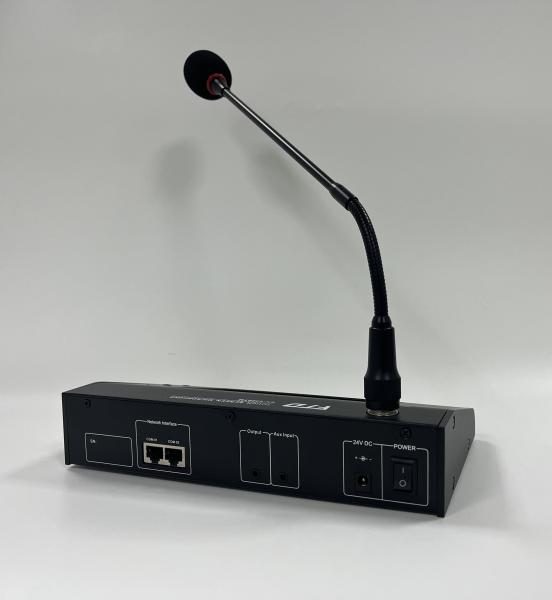

  • Two RJ45 ports for connection with EVAC-500 and next remote microphone.
  • One 3.5mm line input, with output volume control.
  • Support PPT and normal paging two modes.
  • DC24V power supply or POE.
  • Support loop connection and paging microphone failure has been supervised.
  • With free software to monitor the microphone working status and fault.

PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 ZonesPAVA EVAC Voice Evacuation System Touch Screen Microphone 120 ZonesPAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones

System Diagram&Specification
Model
EN-6500TM
Description
Voice Alarm Remote Microphone (Touch Screen)
Power Consumption
3W
Zone Capacity
120 Zones
System Capacity
32 Remote microphones
Line Inputs
350mV, 10kΩ
Mic Input
5mV, 600Ω
Frequency Response
80Hz~16kHz
THD
＜1% at RMS,1KHz
S/N Ratio
>70dB
Operating Temp
-20℃ to +70℃
Power Supply
DC24V, ±20%
Humidity
<95% no condensation
Dimension
256(W)×149(H)×52(D) mm
Weight
1.5kg
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones

Certifications&Exhibition
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
Company Introduction

Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!

PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones

PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones

Packing&Shipping
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones
PAVA EVAC Voice Evacuation System Touch Screen Microphone 120 Zones

FAQ

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
