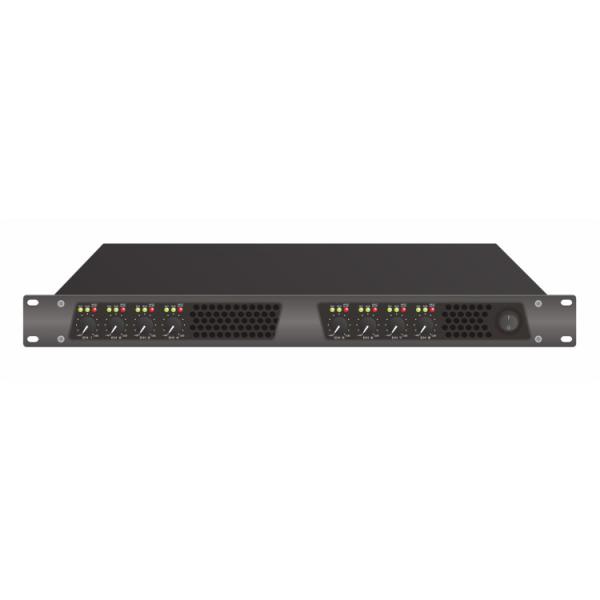

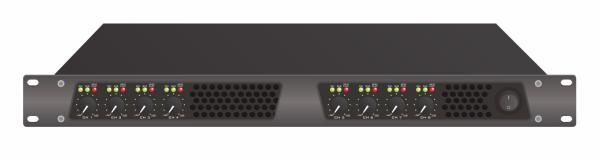

FTD Rack Mount 1U Class D Power Amplifier Black Durable 50Hz 60Hz
FTD Rack Mount 1U Class D Power Amplifier Black Durable 50Hz 60Hz
FTD Rack Mount 1U Class D Power Amplifier Black Durable 50Hz 60Hz
FTD Rack Mount 1U Class D Power Amplifier Black Durable 50Hz 60Hz
FTD Rack Mount 1U Class D Power Amplifier Black Durable 50Hz 60Hz
FTD Rack Mount 1U Class D Power Amplifier Black Durable 50Hz 60Hz
Specifications
Brand Name :
FTD
Model Number :
FDP-8400
Certification :
CE，ROHS
Place of Origin :
Guangzhou China
MOQ :
10 pcs
Price :
$ 473~478
Payment Terms :
T/T
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7 work days
Packaging Details :
carton
Output Power :
500W
Shell Material :
Aluminum
The body material :
Metal
Color :
black
Description

1U height 8 Channel Class D 1u Professional Power Amplifiers

Class D 1u Professional Power Amplifiers Public Address System

Product Description
Model
FDP-8350
Description
Eight Channel Class-D Amplifier
Technology
Class-D
RMS Power @ 8 Ohm Stereo
8×350 Watt
RMS Power @ 4 Ohm Stereo
8×500 Watt
RMS Power @ 2 Ohm Stereo
8×750 Watt
Max Output
57V
Input Sensitivity
1V
Max Input Level
26dBu
Gain
34dB
THD
<0.5%
Crosstalk
>75dB
Frequency Response
20Hz~20KHz
Input Impedance
10K
Damping Parameter
>1000 (8Ω,20HZ~200HZ)
S/N Ratio
>105dB (20HZ~20KHZ)
Power Consumption
550VA (1/8 Max Output @4Ω)
Power Consumption
1100VA (1/4 Max Output @4Ω)
Connector
Input by Combo female, link by XLR female.
Efficiency
>85%
Power Supply
AC 220-240V or 115V, 50~60Hz
Dimension
484(W)*430(D)*44(H)mm
Weight
10.9kg

FTD Rack Mount 1U Class D Power Amplifier Black Durable 50Hz 60Hz

8CH Professional power amplifier FDP-8350 8×350W 8ohms

The FTD 8 channel class-d amplifier FDP-8400 is designed of switching power technology, whose advantages are without transformer for less heat generation and long life span. Moreover, higher efficiency of more than 85% could help to decrease the power electricity consumption by green environment protection. Special power circuit design of PWM to ensure the world first level natural cooling system with additional four fans. The eight channel class-D amplifier is of 19” rack mount design is suitable for universal permanent installation of any sound reinforcement system. The digital Class-D technology also bring the lighter amplifier of less rack space consumption into true, so it is very useful and cost-effective amplifier for installer and system contractor. The rated power output of this amplifier is 8×500W, so it is ideal for meeting room, small stadium, bar, theme park and train station indoor and outdoor sound system, capacity of maximum connection of eight professional sound low impedance loudspeakers.
Company Introduction
Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years’ experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!

Our Services & Strength

Quality: Quality is our life.
Customer: Customer first, crate value for our customer.
Service: Offer professional service to help customers, include suggestions, solutions etc
Dream: Help partners do a successful business, then FTD will be successful.
