5 Channel UHF Digital Conference Room Audio Equipment 105dB S N Ratio
5 Channel UHF Digital Conference Room Audio Equipment 105dB S N Ratio
5 Channel UHF Digital Conference Room Audio Equipment 105dB S N Ratio
5 Channel UHF Digital Conference Room Audio Equipment 105dB S N Ratio
5 Channel UHF Digital Conference Room Audio Equipment 105dB S N Ratio
5 Channel UHF Digital Conference Room Audio Equipment 105dB S N Ratio
Specifications
Brand Name :
FTD
Model Number :
WCS-400
Certification :
CE, RoHS & ISO9001
Place of Origin :
Guangzhou China
MOQ :
10 pcs
Price :
$ 420~504
Payment Terms :
T/T
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7 work days
Packaging Details :
carton
Dimension :
485(W)*355(D)*100(H)mm
Weight :
7.2kg
Description

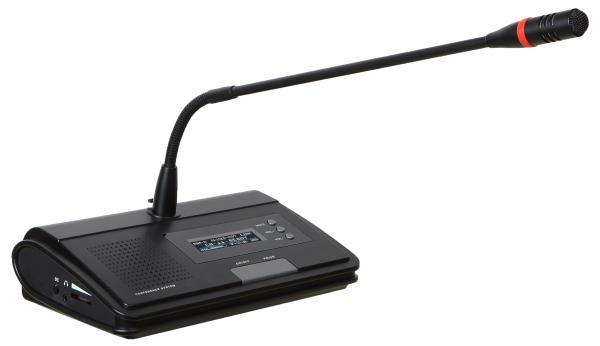

Audio UHF Digital Wireless Audio Microphone Conference System Solution

Features

1.Simple operation UHF wireless conference system. 2.Minimum cable wiring to save cable layout cost. 3.Minimum cable connection ideal for rental use or portable conference system. 4.Basic discussion conference system or audio conference system. 5.Economy wireless conference system and meeting system. 6.System capacity of 256 delegate units. 7.Chairman unit with priority over delegate units. 8.Chairman unit and delegate unit built-in rechargeable LIPO battery. 9.Several meeting modes: Limit (1/2/3/4), First in first out (1/2/3/4), Chairman Only and free discussion modes. 10.5 delegate microphones can be turned on at the same time. 11.Microphones can be operated on the built-in rechargeable lithium battery. 12.Battery working time of 16 hours and standby time of 60 hours. 13.Multi-channel high bandwidth and intermediate band frequency selective filtering to avoid any interference. 14.Built-in feedback suppressor to decrease feedback and noise effectively. 15.Built-in noise deletion circuit and TONE-LOCK system to make sure the system has strong anti-jamming function. 16.Operation distance up to 300 meters and coverage up to 4,000 Square meters. 17.Separate volume control for 5 channels on master controller front panel. 18.Separate output level meter for each 5 channels for direct visual monitoring. 19.Optional v auto-track video tracking function. 20.UHF wireless conference system master control is powered by DC12V. 21.Master control With unbalanced 6.3mm jack output and balanced XLR output to sound reinforcement system. 22.Video tracking function need external equipment and cameras.
Specification
Model
WCS-400
Description
UHF Wireless Conference System Master Controller
Audio
Transmission Way
UHF wireless one way transmission by oscillation PLL technology
Channel Qty
5 channels (one for chairman Mic and four for delegate Mics)
Frequency Range
740MHz-790MHz @ ±10PPM stability
Modulation Mode
FM
Receive Sensitivity
-100dBM
Output Level
Balanced XLR output: 0-600mV, unbalanced Jack output: 0-300mV
Frequency Response
60Hz-16KHz
S N Ratio
>105dB
THD
<0.5%
Communication Distance
300 meters
Control
Transmission Way
UHF wireless two way transmission
Channel Qty
16
Frequency Range
740MHz-790MHz
Frequency Range
FSK
Frequency Range
-100dBM
Transmitted Power
+6dBm (adjustable)
Frequency Deviation
<0.002
Communication Rate
100KBPS
Signal Coverage
4,000 Square meters
Mechanical
Power Supply
DC12V-15V, >=1A
Power Consumption
< 7W
Operation Temperature
-20ºC to +55ºC
Dimension
485(W) x 355(D) x 100(H)mm
Weight
7.2 kg

Company Profile

Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years′ experience on Audio field. FTD audio will offer the professional products and
service to each of partner and do a win win business with our partners!
Our main products are Public address system ,EVAC system, IP PA system ,conference system ,PA amplifier and PA speaker.These
system are all designed and produced by our engineer. We are accept OEM,ODM order.

FAQ
1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
