pa system Public Address System 10 Inputs Pre-Amplifier
pa system Public Address System 10 Inputs Pre-Amplifier
pa system Public Address System 10 Inputs Pre-Amplifier
pa system Public Address System 10 Inputs Pre-Amplifier
Specifications
Brand Name :
FTD
Model Number :
FTD-101PR
Place of Origin :
CHINA
MOQ :
2pieces
Price :
USD70~72
Supply Ability :
1000cottons
Delivery Time :
5-8work days
Packaging Details :
484*350*88(mm)
Description :
Public Address System 10 Inputs Pre-Amplifier
S/N Ratio :
>70dB
Frequency Response :
60Hz-15kHz(±3dB)
THD :
<0.01%
Net Weight :
5.96kg
warranty :
5years
Power Supply :
AC 220-240V; 50-60Hz
Power Consumption :
15W
Dimensions :
484*350*88(mm)
Description


Features:

  • Public address system signal processing equipment.
  • 19" rack mount mixer pre-amplifier for rack installation.
  • 10 inputs pre-amplifier for PA system.
  • Direct connect with power amplifier and audio source player.

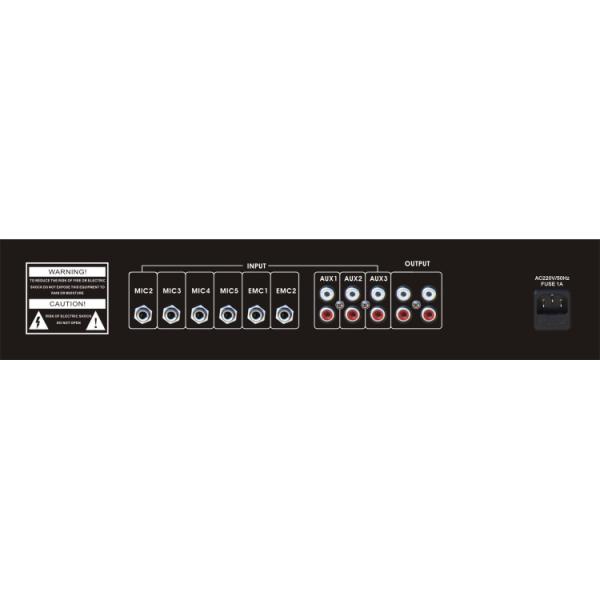

  • 5 microphone inputs, 3 auxiliary inputs, 2 priority EMC inputs and 2 outputs.
  • Microphone 1 with VOX muting function.
  • Individual volume control for microphone and aux input.
  • Bass and Treble tone control
  • With 10 output level meter to indicate the output level
  • Built-in siren and chime
Model FTD-101PR
Name Public Address System 10 Inputs Pre-Amplifier
Inputs Mic1, 2, 3, 4, 5: 600Ω, 5mV, unbalanced
Aux1, 2, 3: 10kΩ, 200mV, unbalanced
EMC Input1 & 2: 10kΩ, 200mV, unbalanced
Frequency Response 60Hz-15kHz(±3dB)
S/N Ratio >70dB
THD <0.01%
Protection AC fuse
Power Consumption 15W
Power Supply AC 220-240V; 50-60Hz
Dimension 484×350×88(mm)
Packing 520×435×185(mm)
Net weight 5.96kg
Gross weight 7.62kg

pa system Public Address System 10 Inputs Pre-Amplifierpa system Public Address System 10 Inputs Pre-Amplifierpa system Public Address System 10 Inputs Pre-Amplifierpa system Public Address System 10 Inputs Pre-Amplifier

exihibition

pa system Public Address System 10 Inputs Pre-Amplifier

FAQ:

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
