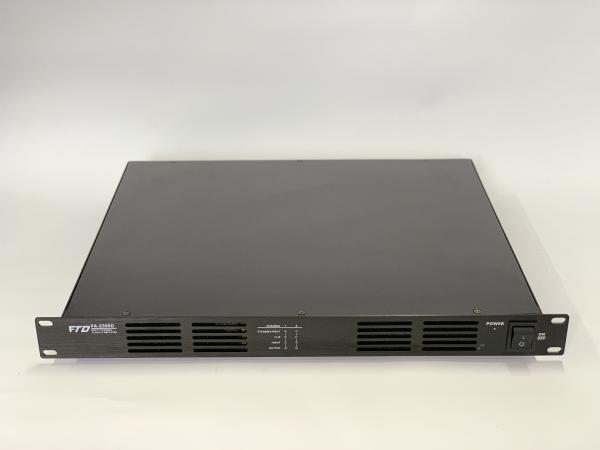

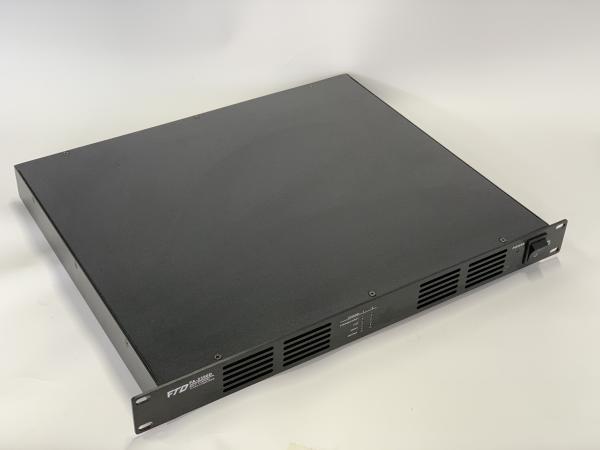

Class D Two Channel 240W Power Amplifier Power Amplifier 5000 Watts
Class D Two Channel 240W Power Amplifier Power Amplifier 5000 Watts
Class D Two Channel 240W Power Amplifier Power Amplifier 5000 Watts
Class D Two Channel 240W Power Amplifier Power Amplifier 5000 Watts
Class D Two Channel 240W Power Amplifier Power Amplifier 5000 Watts
Class D Two Channel 240W Power Amplifier Power Amplifier 5000 Watts
Class D Two Channel 240W Power Amplifier Power Amplifier 5000 Watts
Class D Two Channel 240W Power Amplifier Power Amplifier 5000 Watts
Specifications
Brand Name :
FTD
Model Number :
FA-2240D
Place of Origin :
CHINA
MOQ :
2pieces
Price :
USD200-202
Supply Ability :
1000cottons
Delivery Time :
5-8work days
Packaging Details :
482(W)*420(D)*44(H) mm
Description :
Class-D Two Channel Power Amplifier
Rated Power Output :
2*240W
Speaker Output :
4-16ohms & 100V
Frequency Response :
L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB)
THD :
<0.1% (1KHz/-3dBv, 100W)
S/N Ratio :
>80dB
Crosstalk :
>60dB, 1KHz, Max output
Power Supply :
AC input switchable between 115V & 230V, 50-60Hz 24V DC input as option at order request.
Power Consumption :
550W
Dimension :
482(W)*420(D)*44(H) mm
Weight :
7.5kg
Warranty :
5 years
Description

Class-D Two Channel 240W Power Amplifier power amplifier 5000 watts

Features:

1.Switching power technology digital power amplifier
2.Class-D PA power amplifier of minimum power consumption
3.1RU height for less rack space and less heat generation
4.Two channel power amplifier into 19" rack mount unit
5.Rated power output at 2x120W
6.Two channel separate speaker outputs 8ohms/100V
7.Balanced line input by phoenix connector for two channels
8.Each input with separate gain control.
9.Each two channel with high-cut filter.
10.Built-in auto standby feature to save power consumption
11.Separate two channel indicators for protection, clip, input and output
12.Complete short circuit, overload, high temp, clip and DC protection
13.Wide AC input switchable between 115V and 230V
14.24V DC input is optional.

Description:

  1. The FA-2500D range digital class-D power amplifier is of switching power technology, which features of minimum power consumption and much higher efficiency up to 85%, moreover it helps to save installation rack space, generate less heat so as to extend its performance life span as a result.

    The FA-21200D is of rated power output at 2×120W, so it could be used as two zone multiple sources public address system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 8ohms enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs.

    There are two balanced inputs by phoenix connector for each channel with gain control. Two separate zone speaker outputs both by 100V & 8ohms. The built-in two channel separate high-pass filters could be enabled or disabled through the dip switch pre-setting.
