MachineU > China Products > Service Equipment > Digital Signage > Digital Signage and Displays

4k 8k Indoor Small LED Display Board P1.875 Digital Signage and Displays

Specifications

Color Depth :

14-22bit

type :

LED

Brand Name :

REISS

application :

indoor

use :

led screen indoor, indoor led display, digital signage and displays

media available :

datasheet, Photo

color :

Full color

Model Number :

P1.875

pixel density :

288906dots

Place of Origin :

Guangdong, China

pixels :

1.2MM

Usage :

Indoor

Display Function :

Video

Material :

die-casting

Module size :

320mmx160mm

Viewing angle :

H:160° V:160°

Brightness :

800cd/sqm, 1000nit

Pixel density :

288906pix/m²

Life span :

100000hours

Refresh Rate :

3840Hz/7680Hz

Warranty :

5 years

Supplier Type :

original manufacturer, ODM, OEM

Function :

SDK

Specification :

Video Wall

Screen Type :

IP Rating :

IP51

Lifespan (hours) :

100000

Panel Size :

640*480MM/Customization

Contrast Ratio :

30000:1

View Angle（H/V） :

160:160°

HS Code :

8531200000

Resolution :

2K/4K/8K

Description

Product Description

If you need other LED displays (HD indoor screens, stage rental screens, transparent screens, Soft Flexible Curved LED Display...) click here →

Specifications：

Small LED Display (Part of it, contact in detail)

Indoor led module display panel P1.25/P1.5/P1.6/P1.8/P2/P2.5/P4/P5 led video wall screen

With high refresh rate, high brightness, and fast assembling.
With waterproof, light & thin, and good heat dissipation.
Warranty for 5 years . no dead lamp and long time working hours .

Model

P1.2

P1.5

P1.6

P1.8

P2.5

Pixel Pitch(mm)

1.25

1.53

1.66

1.86

2.5

Pixel Matrix Per Sq.m

422500

360000

288906

250000

160000

90000

62500

Pixel Configuration

SMD1212

SMD1515

SMD2121

Cabinet Resolution

415x312

384x288

344x258

320x240

256x192

192x144

160x120

Power Con.(W/㎡) (Max / Avg)

600W/200W

580W/180W

550W/160W

450W/160W

Refresh Rate (HZ)

≥3840

3840

≥1920

Brightness (cd/㎡)

500-900

Module Dimension

320x160mm / 1.05x0.53ft

Cabinet Dimension

640x480mm / 2.10x1.57ft

Cabinet Material

Die Casting Aluminum

Cabinet Weight

4.6KG

Service Access

Front

Grey Scale (bit)

14-22bit

Viewing Angle (H/V)

160°/160°

IP Rate

IP45

Operation Temperature

-20℃ ~ +80°℃

Input Voltage (AC)

110V / 220V

Direct connection power cables

Power supply

Fast lock

Receiving card

Click here for more details

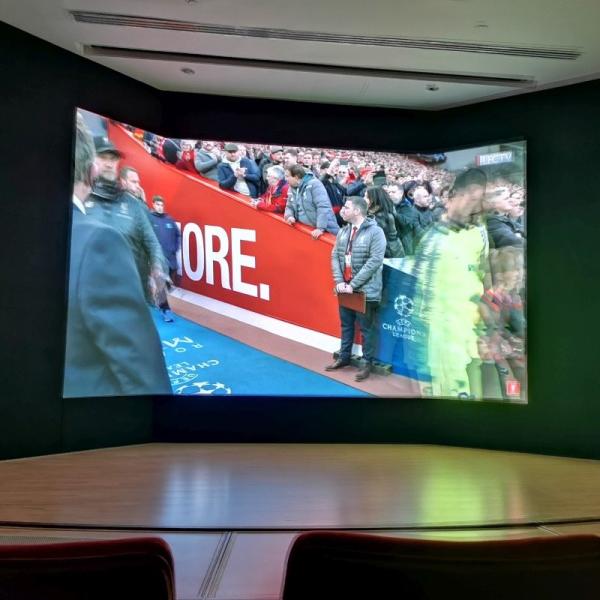

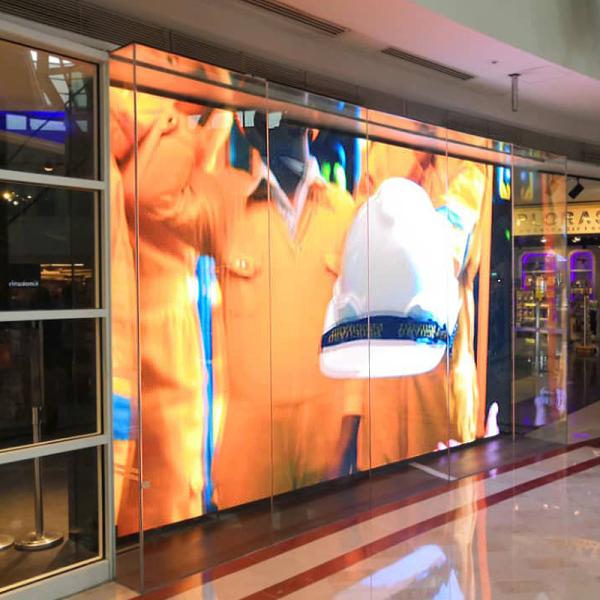

Project Cases

Part of it：Indoor stage studio

Indoor stage performance

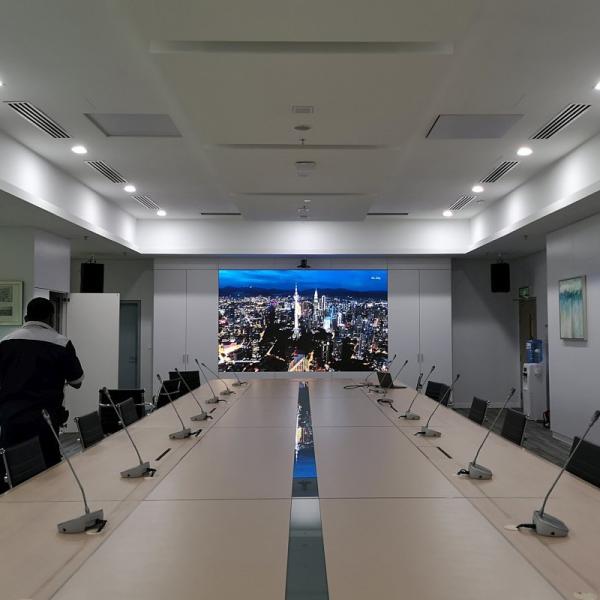

meeting room

Outdoor stage background

Related Product

Small Pixel LED Screen

Rental Type LED Screen

Fixed Type LED Screen

Soft Flexible Curved LED Display

Dance Floor LED Display

Transparent Mesh LED Screen

Company Profile

Shenzhen Reiss Optoelectronics Technology Co., Ltd.

Our products have also passed CE, FCC, RoHS certification. Our market depends on competitive prices and high-quality products, and our products have won the trust of many overseas countries. So far, we have established good cooperation with customers from the United States, Germany, Brazil, Italy, Spain, the United Kingdom, Russia, Australia, New Zealand, Japan and other countries. Our market continues to develop towards a broader prospect.

Certificate

Our Service

Packing & Delivery

FAQ

Q1：How can I select your product?
Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.

Q2：What if I don't know how to install the screen?

1. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation place, and we can guide on line.

2. Training 2 people in the factory.

3. We can send our engineers to your country to guide how to install the screen.

Q3：What is the minimum order quantity?

Qty: 1 unit. Different order quantity different price.

Q4：I would like to ask you if it's possible to have my logo on the product.

Logo printing service is available for mass order based on our M.O.Q

Q5：What if I don't know how to maintain the screen?

We will provide you the operation manual, software when you place the order and also we can remote to help you to adjust the software by teamviwer.

Q6：How to deliver the my goods?

It denpens on your budget and time you need the led screen. Regularly, if the quantity is less, we guggest to deliver by air, otherwise by sea to save the costs.

Q7：How about your warranty?

We provide 5 year warranty for all of our products and supply life-time maintenance.

Q8：What kind of packaging do you provide?

We provide flight case, wooden case and carton.

Q9：How long will it take me to get the product?

We will send the goods as quick as possible, but oftenly it will take 1-2 weeks to get the goods according to the distance ,and some other necessary processes.

Q10：What kind of certification do you get?

We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
