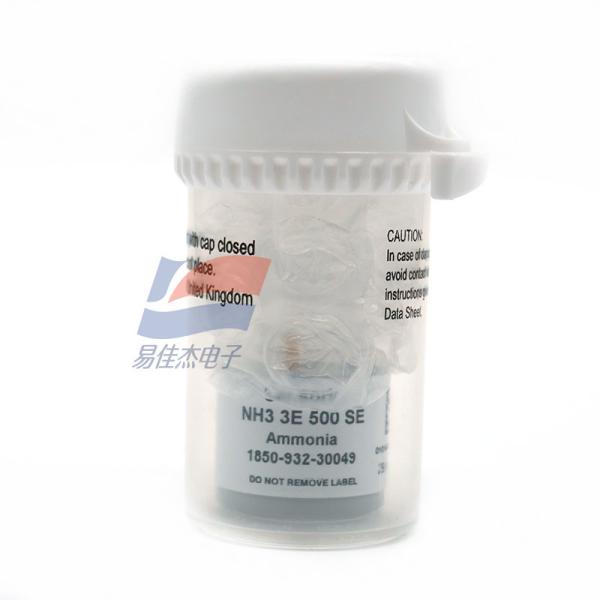

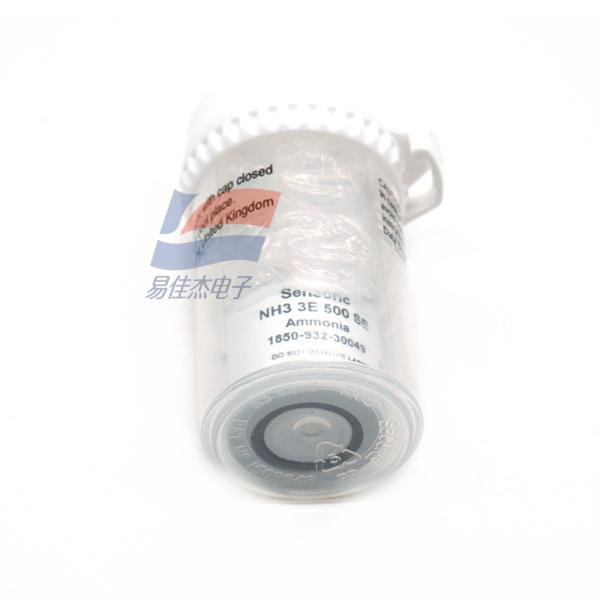

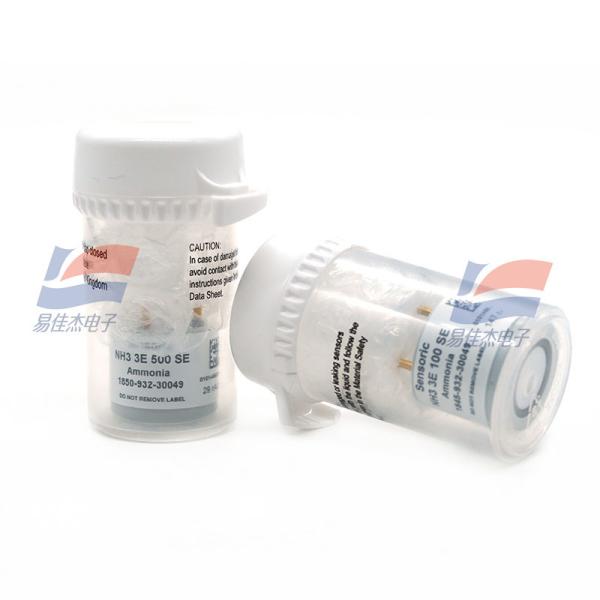

NH3 3E 500 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications
NH3 3E 500 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications
NH3 3E 500 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications
NH3 3E 500 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications
NH3 3E 500 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications
NH3 3E 500 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications
Specifications
Model Number :
NH3 3E 500 SE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5work days
Measuring Range :
0-500ppm
Sensitivity Range :
35nA/ppm ± 15nA/ppm
Expected Operating Life :
>24 months in air*
Zero Current at 20oC :
<± 100nA, typically 40nA
Response Time at 20oC :
t50 <30s calculated from 5min. expsoure time t90 <90s calculated from 5min. expsoure time
Temperature Range :
-20°C to +40°C
Bias Potential :
0mV
Linearity :
<10% full scale
Description

NH3 3E 100 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications

Features:
Amperometric 3 electrode sensor cell
Low susceptibility to abrupt changes of humidity
No CO2 interference
High selectivity
0 voltage biased operation

Typical Applications:

Portable & fixed point applications
Monitoring of IDLH levels, General Industry,
Chemical Industry, Food & Refrigeration Industry

Part Number Information:
Mini 1850-932-30009
Sensoric Classic 1850-932-30069
CTL4 Series Adaptation 1850-932-30049
CTL 7 Series Adaptation 1850-932-30079

Long Term Sensitivity Drift <5% per 6 months
Pressure Coefficient <0.03% signal/mBar
Operating Humidity 15-90% RH non-condensing
Effect of Humidity No effect on zero reading
during abrupt changes of RH
Recommended Load Resistor 100Ω
Orientation Sensitivity None
Storage Life 4 weeks in container
Recommended Storage Temperature 0-20°C

NH3 3E 500 SE Electrochemical Gas Sensor Ammonia Gas Sensor 0-500ppm Low Susceptibility To Abrupt Changes Of Humidity Portable & Fixed Point Applications
