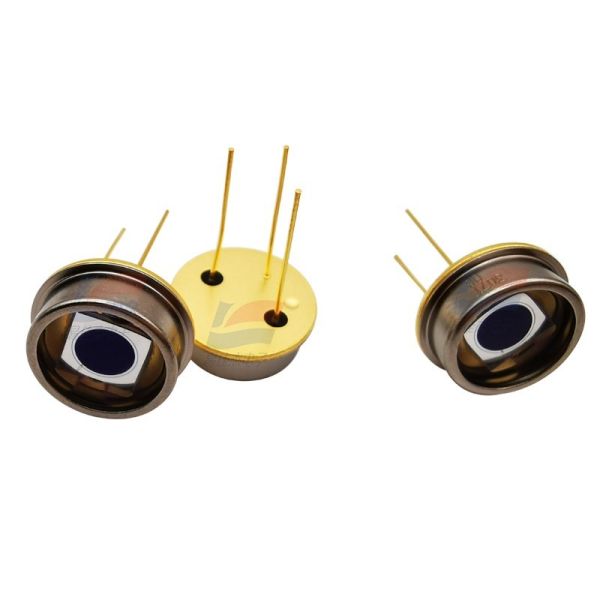

Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)
Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)
Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)
Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)
Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)
Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)
Specifications
Model Number :
S3071
Place of Origin :
Japan
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Light-receiving side :
φ5.0 mm
encapsulation :
metal
Package Category :
TO-8
refrigeration :
Non-cooled
Reverse voltage (max) :
50 V
Dark current (max) :
10000 pA
Description

Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)

Large-area, high-speed silicon PIN photodiodes

The S3071 is a silicon PIN photodiode with a relatively large photosensitive surface, but provides an excellent frequency response at 40 MHz. This photodiode is suitable for space light transmission (free-space optics) and high-speed pulsed light detection.

Features:
- Photoreceptor Size: φ5.0 mm
- Cut-off frequency: 40 MHz (VR=24 V)
- High reliability: TO-8 metal package

Maximum Sensitivity Wavelength (Typical) 920 nm
Light sensitivity (typical) 0.54 A/W
Dark current (max) 10000 pA
Cut-off Frequency (typical) 40 MHz
Junction Capacitance (typical) 18 pF
Noise equivalent power (typical) 2.1×10-14 W/Hz1/2

Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)

Silicon PIN photodiode S3072

Large-area, high-speed silicon PIN photodiodes

The S3072 is a silicon PIN photodiode with a relatively large photoreceptor area, but provides an excellent frequency response at 45 MHz. This photodiode is suitable for space light transmission (free-space optics) and high-speed pulsed light detection.

Features
- Photosensitive surface size: φ3.0 mm
- Cut-off frequency: 45 MHz (VR=24 V)
- High reliability: TO-5 metal package

Light-receiving side φ3.0 mm
encapsulation metal
Package Category TO-5
refrigeration Non-cooled
Reverse voltage (max) 50 V
Spectral response range 320 to 1060 nm
Maximum Sensitivity Wavelength (Typical) 920 nm
Light sensitivity (typical) 0.54 A/W

Silicon PIN Photodiode S3071 S3072 For Space Light Transmission (free-space optics)
