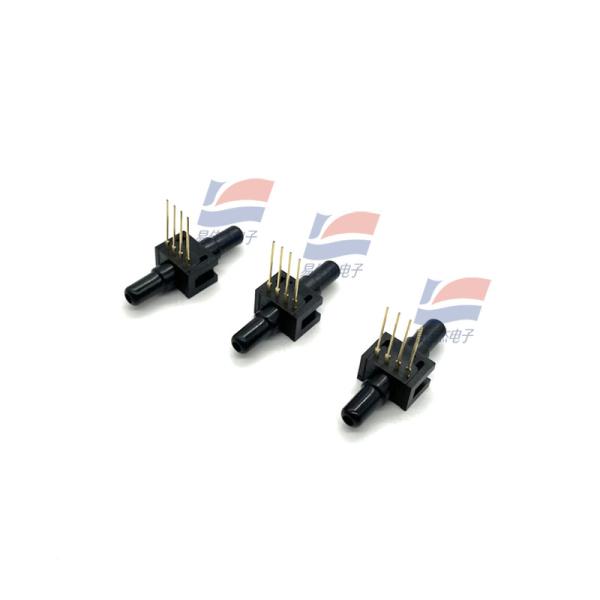

YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor
Specifications
Model Number :
24PCEFA6D
Place of Origin :
USA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3 days
Packaging Details :
Disk mounting
Working pressure :
0.5 psi
Accuracy :
0.15 %
Output type :
Analog
Port type :
Dual Axial Barbed, Opposite Sides
Power supply voltage - Max :
10V
Description

YJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure SensorYJJ 24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor

Product Description:

24PCEFA6D Piezoresistive Micromachined Board Interface Surface Mounted Pressure Sensor

Features:

24PC series of miniature pressure sensors provides reliable differential pressure sensing performance in a compact package. The sensor adopts a mature sensing technology and utilizes a special piezoresistive micromechanical sensing element. The low-power, unamplified, uncompensated Wheatstone bridge circuit design provides an inherently stable mV output in the 0.5 psi to 250 psi sensing range.

24PC/26PC Series Low Voltage sensors These miniature surface Mount technology (SMT) low voltage sensors are small, affordable devices designed for use with differential wet/damp sensing.

Due to the long-term robust reliability and accuracy of its single-in-line package, the SMT model's smaller configuration reduces the volume space located on the printed board, thus reducing the overall printed board size and lowering costs.

The sensors can be mounted with other common SMT devices, helping to eliminate auxiliary board mounting operations and increase productivity.

Product category: Board interface pressure sensor

RoHS:

Pressure type: Vacuum, Gauge, Differential

Working pressure: 0.5 psi

Accuracy: 0.15 %

Output type: Analog

Installation style: Through Hole

Port type: Dual Axial Barbed, Opposite Sides

Package/housing: SIP-4

Minimum operating temperature: -40 C

Maximum operating temperature: + 85 C

Series: 24PC

Brand name:

Port size: 0.25 in

Product type: Board Mount Pressure Sensors

25

Subcategory: Sensors

Power supply voltage - Max: 10 V

Unit weight: 2.500g

Specifications:

Minimum operating temperature -40 C
Maximum operating temperature + 85 C
Port size 0.25 in
Product type

Board Mount Pressure Sensors

25
