AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
Specifications
Brand Name :
DDS
Model Number :
AQ+7H2S
Place of Origin :
UK
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs/Month
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Bias voltage :
0V
Pin :
4 pins
Output signal :
1700±400nA/PPM
T90 response time :
＜60S
Description

AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector

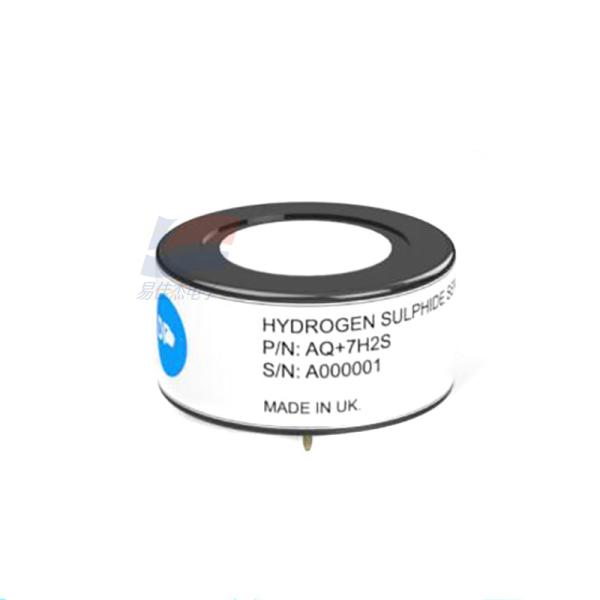

Introduction AQ+7H2S is a 4-electrode H2S sensor designed for ambient air quality applications


Features The fourth electrode is used to improve the baseline drift effect due to ambient temperature changes

Key Features:
High stability, fast response and recovery, strong environmental stability and small package interchangeable with 4 series


Detailed description
The AQ+7H2S H2S is a 7 series format hydrogen sulfide sensor with a 4-pin interface. The AQ+7H2S requires OV bias. The AQ+7H2S
has a measurement range of 0-25 ppm, an output of 1700±400 nA/ppm, a response time of <60 seconds and a warranty of 24 months.
Key features of the AQ+7H2S include: High accuracy, strong environmental stability and excellent value proposition

Maximum overload 100 ppm
Recommended load resistance 20 ohms
Resolution < 10 ppb typical
Temperature range -30°C to +50°C
Temperature range -30°C to +50°C
Pressure range 800 to 1200 mbar
Humidity range 15% to 90% RH

AQ+7H2S Hydrogen Sulfide Sensor Four Electrode Ambient Air Quality 4 Pin Connector
