Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2 in 0-45°C Environments
Specifications
Model Number :
PSR-11-917-M2 PSR 11-917-M2
Place of Origin :
USA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Signal Output (1) :
13-16 mV
Response Time 90% :
13 Seconds
Linearity (2) :
± 1 %
Operating Temperature :
0-45°C
Flow Rate :
.1-10 LPM
Storage (4) :
0 to 40°C
Description

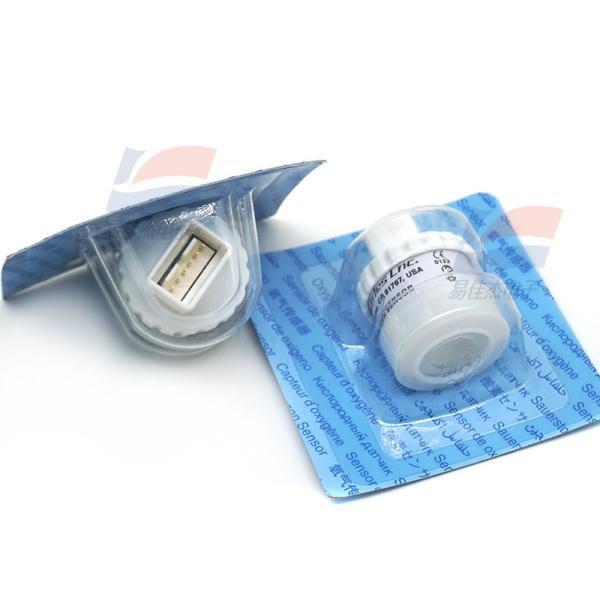

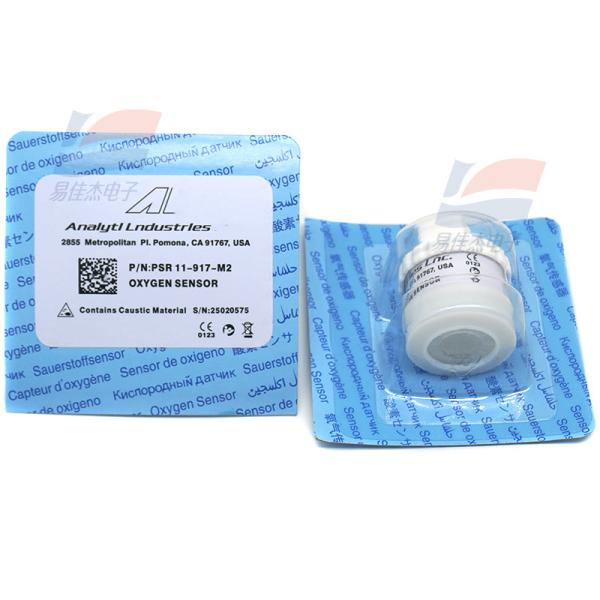

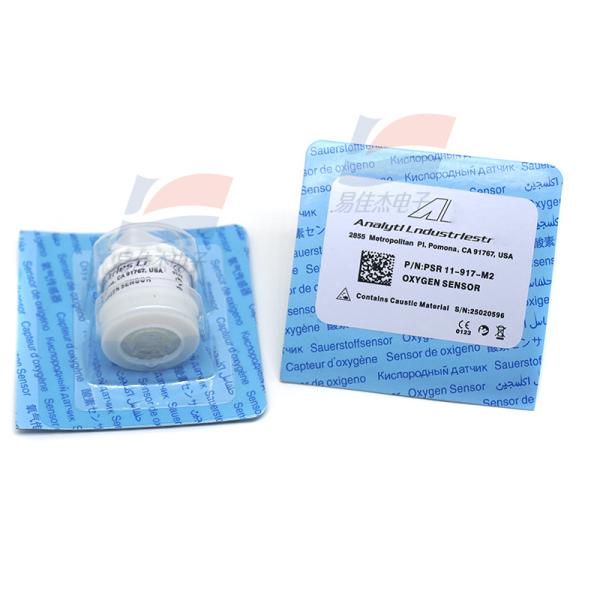

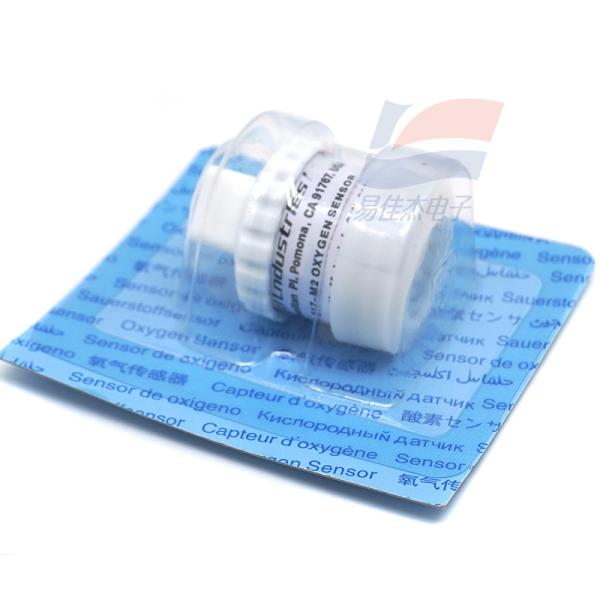

Oxygen Sensor Model PSR-11-917-M2 PSR 11-917-M2

Advanced galvanic type % oxygen sensors with excellent stability and accuracy under stringent applications. All % oxygen sensors are subjected to the most extensive stability test, output in air, 30” of water column pressure test and stability at 100% oxygen.

The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”.

(1) In air @ 25° C and 1 atm. Expected life varies inversely with changes in O2 concentration, temperature, pressure.
(2) Under constant conditions. Calibrate as near sample conditions as possible. Calibrate with 95-100% oxygen for measurements > 40% oxygen.
(3) Once the signal output stabilizes following a step change in temperature.
(4) Recommended 0-40° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.
(5) Ex-factory unless agreed to in writing. Under normal application conditions sensor is warranted to be free of defects in material and workmanship for the period specified above proved the sensor is properly installed and operated. Analytical Industries Inc. shall not be liable for buyer’s negligence, misapplication, alteration or abuse. The sole remedy for a sensor determined to be defective by Analytical Industries Inc. is limited to replacing the defective sensor.

Recommended Storage < 6 months
Electrical Connections 3 Pin Molex
Warranty (5) 18 Months
Storage (4) 0 to 40°C
Expected Life (1) 60 Months
Operating Pressure Constant 5-30 PSIG
