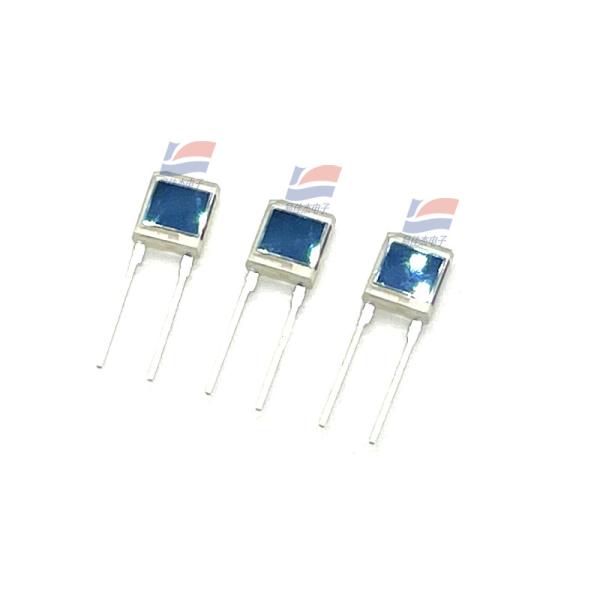

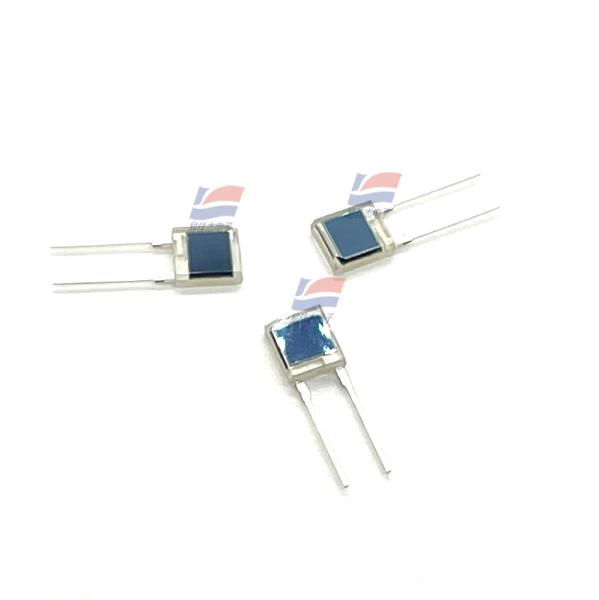

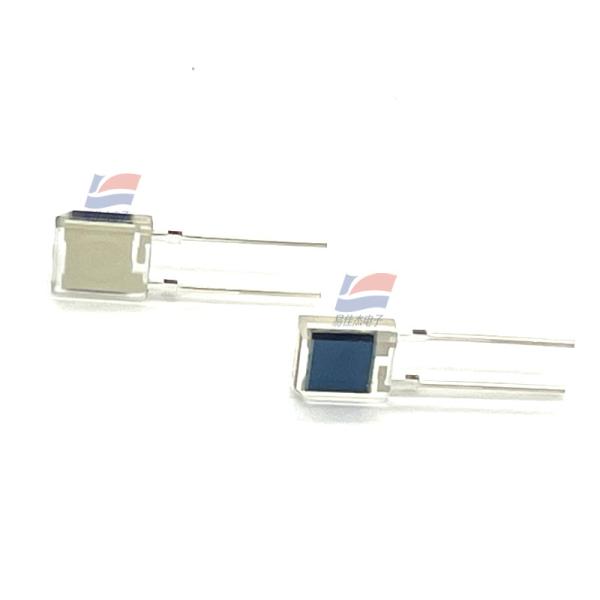

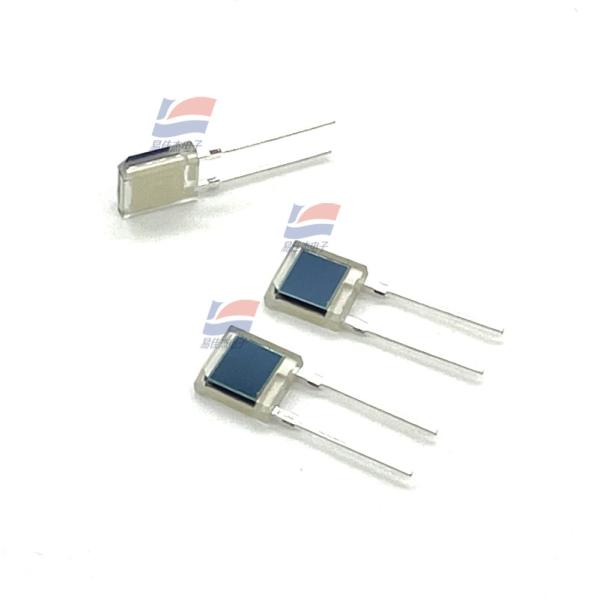

YJJ S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
YJJ S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
YJJ S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
YJJ S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
YJJ S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
YJJ S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
YJJ S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
YJJ S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)
Specifications
Brand Name :
HAMAMATSU
Model Number :
S6775
Place of Origin :
Japan
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
3 days
Packaging Details :
piping
Reverse voltage (Max.) :
20 V
Spectral response range :
320 to 1100 nm
Maximum sensitivity wavelength (typical value) :
960 nm
Photosensitivity (typical value) :
0.55A /W
Description

Product Description:

S6775 Silicon PIN Photodiode Plastic SIP (Single-in-line package)

Features:

S6775 is a silicon PIN photodiode with a large acceptor surface molded into a clear plastic SIP for detection in the near infrared range. This silicon PIN photodiode has the characteristics of high sensitivity, high speed response and large light absorption.

peculiarity

- Visible to the near infrared

- High sensitivity

- High speed response

- Get the shine

- Plastic package: 7 × 7.8mm

- Receiving surface size: 5.5 × 4.8mm

Receiving surface 5.5 × 4.8 mm

Encapsulation plastic

Package category --

Refrigeration uncooled type

Reverse voltage (Max.) 20 V

Spectral response range 320 to 1100 nm

Maximum sensitivity wavelength (typical value) 960 nm

Photosensitivity (typical value) 0.55A /W

Dark current (Max.) 10000 pA

Cut-off frequency (typical value) 15 MHz

Junction capacitance (typical) 40 pF

Noise equivalent power (typical value) 1.8×10-14 W/Hz1/2

Typical values of measurement conditions Ta=25°C, sensitivity: λ = 780 nm, dark current: VR = 10 V, cut-off frequency: VR = 10 V, junction capacitance: VR = 10 V, f = 1 MHz, noise equivalent power: VR = 10 V, unless otherwise stated

Specifications:

Photosensitivity (typical value) 0.55 A/W
Dark current (Max.) 10000 pA
Rise time (typical value) 0.5μs
Junction capacitance (typical value) 40 pF
