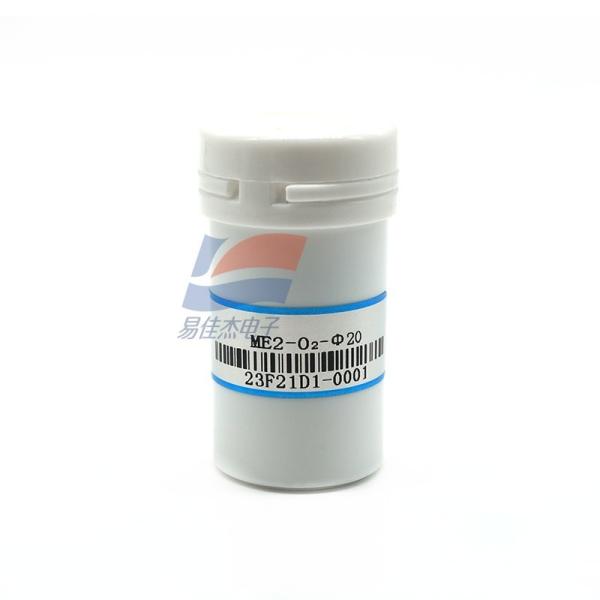

ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
Specifications
Model Number :
ME2-O2-Ф20
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5work days
Detection gas :
O2
Measurement Range :
0～25%Vo
Max detecting concentration :
30%Vol
Sensitivity :
（0.08-0.25）mA (In air)
Response time（T90） :
≤15S
Load resistance （recommended） :
100Ω
Description

ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle

ME2-O2-Ф20 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

Features:

* Low consumption

* High precision

* High sensitivity

* Wide linear range

* Good anti-interference ability

* Excellent repeatability and stability

Application:

Detecting O2 in mine, industry and environmental protection field.

Repeatability ＜2﹪output value
Stability(／month) ＜2﹪
Zero drift(-20℃～40℃) ≤1%vol
Storage temperature -20℃～50℃
Storage Humidity 0﹪～99﹪RH (no condensation)

ME2-O2-Ф20 Electrochemical Oxygen Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
