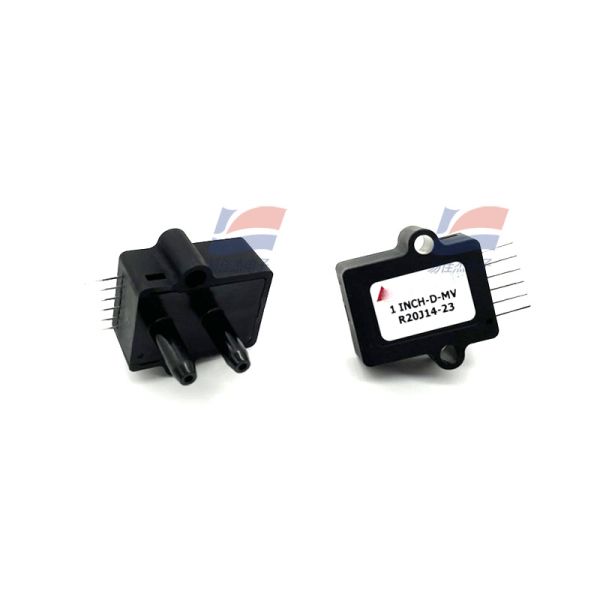

YJJ 1 INCH D-MV Pressure Control System 250pa Pressure Sensor
YJJ 1 INCH D-MV Pressure Control System 250pa Pressure Sensor
YJJ 1 INCH D-MV Pressure Control System 250pa Pressure Sensor
YJJ 1 INCH D-MV Pressure Control System 250pa Pressure Sensor
YJJ 1 INCH D-MV Pressure Control System 250pa Pressure Sensor
YJJ 1 INCH D-MV Pressure Control System 250pa Pressure Sensor
Specifications
Brand Name :
All Sensors
Model Number :
1 INCH D-MV
Place of Origin :
USA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
3 days
Packaging Details :
Disk mounting
precision :
0.5%FSS
Zero drift :
250-150 uV
Compensating temperature :
0℃ to 50℃
Operating temperature :
-20℃ to 85℃
Description

Product Description:

1 INCH D-MV Pressure Control System 250pa Pressure Sensor

Features:

millivolt output pressure sensor uses proprietary dual-chip technology to effectively reduce output offset or common-mode error and output a corrected millivolt signal with superior output offset characteristics. Compared with the traditional compensation method, the sensor can improve the output deviation error caused by ambient temperature change, heat engine stability, long-term use and position sensitivity. The sensor adopts silicon technology, MEMS technology and enhanced stress concentration structure, and the output signal of measured pressure is very linear.

This type of calibrated and temperature-compensated sensor provides the most stable output over a wide temperature range. This series of sensors can be used for pressure measurement in non-corrosive, non-ionic fluid media such as air, dry gases and other similar environments.

The output signal of the sensor is proportional to the operating voltage, and the power supply is a DC voltage not higher than +16V.

Specifications:

encapsulation Type A
Pressure type Gauge pressure, differential pressure
Pressure range 0.5 ~ 30" H2O
Output type mV

YJJ 1 INCH D-MV Pressure Control System 250pa Pressure Sensor
