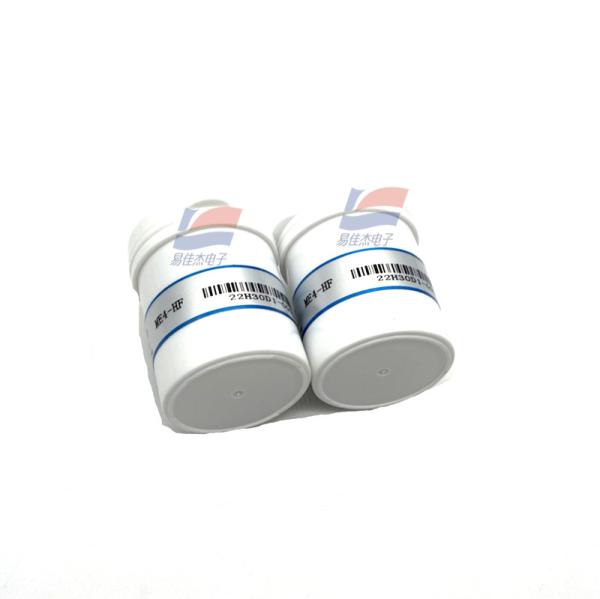

ME4-HF Hydrogen Fluoride Sensor Advanced Technology for Accurate HF Gas Detection in 0 10ppm Range
ME4-HF Hydrogen Fluoride Sensor Advanced Technology for Accurate HF Gas Detection in 0 10ppm Range
ME4-HF Hydrogen Fluoride Sensor Advanced Technology for Accurate HF Gas Detection in 0 10ppm Range
ME4-HF Hydrogen Fluoride Sensor Advanced Technology for Accurate HF Gas Detection in 0 10ppm Range
ME4-HF Hydrogen Fluoride Sensor Advanced Technology for Accurate HF Gas Detection in 0 10ppm Range
ME4-HF Hydrogen Fluoride Sensor Advanced Technology for Accurate HF Gas Detection in 0 10ppm Range
Specifications
Model Number :
ME4-HF
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5work days
Detected gas :
Hydrogen fluoride (HF)
Measuring range :
0 ~ 10ppm
Maximum measurement limit :
100ppm
Sensitivity :
(0.40±0.15) µA/ppm
Resolution :
0.1ppm
Response time (T90) :
≤90S
Description

ME4-HF Hydrogen Fluoride Sensor Is A Constant Potential Electrolytic Sensor Fluorine The Hydrogen Hydride Gas Undergoes A Series Of REDOX Reactions Inside The Sensor And Releases Charges

ME4 - HF HF type sensor is the constant potential electrolysis sensor, hydrogen fluoride gas inside the sensor in a series of REDOX reaction and release charge current formation, the size of the current is proportional to the concentration of hydrogen fluoride and follow the Faraday's law, through the test current to determine the size of the hydrogen fluoride concentration.

Sensor features:
Low power consumption, high precision, high sensitivity, wide linear range, strong anti-interference ability, excellent repeatability and stability.

Main applications:
It is widely suitable for testing hydrogen fluoride in industrial and environmental protection fields.

Zero drift (-20℃~40℃) ≤0.2ppm
Temperature range -20℃~50℃
Humidity Range 15% to 90%RH Non-condensing
Pressure range Standard atmospheric pressure ±10%
Service life 2 years (in the air)
