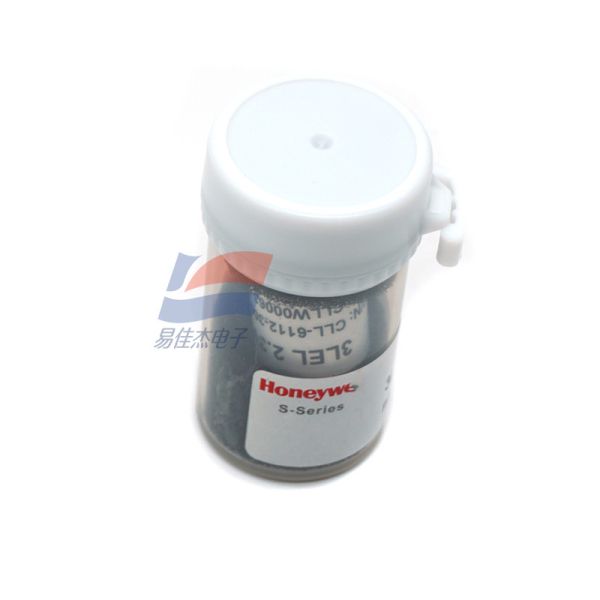

CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
Specifications
Model Number :
CLL-6112-300
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
3-5workingdays
Product model :
CLL-6112-300
Detected gases :
Most combustible gases and vapors
Range :
0-100%LEL
Response time (T90) :
< 20 seconds (methane)
Linear :
0-75%LEL
Long-term stability :
<±5% signal value/month
Baseline drift :
<±5%LEL methane/month
Warranty period :
12 months after delivery
Description

CLL-6112-300 Classic Line 3R-2.3V Combustible gas sensor 0-100% 3LEL

Product features:


Excellent impact resistance
Excellent resistance to high concentration methane impact
Excellent long-term stability
Excellent resistance to H2S toxicity
Excellent resistance to HMDS toxicity

Instructions for use:
1. All the above performance specifications are measured at ambient conditions: temperature 20 ℃, relative humidity 50%RH, one atmospheric pressure (100 kPa or ambient pressure).
2. Target gas is recommended for calibration. In the case of calibration with cross-sensitive gases, we do not guarantee the accuracy of calibration and measurement.
3. The cross sensitivity will fluctuate by +/ -30% and may vary with the production batch of the sensor and the life of the sensor.
4. The cross-sensitivity includes but is not limited to the above gases, and the sensor may respond to other gases.

Operating temperature -20oC to 50oC
Working humidity 15-90%RH (non-condensing)
working voltage 2.3V D.C
Working current 110±10 mA
Storage environment No silicon, lead, tin, and sulfur

CLL-6112-300 Classic Line 3R-2.3V Combustible Gas Sensor 0-100% 3LEL
