YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
Specifications
Brand Name :
YJJ
Model Number :
NE4-NO2 NE-NO2
Place of Origin :
Japan
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500
Delivery Time :
5 to 8 working days
Packaging Details :
Palletized
concentration range :
0.0 - 20 ppm
Output voltage :
600 + 150 nA /ppm
Repeatability :
within 2%
Detection limit :
0.1PPM
Response time :
25 seconds
Operating temperature range :
-20 - +50℃
Description

Product Description:

YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems

Features:

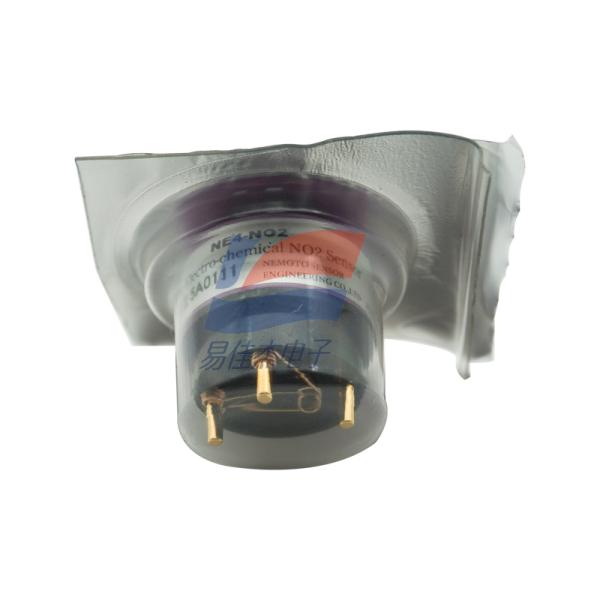

NE4-N02 is an electrochemical nitrogen dioxide gas sensor developed for use in underground parking garages. Since the detected gas is an oxidizing gas, the output signal is different from that of reducing gases. It is a reverse signal, but the linearity of the signal is very good. Additionally, among the nitrogen oxide series, only nitrogen dioxide and dinitrogen tetroxide have the ability to be detected. Not all nitrogen oxides can be detected. Please note this. Characteristics

Item characteristic determination concentration range: 0.0 - 20 ppm

Output voltage: 600 + 150 nA /ppm (signal and reducing gas in opposite directions)

Repeatability: within 2%

Detection limit: 0.1 ppm

Response time: 25 seconds or less for 90% response

Zero point temperature characteristic: within 0.2 ppm (-20 - +50℃)

Operating temperature range: -20 - +50℃

Specifications:

Measured volume 0.1 liters (L)
Single response time < 1 second (s)
Total response time < 10 seconds (s)
DC supply voltage 5.0 Min

YJJ NE4-NO2 NE-NO2 Electrochemical Gas Sensors Are Used In Underground Garage Alarm Systems
