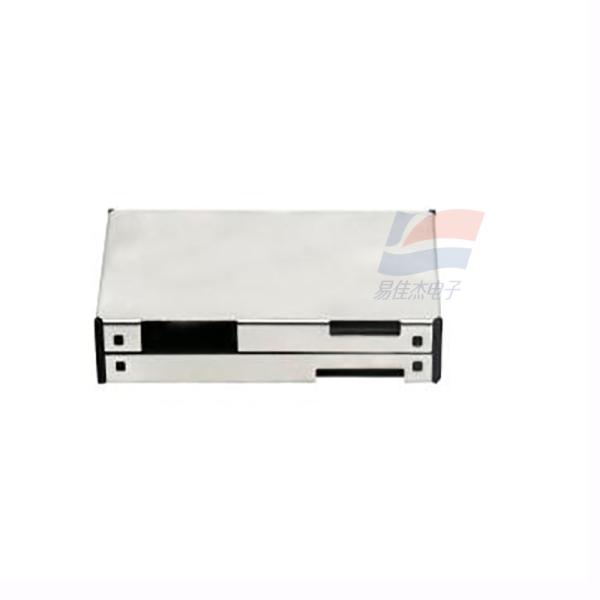

APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance
APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance
Specifications
Brand Name :
YJJ
Model Number :
APM10
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000/pcs/month
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Measuring range :
0.3-10um
Concentration range :
0-1000m3
Measurement accuracy :
±15m3
Power supply voltage (DC) :
4.75-5.25V
Description

APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance

APM10 contains a laser emitting element and a light detecting element. The two elements are placed in a cross-shaped manner inside the housing. The light detecting element collects scattered light intensity in real time. When air flows through the sensor cavity, the particles in the cavity air cause laser scattering. The light detecting element collects the change in scattered light intensity. The microprocessor calculates the equivalent particle size of the particles and the number of particles of different sizes per unit volume based on the Mie (MIE) theory.

Specification:

Working current 50-100mA
Data refresh frequency 1sec
Lifespan greater than 3
Dimensions 49*31.5*10.8 mm
Working temperature -10~50℃
Storage temperature -30~70℃

APM10 Laser Particle Sensor Digital Output Small Size Stronger Anti Interference Performance
