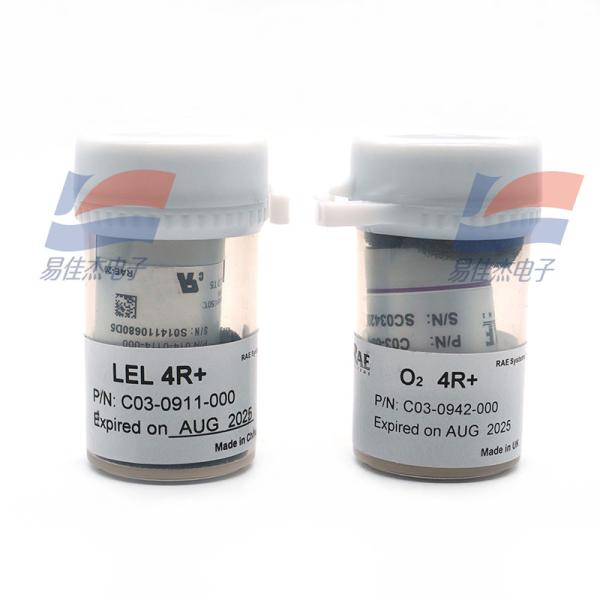

C03-0942-000 Electrochemical Oxygen Gas Sensor For Detecting Oxygen Concentration In Air

Product Uses:

The C03 - 0942 - 000 gas sensor is an oxygen - detecting sensor, mainly used for detecting the oxygen concentration in the air. It is compatible with gas monitors such as ToxiRAE Pro, MultiRAE Lite, MultiRAE, MultiRAE Benzene, and MultiRAE Pro. It can be applied in various environments that require oxygen concentration monitoring, such as industrial safety monitoring, environmental quality control, and workplace safety protection, to ensure that the oxygen content in the air is within a safe range.

Product Features:

• High - precision Detection: With an electrochemical sensor type, it has a measurement range of 0 to 30% volume and a resolution of 0.1% volume, which can accurately measure the oxygen concentration in the air.
• Fast Response: The response time (T90) is 15 seconds, which can quickly detect the change of oxygen concentration and provide timely feedback.
• Good Stability: There is no bias, and it reaches equilibrium within 10 minutes after installation. The operating life in the air is 2 years, and the drift is small, which can ensure the accuracy and reliability of long - term detection.
• Wide Operating Temperature Range: The operating temperature range is - 4°F to 122°F (- 20°C to 50°C), which can adapt to different environmental temperature conditions.
• Simple Calibration: It can be calibrated with ambient air (20.9% oxygen) or 18% O₂, and the zero - gas is 99.9% N₂, which is convenient for field calibration and maintenance.
• Good Compatibility: It is compatible with a variety of gas monitors of RAE Systems, such as ToxiRAE Pro and MultiRAE series, which is convenient for system integration and expansion.
