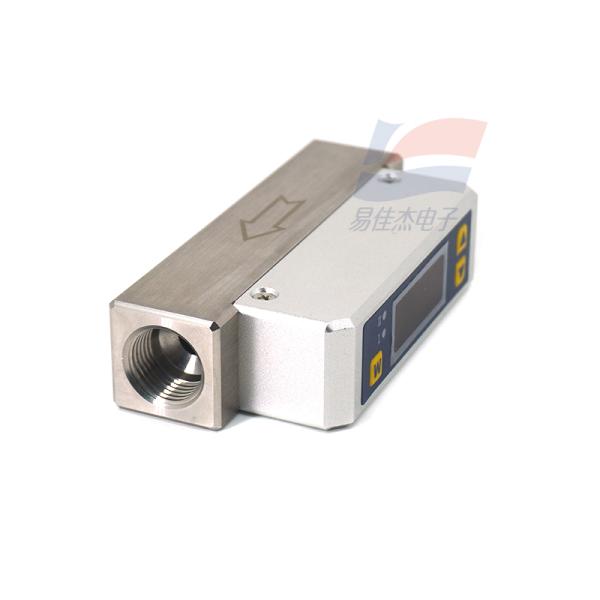

MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
Specifications
Model Number :
MF4708-N3-50-AB-A
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Measurement Range :
0–50 SLPM
Accuracy :
±(2.0% + 0.5% F.S.)
Repeatability :
±0.75%
Response Time :
<100 ms
Operating Pressure :
1.0 MPa (145 psi)
Power Supply :
8–24 VDC (35 mA typical)
Description

MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring

Product Features:

  1. High Precision: Utilizes MEMS thermal mass flow sensing technology for accurate measurement across the full range .
  2. Wide Application: Supports dry, clean gases such as air, oxygen, nitrogen, argon, and carbon dioxide .
  3. Fast Response: Enables real-time monitoring of flow variations, critical for dynamic processes.
  4. Diverse Outputs: Offers RS485, 4–20 mA, and pulse outputs for seamless integration with PLCs, SCADA systems, or data loggers .
  5. Robust Design: Built with corrosion-resistant materials and IP65 protection for harsh industrial environments.
  6. Low Pressure Drop: Minimizes energy loss in pipeline systems.
  7. User-Friendly Interface: Optional LCD display for real-time visualization of flow rate and cumulative flow .
  8. Customizable Options: Supports tailored calibration, pressure ratings, and mechanical interfaces.

Applications:

  • Medical: Oxygen therapy systems, anesthesia machines.
  • Industrial: Process gas control, compressed air monitoring, petrochemical plants.
  • Environmental: Air quality analysis, emissions monitoring.
  • Food & Beverage: Carbon dioxide dosing in bottling lines.

Measurement Range 0–50 SLPM (Standard Liter per Minute)
Accuracy ±(2.0% + 0.5% F.S.)
Repeatability ±0.75%
Response Time <100 ms
Operating Pressure 1.0 MPa (145 psi)
Temperature Range -10°C to +55°C (operating); -10°C to +65°C (ambient)
Humidity Range 5–95% RH (non-condensing)
Output Signals - RS485 communication (Modbus RTU)
- 4–20 mA analog
- Pulse output
Power Supply 8–24 VDC (35 mA typical)
Interface Type NPT 3/8" (customizable to BSPT or other standards)
Calibration Air @ 20°C, 101.325 kPa
Material Stainless steel 316L (wetted parts)
Dimensions Φ25 mm × 80 mm (customizable)
Weight 120 g
