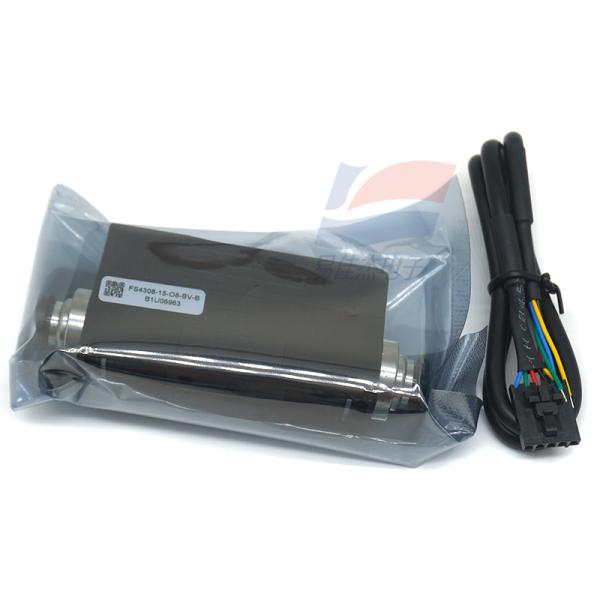

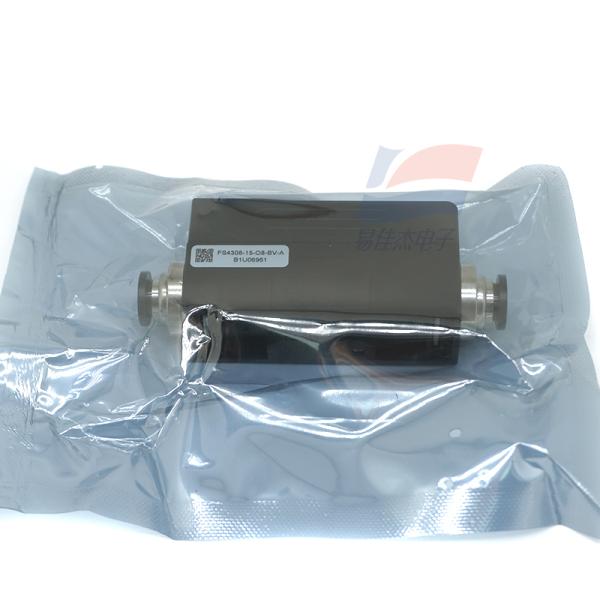

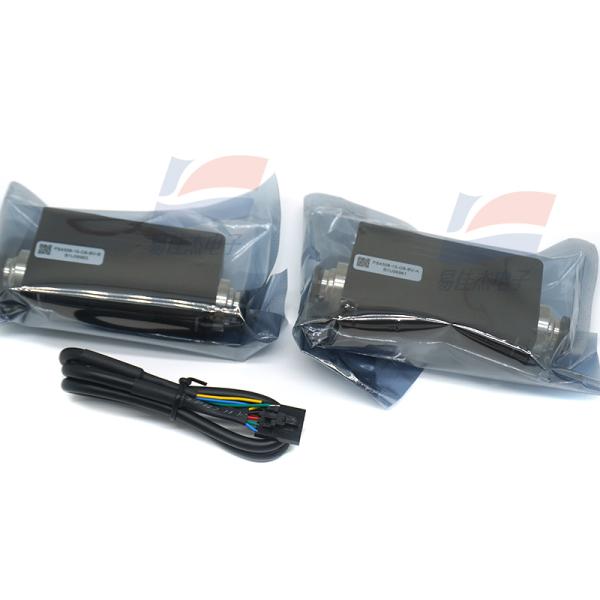

FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control
Specifications
Model Number :
FS4308-15-O8-BV-A
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Flow Range :
0–15 SLPM
Accuracy :
±(1.5% of reading + 0.5% of full scale)
Repeatability :
±0.5% of full scale
Response Time :
<50 ms
Operating Pressure :
Up to 0.8 MPa (116 psi)
Output Signal :
0.5–4.5V DC (linear) or RS232/RS485
Description

FS4308-15-O8-BV-A Gas Mass Flow Sensor For Laboratory Gas Chromatography Process Control

Key Features:

  1. MEMS Technology: Ultra-miniature thermal flow sensor chip for high sensitivity and stability.
  2. Wide Dynamic Range: 100:1 turndown ratio for versatile applications.
  3. Low Pressure Drop: Optimized flow path design reduces system backpressure.
  4. Multiple Outputs: Configurable analog or digital interfaces for integration flexibility.
  5. Plug-and-Play: Pre-calibrated for air; custom gas calibration available upon request.
  6. Compact Design: Surface-mountable or inline installation options.

Applications:

  • Medical: Anesthesia machines, ventilators, oxygen concentrators.
  • Industrial: Laser cutting, gas mixing systems, semiconductor manufacturing.
  • Environmental: Air quality monitoring, emissions testing.
  • Research: Laboratory gas chromatography, process control.

Flow Range 0–15 SLPM
Accuracy ±(1.5% of reading + 0.5% of full scale)
Repeatability ±0.5% of full scale
Response Time <50 ms
Operating Pressure Up to 0.8 MPa (116 psi)
Output Signal 0.5–4.5V DC (linear) or RS232/RS485
Power Supply 8–24 V DC
Power Consumption <50 mA
Operating Temperature -10°C to +55°C
Weight ~50 g
