Product Description:

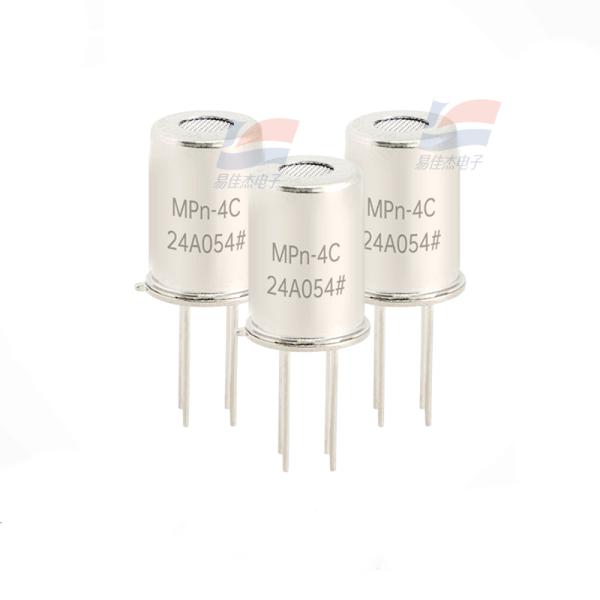

YJJ MPn-4C Combustible Gas Sensor Is Used As A Gas Leakage Detector In Various Places

Features:

MPn-4C is manufactured using a multi-layer thick-film manufacturing process. It integrates heating electrodes, measurement electrodes, and a metal oxide semiconductor gas-sensitive layer on an Al2O3 ceramic substrate, and encapsulates it in a metal housing. When there is a detected gas in the ambient air, the conductivity of the sensor will change. The higher the concentration of the gas, the higher the conductivity of the sensor. A simple circuit can convert this change in conductivity into an output signal corresponding to the gas concentration. This product has excellent anti-interference ability for common gases such as alcohol and acetic acid in the usage scenarios, such as gas leak monitoring devices for homes, factories, and commercial use, fire prevention/safety detection systems; gas leak alarms, gas leak detectors, etc.

Product Model: MPn-4C

Product Type: Planar Semiconductor Sensor

Standard Packaging: Metal Packaging

Detected Gases: Methane, Natural Gas, Biogas

Detection Concentration: 300 - 10,000 ppm (for Methane, Natural Gas)

Standard Circuit Conditions: Loop Voltage VC ≤ 24V DC

Heating Voltage VH 5.0V ± 0.1V AC or DC

Load Resistance RL Adjustable

Characteristics of the Gas Sensing Element under Standard Test Conditions Heating Power PH ≤ 350mW

Sensitive Body Resistance RS 1KΩ - 20KΩ (at 4000ppm Methane)

Sensitivity S Rs (in air) / Rs (in 4000ppm Methane) ≥ 5

Concentration Slope α ≤ 0.6 (R4000ppm / R1000ppm Methane)

Standard Test Conditions Temperature, Humidity 20℃ ± 2℃; 55%±5%RH

Standard test circuit VC: 5.0V ± 0.1V; VH: 5.0V ± 0.1V

Preheating time Not less than 48 hours

Oxygen concentration 21% (not less than 18%, (The oxygen concentration will affect the initial value, sensitivity and repeatability of the sensor. Please consult for use when operating at low oxygen concentrations))

Service life 10 years
