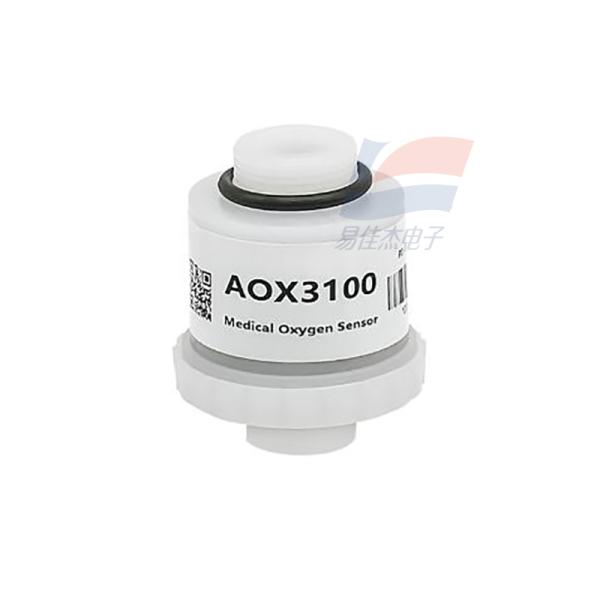

YJJ AOX3100 Electrochemical Full-Range Lead-Free Oxygen Sensor Oxygen Battery with Temperature Compensation
YJJ AOX3100 Electrochemical Full-Range Lead-Free Oxygen Sensor Oxygen Battery with Temperature Compensation
YJJ AOX3100 Electrochemical Full-Range Lead-Free Oxygen Sensor Oxygen Battery with Temperature Compensation
YJJ AOX3100 Electrochemical Full-Range Lead-Free Oxygen Sensor Oxygen Battery with Temperature Compensation
YJJ AOX3100 Electrochemical Full-Range Lead-Free Oxygen Sensor Oxygen Battery with Temperature Compensation
YJJ AOX3100 Electrochemical Full-Range Lead-Free Oxygen Sensor Oxygen Battery with Temperature Compensation
Specifications
Brand Name :
YJJ
Model Number :
AOX3100
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500
Delivery Time :
5 to 8 working days
Packaging Details :
Box pack
Output voltage :
9 - 14 mV (in air)
Measurement range :
0 - 100%
Response time (T) :
0 - 100%
Linearity :
Full-scale linearity
Temperature compensation :
< 2%0
Load resistance :
> 10kQ
Description

Product Description:

YJJ AOX3100 Electrochemical Full-Range Lead-Free Oxygen Sensor Oxygen Battery with Temperature Compensation

Features:

AOX3100 full-range lead-free oxygen sensor operates without an external power supply. It has undergone professional and accurate product calibration and temperature compensation at the factory. It can be used as a sensing component in oxygen analyzers, such as oxygen generators, control devices for medical ventilators, anesthesia equipment, incubators, etc.

Working principle: Differential electrochemical

Output voltage: 9 - 14 mV (in air)

Measurement range: 0 - 100%

Response time (T): 0 - 100%

Linearity: Full-scale linearity

Temperature compensation: < 2%0, equivalent value (0~40°C)

Load resistance: > 10kQ

Interface: Molex 3-pin connector (2.54mm) (MOLEX 22-29-2031)

Recommended matching interface: Molex housing (MOLEX22-01-2035)

Molex crimp terminal (MOLEX08-45-0110)

Shell material: White HDPE

Weight: Approximately 30 grams

Operating temperature range: 0 - 50°C

Recommended storage temperature: 5 - 15°C

Operating pressure range: 0.5 - 2.0 bar

Operating humidity range: 0 - 99% RH (no condensation)

100%0, long-term drift in the environment

Expected lifespan: 24 months

Warranty period: 12 months

Specifications:

Minimum Operating Temperature‌ -40 °C
Maximum Operating Temperature‌ +85 °C
Series‌ AOX3100
Weight‌ Approximately 30 grams
