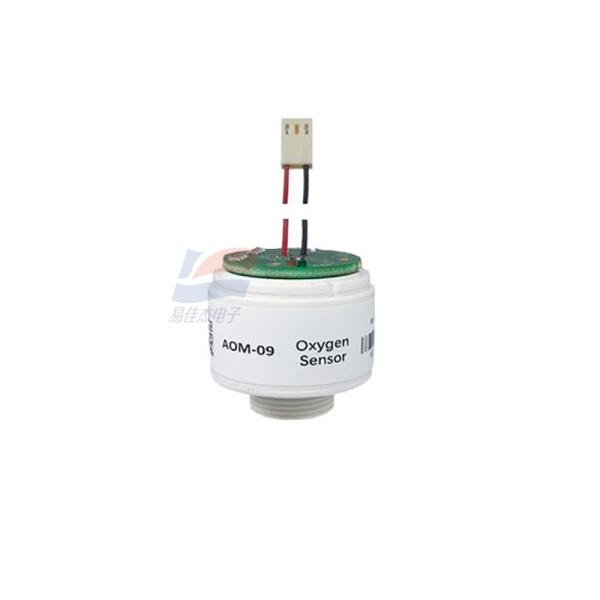

AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment
AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment
AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment
AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment
Specifications
Brand Name :
IRS4
Model Number :
AOM-09
Place of Origin :
CN
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Output Voltage :
9~13mV (in air)
Measurement Range :
0~100 vol.% O₂
Response Time (T90) :
<15s
Load Resistance :
>10kΩ
Description

AOM-09 Oxygen Sensor Is A Specialized Electrochemical Sensor Designed For Measuring Oxygen Concentration In Medical Equipment

The AOM-09 oxygen sensor is a specialized electrochemical sensor designed for measuring oxygen concentration in medical equipment. It features a molded main body design, with characteristics such as fast response and long service life.

The AOM-09 oxygen sensor operates without the need for an external power supply. All units undergo professional and accurate product calibration and temperature compensation before leaving the factory. It can be used as a sensing component in oxygen analyzers, such as oxygen concentrator control devices, medical ventilators, anesthesia equipment, incubators, etc.

Product Model AOM-09
Working Principle Partial Pressure Electrochemical
Output Voltage 9~13mV (in air)
Measurement Range 0~100 vol.% O₂
Response Time (T90) <15s
Linearity Full-scale linearity
Temperature Compensation <2% O₂ equivalent (0~40°C)
Load Resistance >10kΩ
Interface Molex 3-pin connector (2.54mm, with connecting wire)
Housing Material White ABS
Weight Approximately 40g
Operating Temperature Range 0~50°C
Operating Pressure Range 0.5~2.0Bar
Operating Humidity Range 0~99% RH (non-condensing)
Long-term Drift <5% (voltage attenuation per year, in 100% O₂ environment)
Service Life 1.5×10⁶ % O₂ hours (at 20°C)
Shelf Life 13 months from the date of shipment
