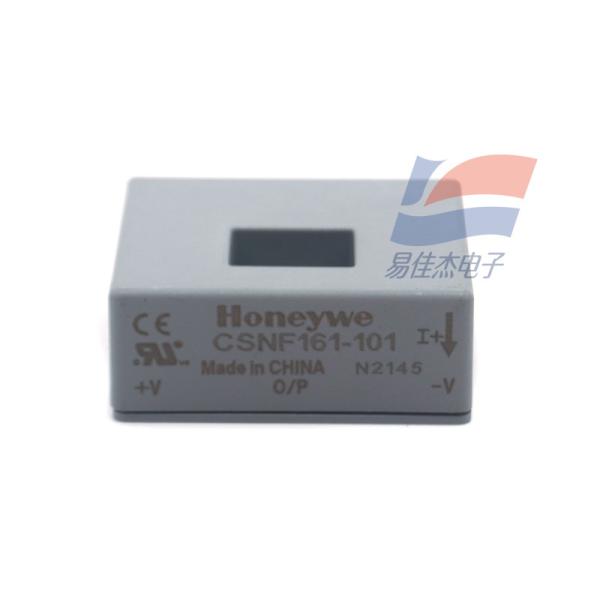

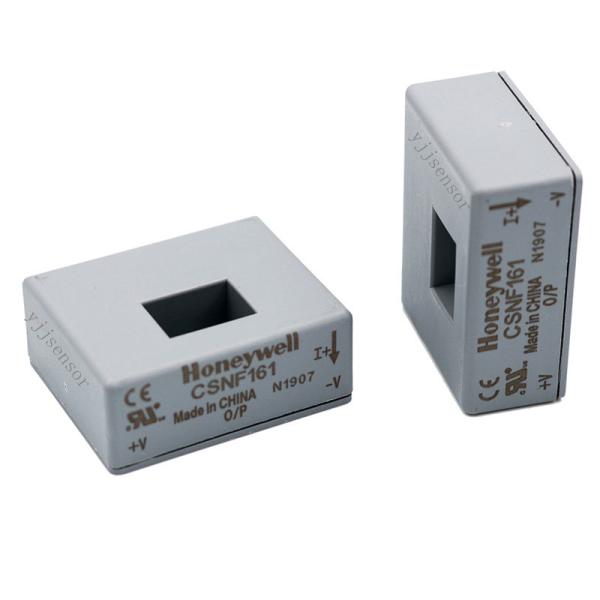

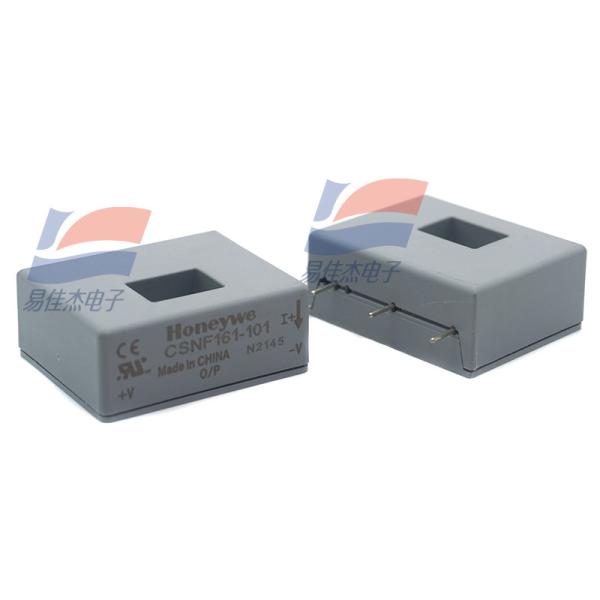

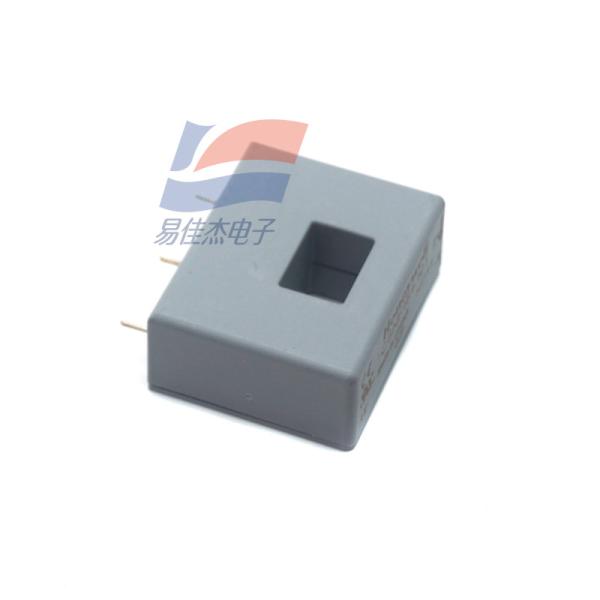

CSNF161 CSNF161-101 Closed-loop Current Sensor For Feedback Control Systems

Basic Information:

  • Product Model: CSNF161-101
  • Sensor Type: Closed-loop current sensor based on Hall effect and zero-flux balance method (feedback system), which maintains zero magnetic flux in the sensor core at all times.

Measurement Range:

  • Rated Current: 100A
  • Measurable Current Range: ±150A (supports DC, AC, and pulse current measurement)

Product Features:

  • High Precision: Accuracy up to ±0.5%
  • Fast Response: Response time < 0.5μs
  • Electrical Isolation: High-degree electrical isolation between primary and secondary circuits; isolation voltage: 3kVRMS/50kHz/1min
  • Strong Overload Capability: Capable of withstanding high overload currents
  • Wide Operating Temperature Range: -40℃ to +85℃

Operating Conditions:

  • Power Supply Voltage: ±12V to ±15V DC (±5%)
  • Coil Resistance: 30Ω

Application Fields:

  • Variable Frequency Drives: Monitors current in variable frequency drives to ensure normal operation and protect equipment
  • Overcurrent Protection: Real-time current monitoring in circuits to trigger protection mechanisms when current exceeds set values
  • Power Supply Systems: Monitors output current of power supplies to ensure stable supply and protection
  • Feedback Control Systems: Provides accurate current information for feedback control systems to achieve precise control
  • Robotics: Suitable for robot drive systems to monitor motor current, aiding in precise motion control and fault diagnosis
  • Welding Equipment: Monitors current in welding equipment to ensure welding quality and equipment safety

Basic Information Product Model CSNF161 - 101
Sensor Type

Closed - loop current sensor based on

Hall effect and zero - flux balance method

(feedback system)
Measurement Range Rated Current 100A
Measurable Current Range

±150A (supports DC, AC, and pulse

current measurement)
Product Characteristics Accuracy ±0.5%
Response Time <0.5μs
Electrical Isolation

High - degree electrical isolation between

primary and secondary circuits; isolation

voltage: 3kVRMS/50kHz/1min
Overload Capability Strong overload - resistant
Operating Temperature Range -40℃ to +85℃
Operating Conditions Power Supply Voltage ±12V to ±15V DC (±5%)
Coil Resistance 30Ω
Physical Characteristics Package Type Module, single - pass through
Dimensions

Width: 36.5mm, External length/

height: 29.8mm,

External depth: 14.5mm
Mounting Type PCB mount, through - hole
Housing Material PBT
Electrical Characteristics Current Consumption 10mA (nominal), 14mA (max)
Output Type Current
Output Current 100mA
Linearity ±0.1%
Frequency Range 0Hz - 150kHz
Other Information RoHS Compliance Compliant
Reach SVHC No SVHC
