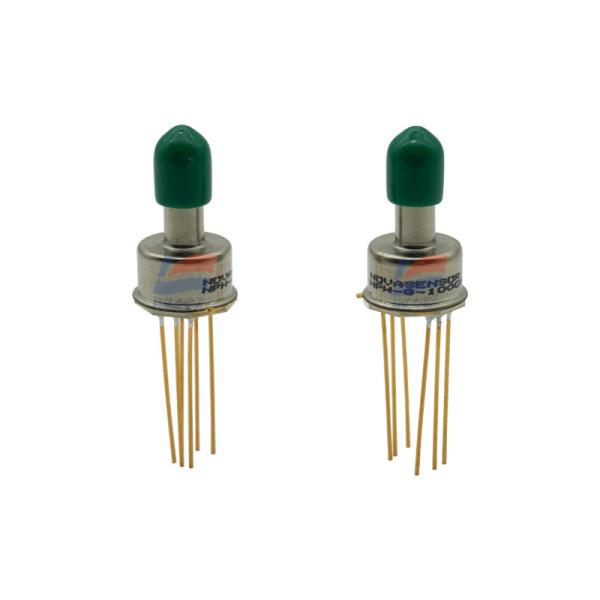

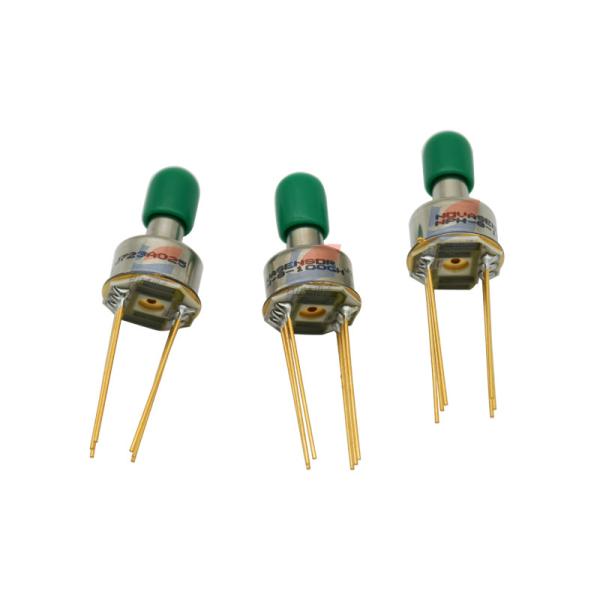

YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
Specifications
Brand Name :
NOVA
Model Number :
NPH-8-200AH
Place of Origin :
USA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
22000
Delivery Time :
5 to 8 working days
Packaging Details :
Palletized
Pressure type :
Absolute pressure
Work pressure :
200kpa
Output type :
Simulation
Output Voltage :
3.3
Accuracy :
0.04
Characteristic :
Digital output
Description

Product Description:

NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments

Features:

Parameter Name Attribute Value Product Attribute Attribute Value

Manufacturer

Manufacturer: Amphenol (Anfenuo) Product types

Product Category Board Mount Pressure Sensors

RoHS In Transition

Operating Pressure 200 kPa

Type of stress Pressure Type Absolute

Accuracy: 0.2%

Packaging / Enclosure Package / Case TO-8-6

Minimum operating temperature Minimum Operating Temperature - 40 C

Maximum operating temperature Maximum Operating Temperature + 125 C

Series

Packaging Tray

Output Voltage 100 mV

Working power supply current

Operating Supply Current 1.5 mA

Factory packaging quantity Factory Pack Quantity 1

Mfr Amphenol NovaSensor
Output 0 mV ~ 100 mV
Series NPH
Package Bulk
Accuracy ±0.1%
Features Temperature Compensated
Port Size Male - 0.19" (4.83mm) Tube
Port Style Barbless
Output Type Wheatstone Bridge
Applications Board Mount
Mounting Type Through Hole
Pressure Type Absolute
Package / Case TO-233AA, TO-8-3 Metal Can
Product Status Active
Maximum Pressure 116.03PSI (800kPa)
Voltage - Supply -
Termination Style PC Pin
Operating Pressure 29.01PSI (200kPa)
Base Product Number NPH-8
Operating Temperature -40°C ~ 125°C
Supplier Device Package TO-8

Specifications:

Maximum Pressure 116.03PSI (800kPa)
Base Product Number NPH-8
Operating Temperature -40°C ~ 125°C
Supplier Device Package TO-8

YJJ NPH-8-200AH TO-8 Absolute Pressure Solid-State Pressure Sensor With 200KPA For Measuring Instruments
