Specifications
Brand Name :
Figaro
Model Number :
TGS2612-D00
Place of Origin :
Japan
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Circuit voltage (VC) :
5.0V ± 0.2V AC/DC
Heater voltage (VH) :
Heater voltage (VH)
Inrush heater current (VH=5.0V) :
100mA max.
Heater resistance (room temp) :
approx 59Ω
Load resistance (RL) :
variable (0.45kΩ min.)
Sensor power dissipation (PS) :
≤15mW
Description

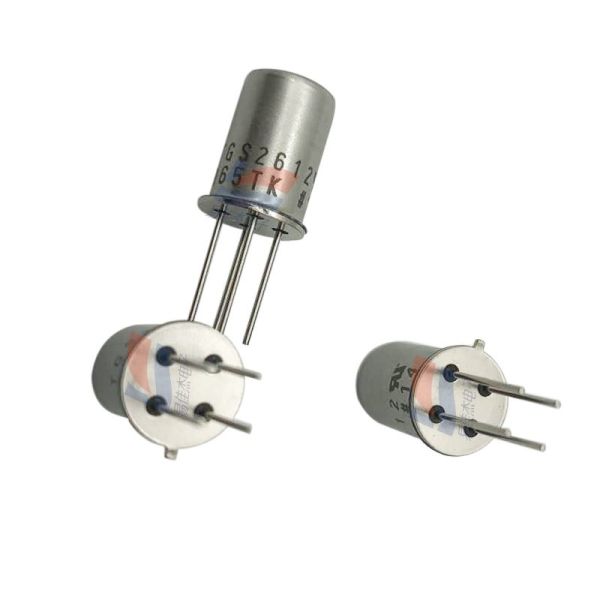

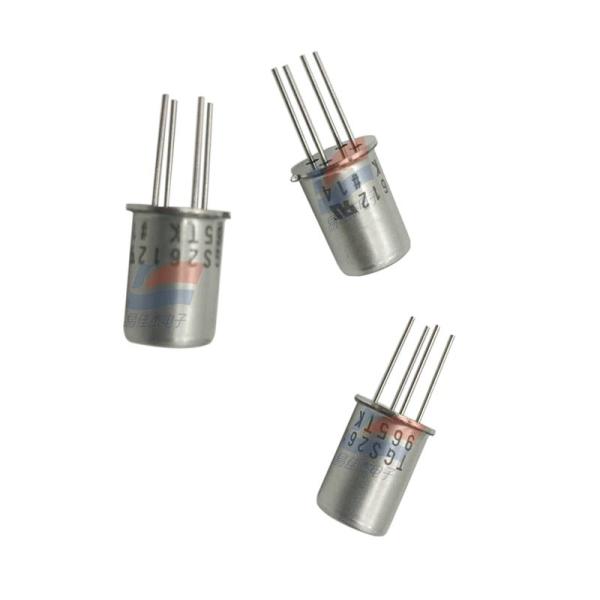

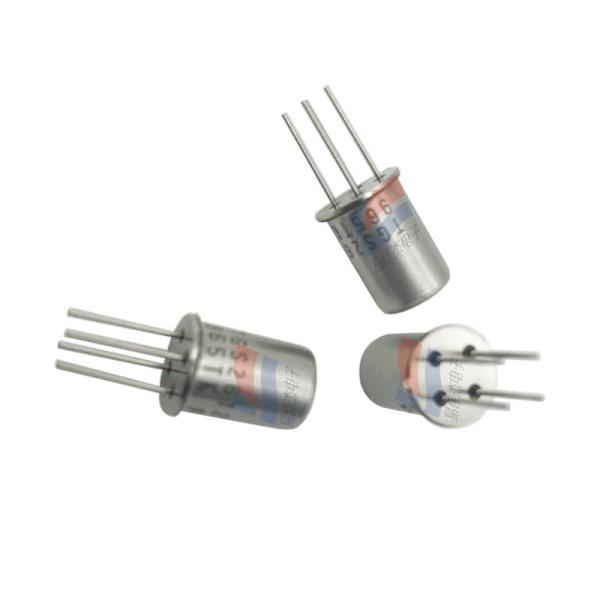

TGS2612-D00 Methane and LP Gas Sensor

Product Description:

Methane and LP Gas sensor TGS2612

Description:
The TGS 2612 has high sensitivity to methane, propane and butane, making it ideal for LNG and LPG monitoring. Due to its low sensitivity to alcohol vapors (a typical interference gas in the residential environment), the sensor is ideal for consumer market gas alarms

Specifications:
1) Target gases : Methane, propane, iso-butane
2) range:1~25%LEL of each gas
3) sensitivity (change ratio of Rs) : 0.50 ~ 0.65
4) Circuit Voltage:5.0±0.2V DC/AC
5) Heater Voltage:5.0±0.2V DC/AC

Features:
1) Low power consumption
2) Similar sensitivity at same %LEL levels for both methane and LP gas
3) Long life and low cost
4) Uses simple electrical circuit

Applications:
Residential LNG and LPG alarms ;
Portable combustible gas leak detectors;
Detectors for LNG and LPG

Operating & storage temperature -40˚C ~ +70˚C
Optimal detection concentration 1~25%LEL of each gas
Sensor resistance (5000ppm methane) 0.68kΩ ~ 6.8kΩ
Sensor resistance ratio (β) 0.50 ~ 0.55
Heater current (RH) 56 ± 5mA
Heater power consumption (PH) approx. 280mW
