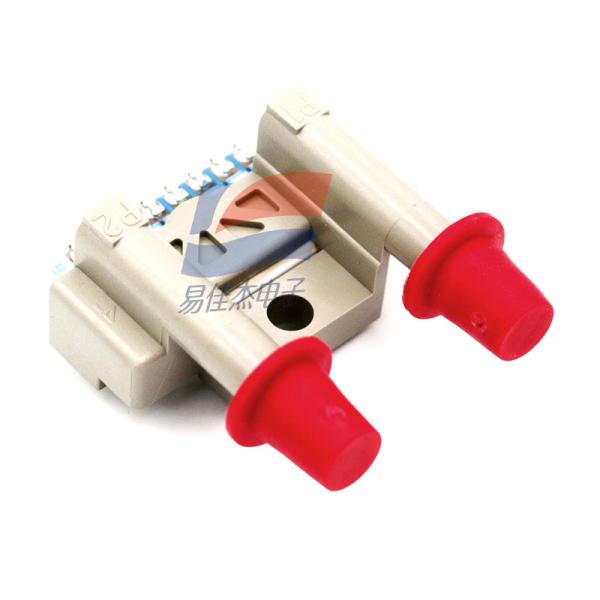

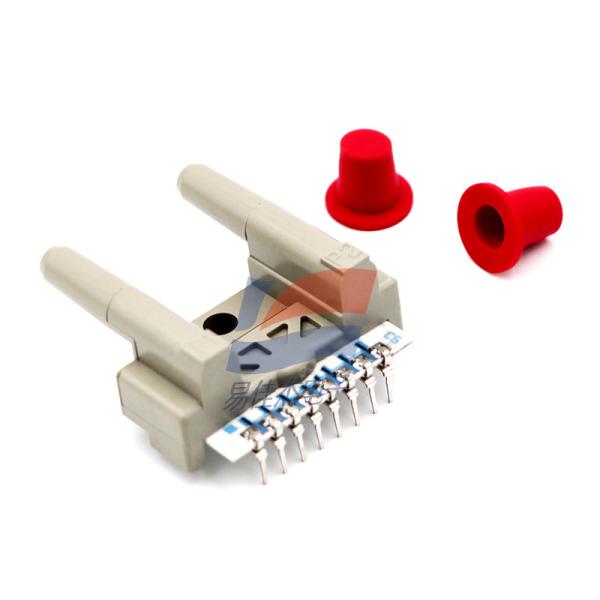

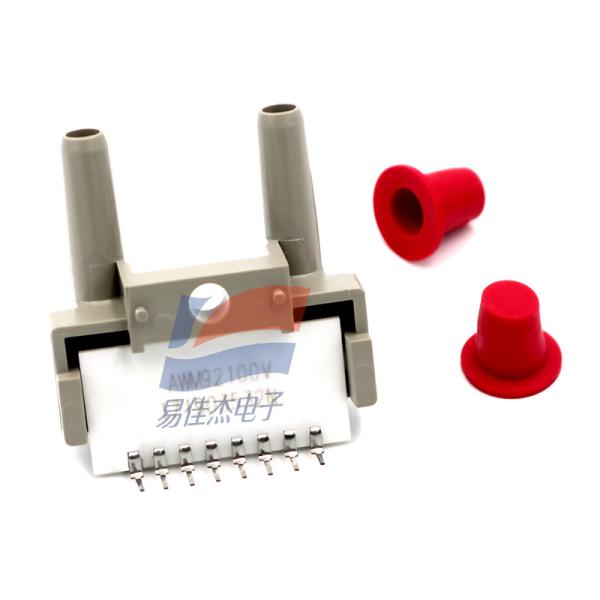

AWM92100V Air Flow Sensor ±200 SCCM Flow Range Ideal for Air Calibration Gas Measurement
AWM92100V Air Flow Sensor ±200 SCCM Flow Range Ideal for Air Calibration Gas Measurement
AWM92100V Air Flow Sensor ±200 SCCM Flow Range Ideal for Air Calibration Gas Measurement
AWM92100V Air Flow Sensor ±200 SCCM Flow Range Ideal for Air Calibration Gas Measurement
AWM92100V Air Flow Sensor ±200 SCCM Flow Range Ideal for Air Calibration Gas Measurement
AWM92100V Air Flow Sensor ±200 SCCM Flow Range Ideal for Air Calibration Gas Measurement
Specifications
Brand Name :
Honeywell
Model Number :
AWM92100V
Place of Origin :
USA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Type :
mass flow
Flow range :
±200 SCCM
Excitation voltage3 :
8.0 Vdc min./10 Vdc ±0.01 Vdc typ./15 Vdc max.
Power consumption :
50 mW max.
Calibration gas :
air
Full scale output :
77 mV ±32 mV
Description

AWM92100V Air Flow Sensor

Airflow Sensors :

AWM90000 Series microbridge mass airflow sensors are available in two versions, mass flow and differential pressure.

The AWM92100V has a flow range of ±200 SCCM with a pressure drop of only 0.49 mbar | 49 Pa | 0.007 psi, typically. The AWM92200V is a differential pressure version that has a range of ±2 inH2 O.

The AWM90000 Series sensors have a 1 ms response time, operate with a supply voltage from 8.0 Vdc to 15.0 Vdc, while consuming only 50 mW of power. The compact plastic package will withstand a maximum overpressure of 1720 mbar | 72 kPa | 25 psi without compromising performance.

The sensor is well suited for use in portable devices and battery powered applications.

The AWM90000 Series provides customers with a combination of time-proven reliability, repeatable flow sensing, and the ability to customize the sensor functions to meet their specific application needs.

MedICAL:

• Continuous Positive Airway Pressure (CPAP) equipment

• Sleep apnea monitors

• Oxygen conservers

• Oxygen concentrators

• Nebulizers • Spirometers

INdUSTRIAL :

• Variable Air Volume (VAV) damper control

• Clogged filter detection

• Fuel to air ratio sensing

• Leak detection equipment

Weight 5,6 g [0.20 oz]
Shock 100 g, 6 ms
Vibration 20 g, 10 Hz to 2000 Hz
Overpressure 1720 mbar | 172 kPa | 25 psi max.
