AWM3150V Air Flow Sensor 50 mW Power Consumption and 3.0 msec Maximum Response Time for Industrial
AWM3150V Air Flow Sensor 50 mW Power Consumption and 3.0 msec Maximum Response Time for Industrial
AWM3150V Air Flow Sensor 50 mW Power Consumption and 3.0 msec Maximum Response Time for Industrial
AWM3150V Air Flow Sensor 50 mW Power Consumption and 3.0 msec Maximum Response Time for Industrial
AWM3150V Air Flow Sensor 50 mW Power Consumption and 3.0 msec Maximum Response Time for Industrial
AWM3150V Air Flow Sensor 50 mW Power Consumption and 3.0 msec Maximum Response Time for Industrial
Specifications
Brand Name :
Honeywell
Model Number :
AWM3150V
Place of Origin :
USA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Recommended excitation :
10 ± 0.01 Vdc
Power consumption :
50 mW
Null voltage :
1.00 ± .10 Vdc
Repeatability and hysteresis, max. :
± 1.0% reading
Maximum Response Time :
3. 0 msec
Description

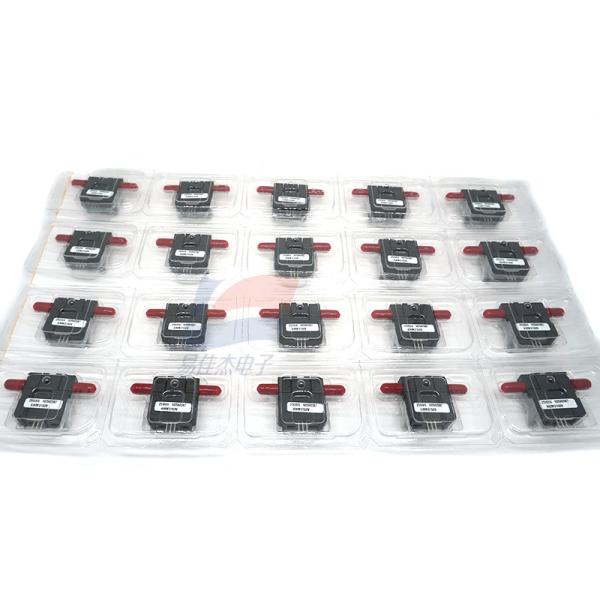

AWM3150V Air Flow Sensor

GENERAL INFORMATION :

AWM3000 Series Microbridge Mass Airflow Sensors operate on the theory that airflow directed across the surface of a sensing element causes heat transfer. Output voltage varies in proportion to the mass of air or other gas flowing through a given sensor's inlet and outlet ports. Current sink/source. Maximum current ratings are 10 mA sinking and 20 mA sourcing, governed by an LM224 operational amplifier in the final stage of the instrumentation amplifier.

MEDIA CONTAMINATION :

Media flowing through the sensor should be free of condensing moisture and particulate contaminants. An inexpensive 5 micron filter upstream of the sensing element substantially reduces the risk of damage due to contaminants.

CLEANING:

Cover the ends of the ports when cleaning. Certain solvents may attack the epoxy used to seal the chip tubes to the ceramic substrate.

SOL DERING INSTRUCTIONS:

Please note: sensor should be securely attached to pr inted circuit boar d before soldering. Hand soldering: Use temperature controlled s S t m. Use Type R flux r oldering iron with 3,2 mm (1/8 in.) diameter tip. et temperature at 400 °C [750 °F]. Hold tip on erminal for 5 seconds maximu osin core solder and hand cle [4 an after soldering. Wave soldering: Set solder temperature at 250 °C 80 °F) maximum. Run belt at minimum of 1.54 m [5 ft] per minute. Cover tube ends when cleaning.

Storage Temperature range -40 °C to 90 °C [-40 °F to 194 °F]
Termination 0,635 mm [0.025 in] square
Weight 10,8 g [0.381 oz]
Shock rating (5 drops, ea. of 6 axes) 100 g peak
Maximum Overpressure 25 psi
Output voltage @ laser trim point 1.5 Vdc @ 5 sccm

AWM3150V Air Flow Sensor 50 mW Power Consumption and 3.0 msec Maximum Response Time for IndustrialAWM3150V Air Flow Sensor 50 mW Power Consumption and 3.0 msec Maximum Response Time for Industrial
