Product Description:

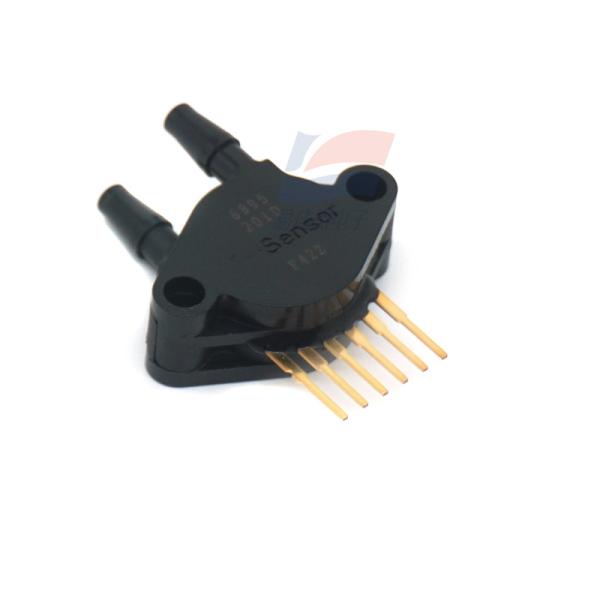

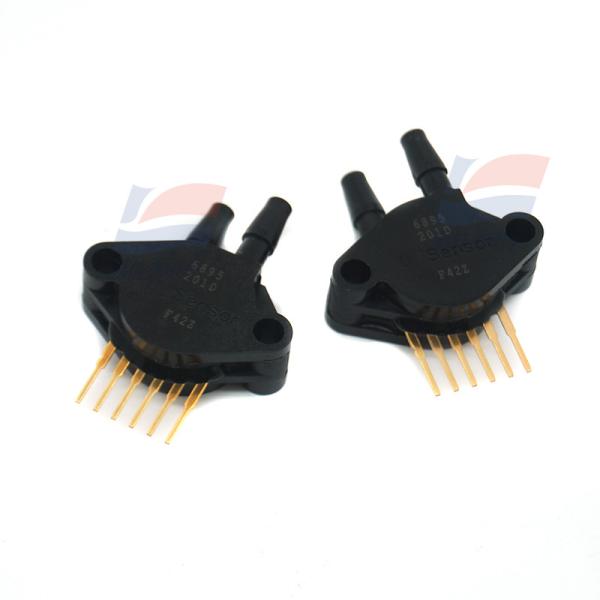

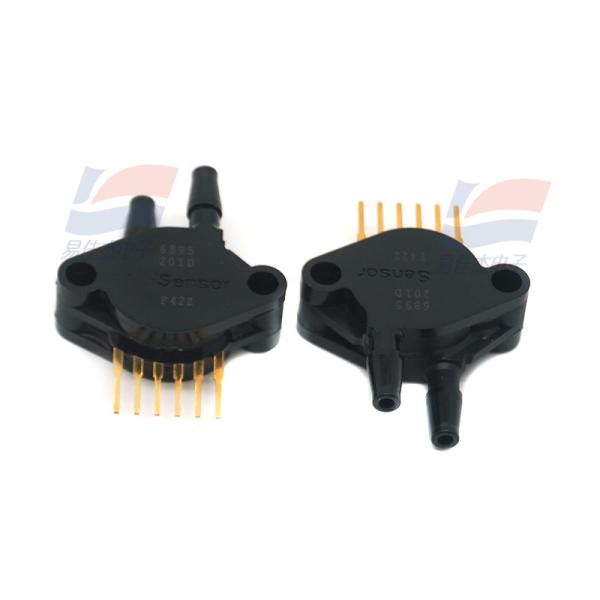

XGZP6895A Pressure Sensor -100kPa To 0.5kPa... 700kPa Is Used For Spirometer

Features:

Measurement range: -100kPa to 0.5kPa... 700kPa

· Differential pressure type, SIP package

It is suitable for non-corrosive gases

·· Wide temperature compensation range: 0-85℃

Standard voltage output or customized output

"Application field"

Medical fields such as ventilators, spirometers, negative pressure wound treatment, blood pressure monitoring, and sleep apnea treatment

Industrial fields such as air flow detection, heating, ventilation and air conditioning, pneumatic equipment, and pressure switches

Fields such as biological science, small household appliances, consumer electronics, sports and fitness equipment, fire-fighting equipment, and the Internet of Things

· Fields such as gas flow meters, gas emissions, and variable air volume regulation

"Overview"

The XGZP6895A pressure sensor is a pressure sensor suitable for differential pressure measurement. Its core component is a device that utilizes MEMS technology

The silicon piezoresistive pressure-sensitive chip of this product, the front and back sides of the pressure-sensitive chip sense different pressures through the pressure guide nozzles, thereby forming a pressure difference and achieving production

Generate a voltage signal proportional to the pressure difference. The built-in circuit chip digitally compensates for the sensor's offset, sensitivity, temperature drift and nonlinearity

Taking the supply voltage as a reference, a standard voltage signal that has been calibrated and temperature-compensated is generated.

The XGZP6895A pressure sensor is compact in size and easy to install. It can be calibrated to output signals according to user requirements and is widely used in medical care and industrial inspection

In fields such as measurement and sports fitness equipment.

"Performance indicators"

Power supply: (5±0.25) VDC or (3.3±0.165) VDC

Reference temperature: 25

Specifications:
