Specifications
Model Number :
6487180
Place of Origin :
CN
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Price :
Negotiable
Rated Voltage :
12V DC
Energy Storage :
42Wh - 48Wh
Discharge Cut-off Voltage :
10.5V
Dimensions :
L 153mm × W 90mm × H 21mm
Weight :
600g ± 50g
Color :
White/Silver/Blue (Customizable)
Description

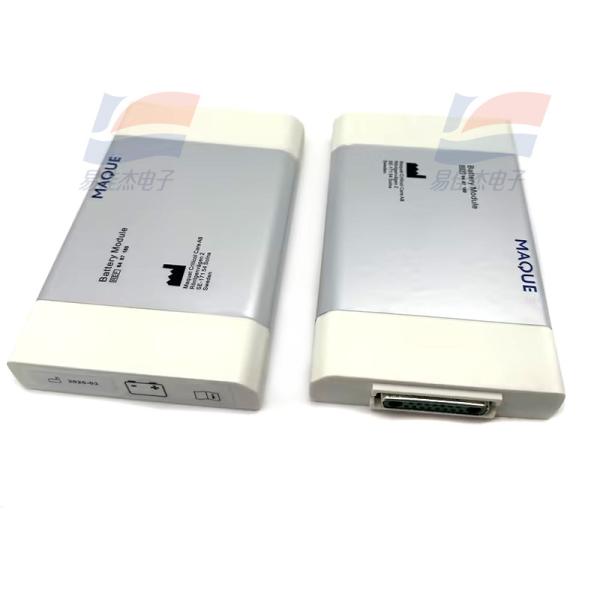

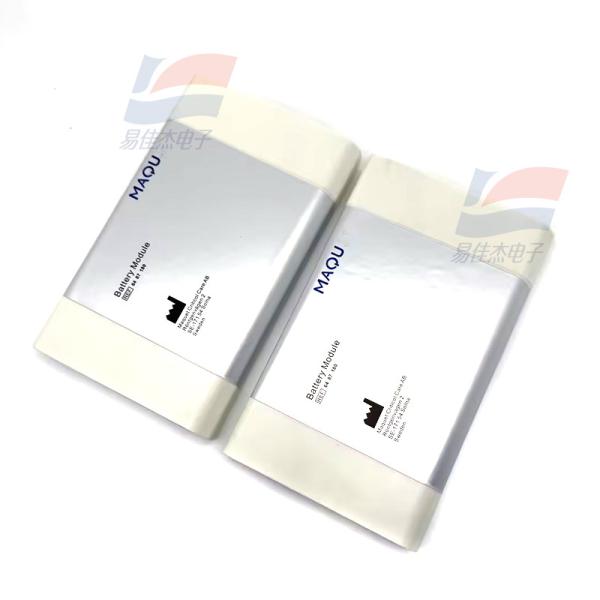

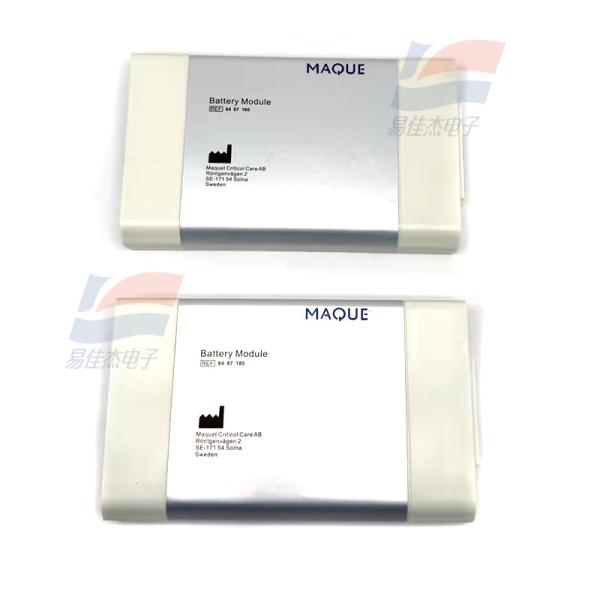

6487180 Nickel-metal-hydride Rechargeable Battery

Electrical Performance:

  • Rated Voltage: 12V
  • Rated Capacity: 3500mAh - 4000mAh (Capacity may vary slightly among different manufacturers. For example, RDBatteries' product is 4.0Ah, while an eBay listing shows 3500mAh.)

Physical Characteristics:

  • Dimensions: Approx. 153mm (L) × 90mm (W) × 21mm (H)
  • Weight: Approx. 600g
  • Color: Commonly available in white, silver, blue, etc.

Battery Type:

Nickel-Metal Hydride (Ni-MH)

Certifications:

Some products may be certified by CE, ROHS, ISO, etc. (e.g., Pray-Med Technology's product).

Cycle Life:

Approximately 500 cycles (Actual cycle life is affected by usage and charging methods.)

Compatible Devices:

  • Maquet Servo-I Ventilator
  • Maquet Servo-S Ventilator
  • Other compatible medical devices

Warranty:

Most products come with a 12-month warranty.

Usage Tips:

  1. New Battery Break-in: Charge the battery fully before first use. It may require 2-3 charge-discharge cycles to reach maximum capacity.
  2. Regular Maintenance: Perform a full charge-discharge cycle every 2-3 weeks to maintain battery health.
  3. Storage: Remove the battery from the device if unused for a long time, and store it in a cool, dry, and clean place.

This battery is specifically designed for Maquet ventilators, ensuring stable performance and compatibility with medical equipment requirements. Always follow the manufacturer's guidelines for safe operation.

Parameter

Details
Electrical Parameters
Rated Voltage 12V DC
Nominal Capacity 3500mAh - 4000mAh (e.g., 4.0Ah for RDBatteries model)
Energy Storage 42Wh - 48Wh
Discharge Cut - off Voltage 10.5V
Standard Charge Current 0.5A
Fast Charge Current (max.) 1.0A
Physical Specifications
Dimensions L 153mm × W 90mm × H 21mm
Weight 600g ± 50g
Case Material ABS Flame - retardant Plastic (UL94 V - 0)
Color White/Silver/Blue (Customizable)
Battery Type & Chemistry
Technology Nickel - Metal Hydride (Ni - MH)
Cell Configuration 10S1P (10 cells in series)
Performance Indicators
Cycle Life ≥500 cycles at 80% DOD (Depth of Discharge)
Self - discharge Rate <3% per month at 25°C
Operating Temperature - Discharge - 10°C ~ + 45°C
Operating Temperature - Charge 0°C ~ + 40°C
Storage Temperature - Short - term (≤3 months) - 20°C ~ + 35°C
Storage Temperature - Long - term (≥3 months) 0°C ~ + 25°C
Certification & Compliance

CE, ROHS, ISO 13485 (Medical Device Standard), UN38.3,

MSDS, IEC 62133 for Transport Safety
Compatibility

Ventilator Models: Maquet Servo - I, Servo - S, Servo - u;

Device Part Numbers: Compatible with OEM part # 6487180,

6487181, etc.
Warranty & Service

Warranty Period: 12 Months; Service Support: 24/7 Technical

Response,

Free Replacement for Defects
