ZP16-A Air-Quality Detection Module High Sensitivity Excellent Long-term Stability
ZP16-A Air-Quality Detection Module High Sensitivity Excellent Long-term Stability
Specifications
Model Number :
ZP16-A
Place of Origin :
CN
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
5000pcs
Delivery Time :
3-5work days
Packaging Details :
Paper box
Output :
UART(5V)
Working Current :
≤60mA
Warm-up Time :
3minutes
Operating Temperature :
0～50℃
Operating Humidity :
≤95％RH
Storage Temperature :
－20～60℃
Description

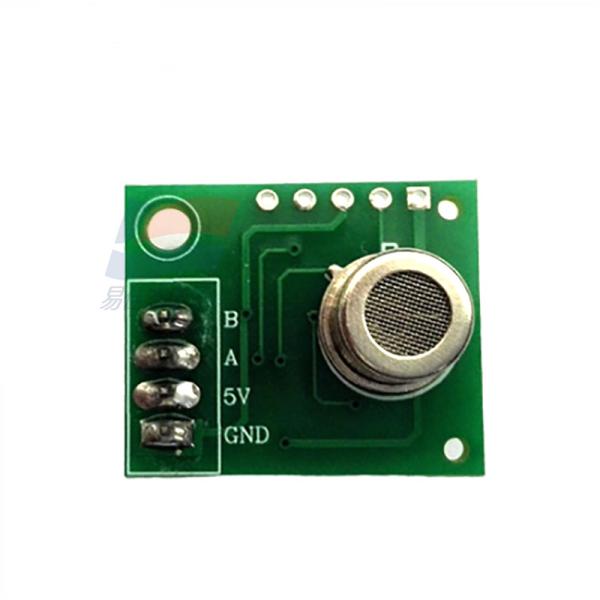

ZP16-A Air-Quality Detection Module


Description:


The ZP16-A air quality module uses an advanced chip thick film semiconductor gas sensitive element. The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence & etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.

Application:

Air cleaner, fresh-air system, intelligent integrated ceiling, air quality detector, ventilator, air-condition.

Features:

  • High sensitivity
  • Excellent long-term stability
  • Low power consumption
  • Long life
  • Calibrated before shipment
  • Convenient use

Specifications:

Model No. ZP16-A
Detection Gas formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, smoke of cigarette, essence &etc.
Physical Interface XH2.54-4P terminal sockets
Measurement range VOC:0-2.000mg/m3 CO2:350-2000ppm CH2O:0-1.000mg/m3
Working Voltage 5.0±0.2V DC(No voltage reverse connect protection)
Output UART(5V)
Working Current ≤60mA
Warm-up Time 3minutes
Operating Temperature 0～50℃
Operating Humidity ≤95％RH
Storage Temperature －20～60℃
Storage Humidity ≤60％RH
Size 24×20×15mm(L×W×H)
Weight ≤20g
sensitivity degradation ≤1%/year
