Product Description:

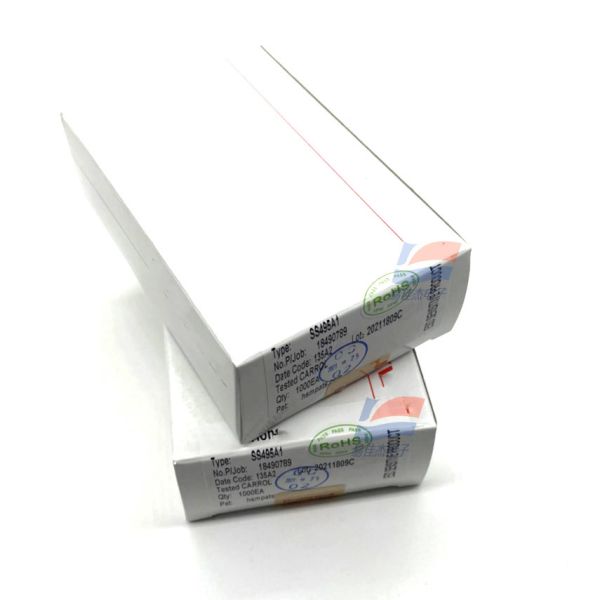

SS495A1 High-Precision linear Hall Sensor Is Used For Motor Drive And Control

Features:

SS400 series and SS500 series of lock-in position sensor integrated circuits are single-pole digital Hall effect sensor integrated circuits with low, medium and high magnetic field strengths. Flat TO-92 style, SOT-89B package. The digital current sink output SS400 series sensor integrated circuit is a small general-purpose digital Hall effect sensor. It operates by the magnetic field provided by a permanent magnet or an electromagnet, and is used to respond to the alternating north and south magnetic poles or only to the south magnetic pole. Bipolar latch magnets and unipolar magnets are available for selection.

The bandgap adjustment function helps ensure stable operation within the power supply voltage range of 3.8Vdc to 30Vdc. These sensors can achieve a continuous current output of 20 mA and can cycle at a current of up to 50 mA. Its ability to operate at 3.8V voltage can be used in many potential low-voltage applications.

Power supply voltage (DC) : 4.50V (min)

Output current 1.5 mA

The number of pins is 3

Output current (Max) : 10 mA

Operating temperature (Max) : 150 ℃

Operating temperature (Min) : -40 ℃

The power supply voltage is 4.5V to 10.5V

Power supply voltage (Max) : 10.5V

Power supply voltage (Min) : 4.5V

Packaging parameters

Installation method: Surface Mount

Number of pins: 3

Package TO 92

External dimensions

Height: 1.6mm

Package TO 92

Physical parameters

Operating temperature: -40℃ to 150℃ (TA)

Other

Product life cycle Active

Packaging method: Tape & Reel (TR)

Manufacturing application testing and Measurement, Sensing and Instrumentation, Motor Drive & Control, motor drive and control, Test & Measurement, Sensing & Instrumentation Sensing & Instrumentation, Motor Drive & Control, Test & Measurement

Conform to the standard

RoHS standard: RoHS Compliant

Lead Free standard

REACH SVHC standard No SVHC

REACH SVHC version 2017/07/07

Customs information

ECCN code EAR99

HTS code 8542390001 8542390000

Product Overview

SS495A-SP Hall effect sensor, linear, 1.5mA, TO-92, 3 pins, 4.5V, 10.5V

Hall effect sensor single-axis 3-SMD
