Product Description:

SS541AT Single-Pole Hall Effect Sensor Motor Control 1.5us Digital latch

Features:

SS400 series and SS500 series of lock-in position sensor integrated circuits are single-pole digital Hall effect sensor integrated circuits with low, medium and high magnetic field strengths. Flat TO-92 style, SOT-89B package. The digital current sink output SS400 series sensor integrated circuit is a small general-purpose digital Hall effect sensor. It operates by the magnetic field provided by a permanent magnet or an electromagnet, and is used to respond to the alternating north and south magnetic poles or only to the south magnetic pole. Bipolar latch magnets and unipolar magnets are available for selection.

The bandgap adjustment function helps ensure stable operation within the power supply voltage range of 3.8Vdc to 30Vdc. These sensors can achieve a continuous current output of 20 mA and can cycle at a current of up to 50 mA. Its ability to operate at 3.8V voltage can be used in many potential low-voltage applications.

The digital open-circuit collector current sink output can be easily connected and used with various electronic circuits.

To provide reliable products and maintain consistent quality, the SS400 series has been tested at both 25°C [75°F] and 125°C [257°F]. All the catalogue products in this series can operate at a temperature of 150°C [302°F].

For the sake of design flexibility, the following pins and packaging options are provided:

Straight pins, 14.99mm [0.59 inches] in length, packed in bulk or in roll-up boxes

Straight pins, 18.7mm [0.735 inches] long, bulk packaging

Formed pins, 14.99mm [0.59 inches] in length, packed in bulk or in roll form boxes

Potential application

Industry

High-frequency flow sensing in HVAC, water meters, fuel meters and gas utility meters

Tamper-proof detection in water meters, electricity meters and gas meters

Liquid level detection

Motor speed sensing

Position sensing in the cylinder

Rotational speed sensing in sports and rehabilitation equipment

Magnetic interruption in sports and rehabilitation equipment

Detection of missing/present in infusion pumps

The position sensing of the drawers in the medicine distribution cabinet

White products for sensing the tilt position in hospital beds

Detection of the positions of LIDS, doors and drawers

Fluid flow detection

Liquid level detection

Power supply voltage (DC) : 4.50V (min)

Output current 1.5 mA

The number of pins is 3

Output current (Max) : 10 mA

Operating temperature (Max) : 150 ℃

Operating temperature (Min) : -40 ℃

The power supply voltage is 4.5V to 10.5V

Power supply voltage (Max) : 10.5V

Power supply voltage (Min) : 4.5V

Packaging parameters

Installation method: Surface Mount

Number of pins: 3

Package TO 92

External dimensions

Height: 1.6mm

Package TO 92

Physical parameters

Operating temperature: -40℃ to 150℃ (TA)

Other

Product life cycle Active

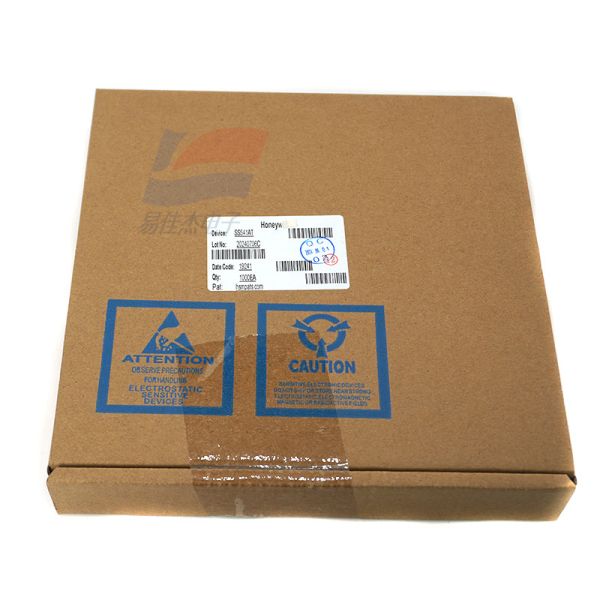

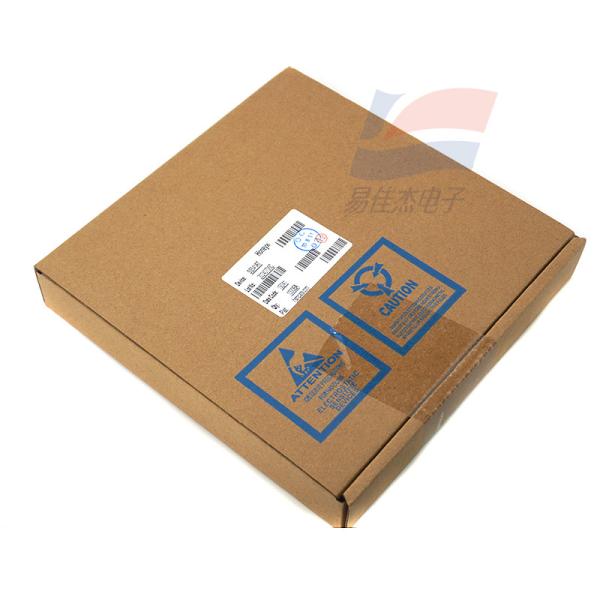

Packaging method: Tape & Reel (TR)

Manufacturing application testing and Measurement, Sensing and Instrumentation, Motor Drive & Control, motor drive and control, Test & Measurement, Sensing & Instrumentation Sensing & Instrumentation, Motor Drive & Control, Test & Measurement

Conform to the standard

RoHS standard: RoHS Compliant

Lead Free standard

REACH SVHC standard No SVHC

REACH SVHC version 2017/07/07

Customs information

ECCN code EAR99

HTS code 8542390001 8542390000

Product Overview

SS495A-SP Hall effect sensor, linear, 1.5mA, TO-92, 3 pins, 4.5V, 10.5V

Hall effect sensor single-axis 3-SMD
