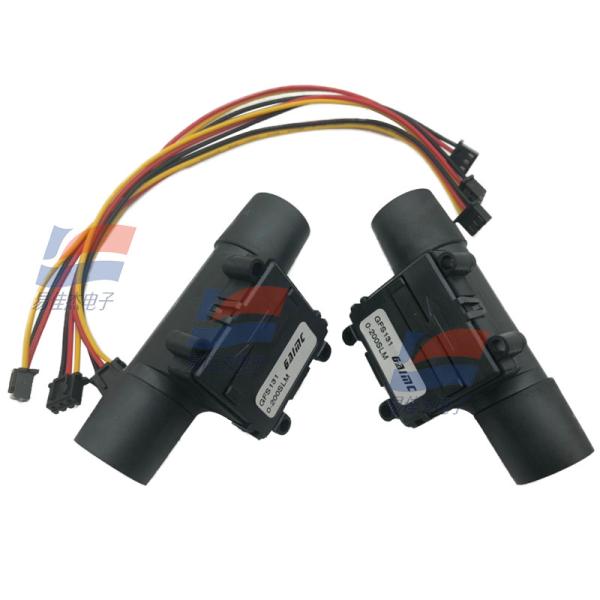

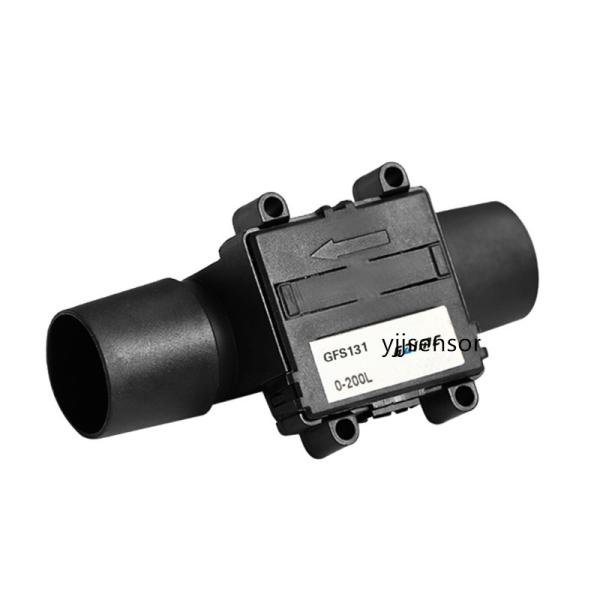

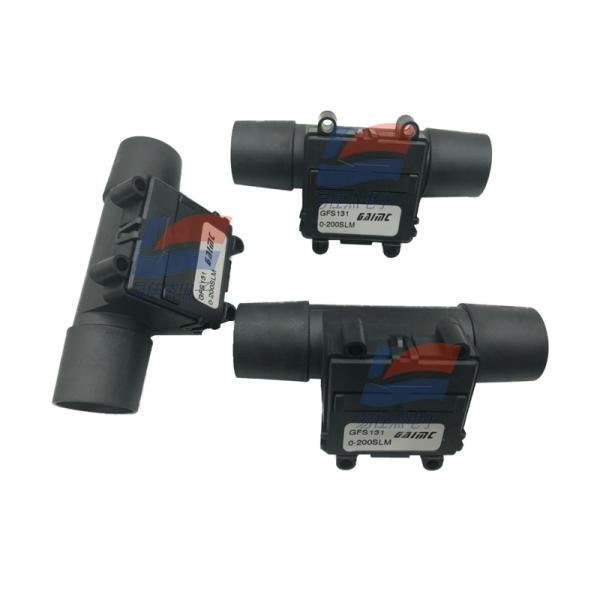

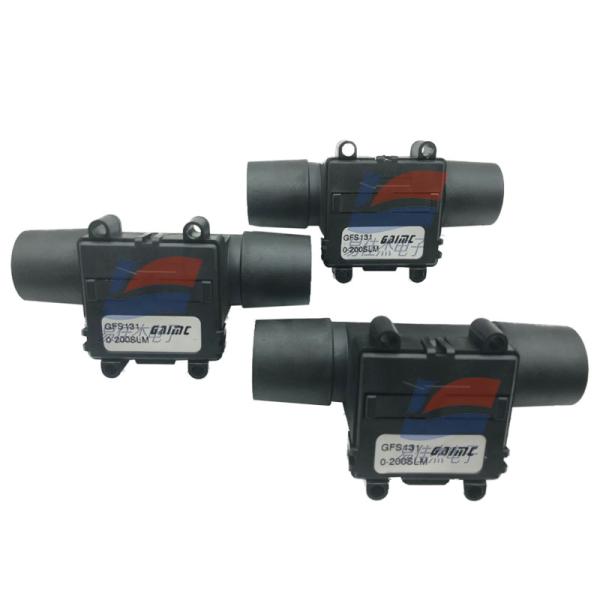

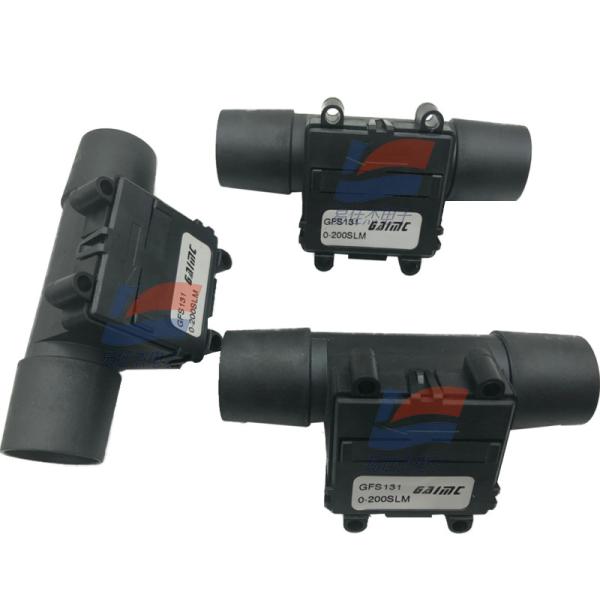

GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
Specifications
Brand Name :
YJJ
Model Number :
GFS131
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000/pcs/month
Delivery Time :
3-5workingdays
Packaging Details :
Standard Package
Measuring Range :
100、150、200、300SLM
Full Scale Output :
4.34-4.66V
Zero Output :
0.45-0.55V
Output Impedance :
1000Ω
Description

GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy

DESCRIPTION

GFS131 is a new generation micro-flow sensor specially developed by our company for medical ventilator. The thermodynamic
principle is used to detect the flow of the gas medium in the flow channel. The new generation of MEMS sensor chip technology is
used. It has the characteristics of high accuracy, fast response and good repeatability. It can accurately measure very small flows.
Built-in temperature sensor for temperature compensation calibration. At the same time, it has a linear analog voltage output, which
is convenient for the back end to read the data.

FEATURES

*MEMS Sensor chip technology
*Detection micro flow accurately
*High accuracy
*Quick response
*Good repeatability
*Temperature compensated calibrated
*Analog voltage output

PARAMETERS

Accuracy ±4%FS
Repeatability ±0.5%FS
Output Drift 0.12
Signal noise 10
Resistance 120
Power consumption 125

GFS131 Micro Flow Sensor MEMS For Medical Ventilator High Accuracy
