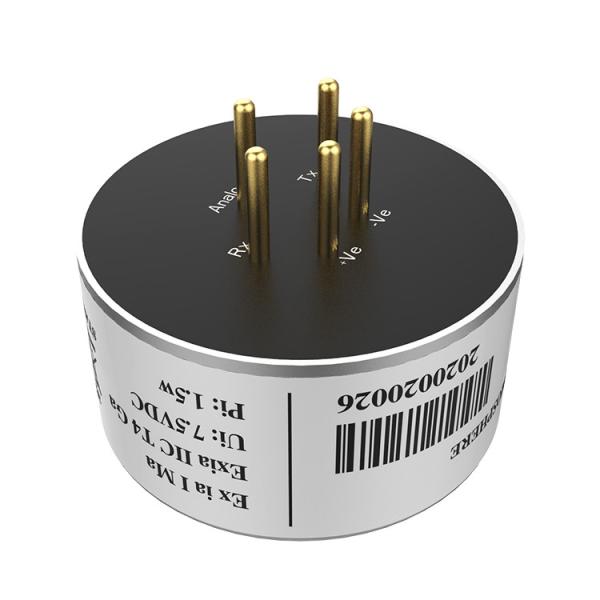

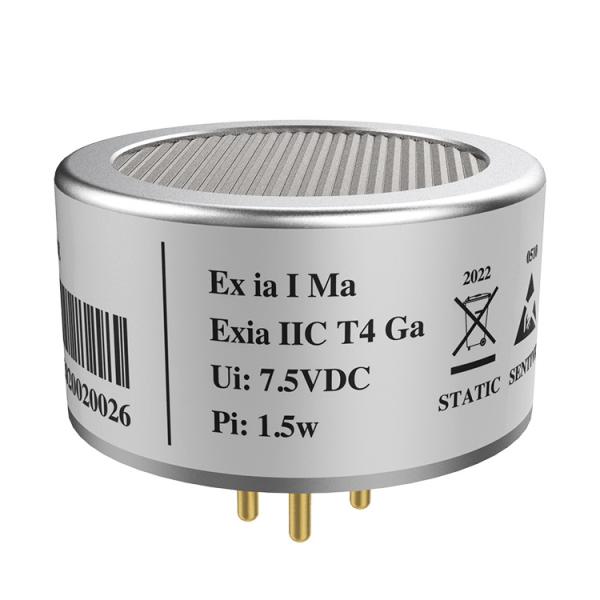

YJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas Sensor
YJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas Sensor
YJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas Sensor
YJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas Sensor
YJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas Sensor
YJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas Sensor
Specifications
Brand Name :
YJJ
Model Number :
G7 IR
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
5 to 8 working days
Packaging Details :
Box pack
Gas type and range :
SF6:0-1000ppm
Expandable :
2000ppm/3000ppm
Response time :
T 90 < 25 S (free diffusion)
Resolution :
1PPM
Description

Product Description:

NDIR Principle Of G7 IR Sulfur Hexafluoride SF6 Infrared Gas Sensor

Features:

G7 series gas detection sensors employ NDIR technology (non-dispersive infrared principle) to detect SF6 gas and are specifically designed for SF6 leak detection. Advanced infrared sensors feature linearity and repeatability, ensuring long-term stable and reliable measurements. The G7-SF6 sensor has a strong selectivity for gases and is not interfered by gases such as H2O, alcohol, and CO2. And the sensor has a long service life and requires no maintenance. The G7-SF6 sensor has a compact and small structure, and can be quickly and conveniently connected to the gas monitoring and control system. Meanwhile, the sensor is equipped with UART(TTL level) digital output and analog output options, facilitating users' connection with existing sulfur hexafluoride leak detection systems. When the sensor is preheated or in a measurement environment with condensation, it will prompt a fault reading, avoiding false alarms from the system. Normal readings will begin after the preheating is completed or after recovery from condensation.

Technical parameters

Gas type and range: SF6:0-1000ppm (expandable to 2000ppm/3000ppm)

Response time T 90 < 25 S (free diffusion)

The inspection accuracy is ≤±2%FS

Resolution: 1ppm

Performance characteristics

Non-dispersive Infrared Technology (NDIR)

Temperature compensation

Long service life and maintenance-free

The structure is compact in volume and convenient for system integration

Specifications:

Drive current 70mA
switch on current approx 140mA
Driving current 70mA
Outputs

2 Signal outputs (Open

collector

YJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas SensorYJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas SensorYJJ G7 IR NDIR Principle Of Sulfur Hexafluoride SF6 Infrared Gas Sensor
