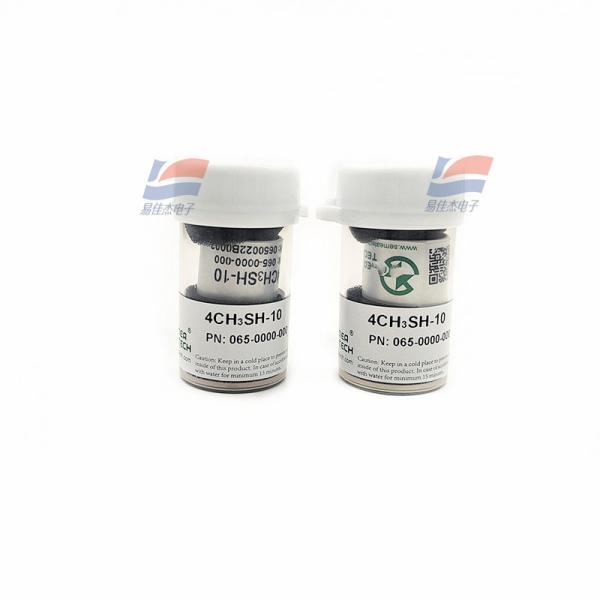

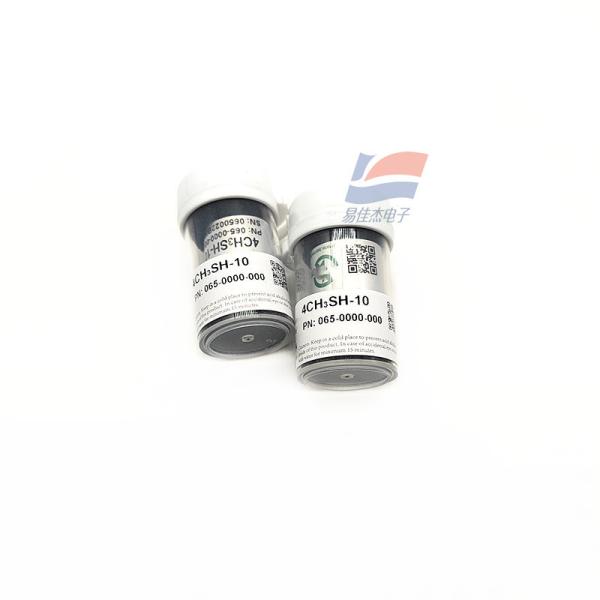

YJJ 4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas
YJJ 4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas
YJJ 4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas
YJJ 4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas
YJJ 4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas
YJJ 4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas
YJJ 4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas
YJJ 4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas
Specifications
Brand Name :
YJJ
Model Number :
4CH3SH-10 CLE-3611-400
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2200
Delivery Time :
5 to 8 working days
Packaging Details :
Box pack
Range :
10PPM
Maximum load :
20PPM
Sensitivity :
0.70 ± 0.15 mA/ppm
Baseline :
(20 ℃) < ± 0.2 mA
Resolution :
0.1PPM
Linearity :
Linear
Description

Product Description:

4CH3SH-10 CLE-3611-400 Electrochemical Methyl Mercaptan Sensor Is Used For The Detection Of CH3SH Gas

Features:

Product Description: The methyl mercaptan sensor from 0 to 10 ppm features excellent linearity, strong stability, and is based on electrochemical technology principles, ensuring safety and reliability

Performance characterization

Product model CLE-3611-400

The range is 10 ppm

Maximum load: 20 ppm

Sensitivity: 0.70 ± 0.15 mA/ppm

Baseline (20 ℃) < ± 0.2 mA

Baseline drift is equivalent to 0 to 0.6 ppm

(-20 to 50 ℃)

Resolution: 0.1 ppm

Response time (T90) : 35 seconds

Linearity Linear

Long-term stability <2% signal value per month

Working conditions

Operating temperature: -20 ℃ to 50℃

Operating humidity: 15-90%RH (no condensation)

The working pressure is 90 to 110 kPa

Bias voltage: 0 mV

Storage time: 6 months (in dedicated packaging boxes)

Storage temperature: 0℃ to 20℃

The service life in the air is 2 years

The warranty period is 12 months after delivery

Physical properties

It weighs about 5 grams

There is no requirement for orientation.

The influence of temperature

Specifications:

Storage temperature 0℃ to 20℃
Service life in the air 2 years
weighs about 5 grams
Bias voltage 0 mV
